Description
INS-INS-BALL VALVE. STRAIGHT PORT FLOW. ONE-LOK SINGLE FERRULE INSTRUMENTATION
Description
Variations (1)
NH-800L-SS-HL-1/2
$0.00Attribute: NH-800L-SS-HL-1/2 (08INS-08INS-B...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-800 (3000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | ONE-LOK INS |
| BODY SIZE | LARGE |
| INLET CONNECTION (1) | 1/2″ ONE-LOK INS |
| OUTLET CONNECTION (2) | 1/2″ ONE-LOK INS |
| VALVE PATTERN | STRAIGHT |
| HANDLE | BLACK NYLON |
| TREATMENT | STANDARD |
| ORIFICE | 7.1 |
| FLOW COEFFICIENT (CV) | 6.0 |

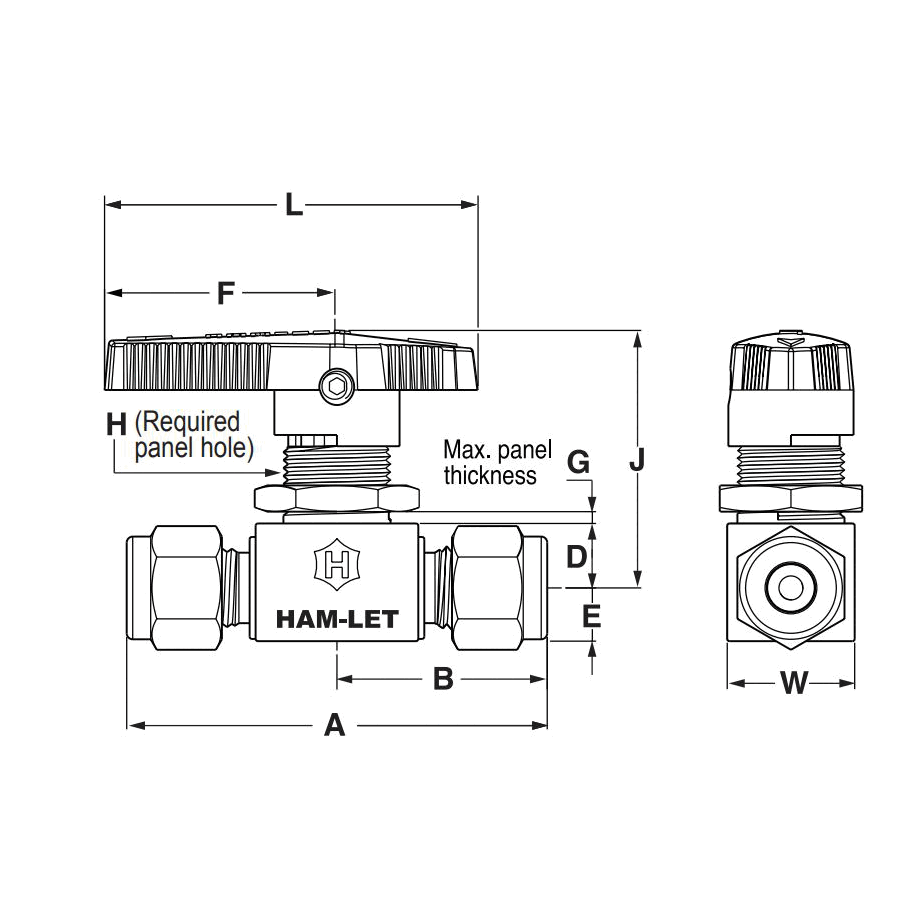

| A (MM) | 83.12 |
| B (MM) | 41.56 |
| C (MM) | 39.16 |
| D (MM) | 14.2 |
| E (MM) | 14.2 |
| F (MM) | 50.8 |
| L (MM) | 82.3 |
| G (MM) | 9.5 |
| H (MM) | 28.6 |
| J (MM) | 52.6 |
| W (MM) | 28.4 |
