NH-785-BSPT

Attribute: NH-785-SS-R-1/4-T-LD (04MBSPT-04...)

Stock Status: True

SERIES	H-785
MAXIMUM WORKING PRESSURE	2000PSI
BODY MATERIAL	STAINLESS STEEL
END CONNECTION	BSPT (R ISO TAPERED)
END CONNECTION SIZE	1/4″
INLET CONNECTION (1)	1/4″ MALE BSPT
OUTLET CONNECTION (2)	1/4″ FEMALE BPST
SEAT MATERIAL	MODIFIED PTFE
METAL LEVER HANDLE STANDARD	LOCKING DEVICE
TREATMENT	STANDARD
FLOW COEFFICIENT (CV)	1.35
ORIFICE (MM)	5.0

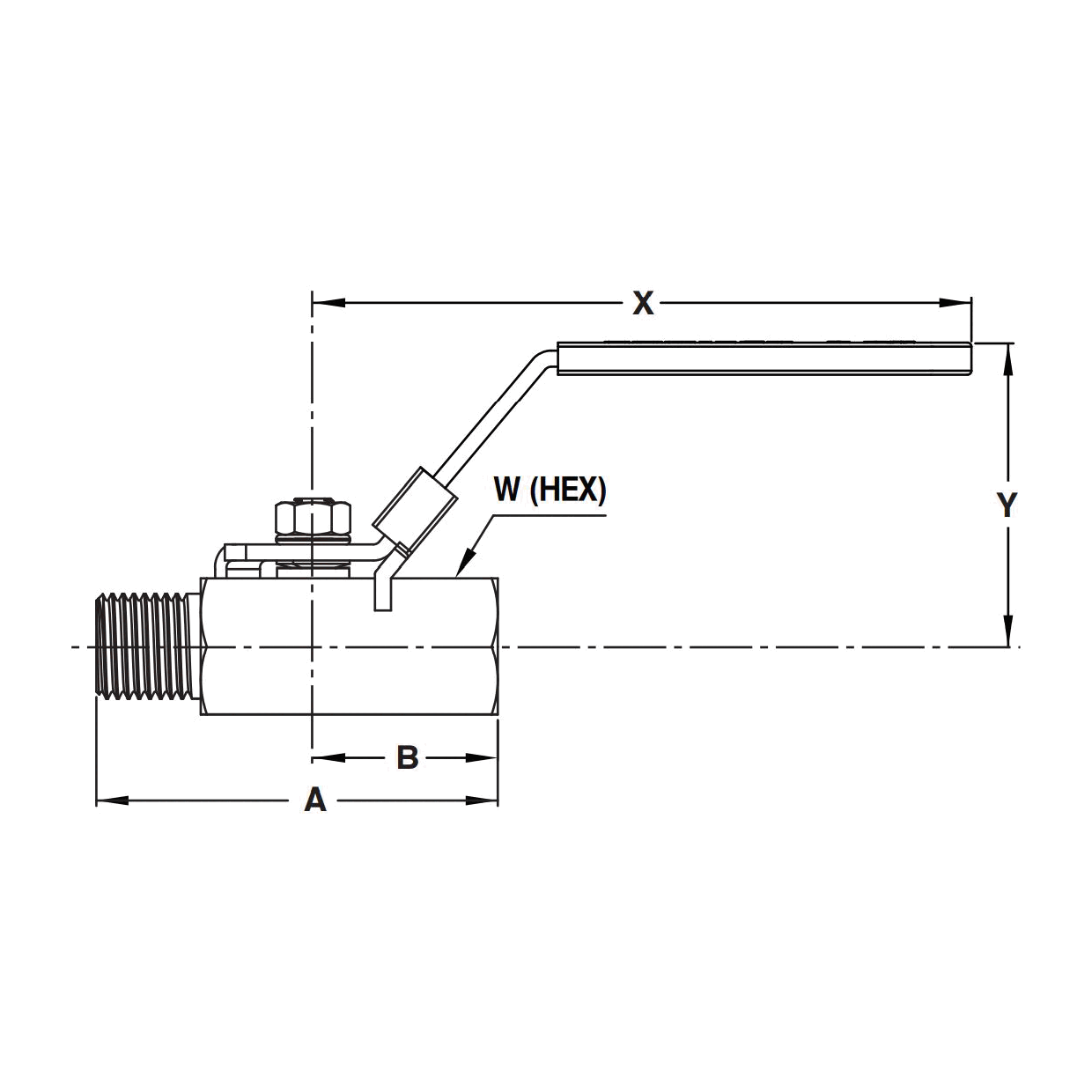

A OVERALL LENGTH (MM)	50.0
B (MM)	24.85
X (MM)	82.0
Y (MM)	38.0
W HEX (MM)	17.0
