Description
INS-INS-BALL VALVE STRAIGHT. GENERAL PURPOSE 2 WAY BALL VALVE. SINGLE FERRULE INS
Description
Variations (1)
NH-700-SS-HL-3/8-T-LD
$0.00Attribute: NH-700-SS-HL-3/8-T-LD (06INS-06I...)
Stock Status: True
| SERIES | H-700 |
|---|---|
| MAXIMUM WORKING PRESSURE | 2000PSI |
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | ONE-LOK INS |
| END CONNECTION SIZE | 3/8″ |
| INLET CONNECTION (1) | 3/8″ ONE-LOK INS |
| OUTLET CONNECTION (2) | 3/8″ ONE-LOK INS |
| SEAT MATERIAL | MODIFIED PTFE |
| METAL LEVER HANDLE STANDARD | LOCKING DEVICE |
| TREATMENT | STANDARD |
| FLOW COEFFICIENT (CV) | 2.5 |
| ORIFICE (MM) | 7.2 |

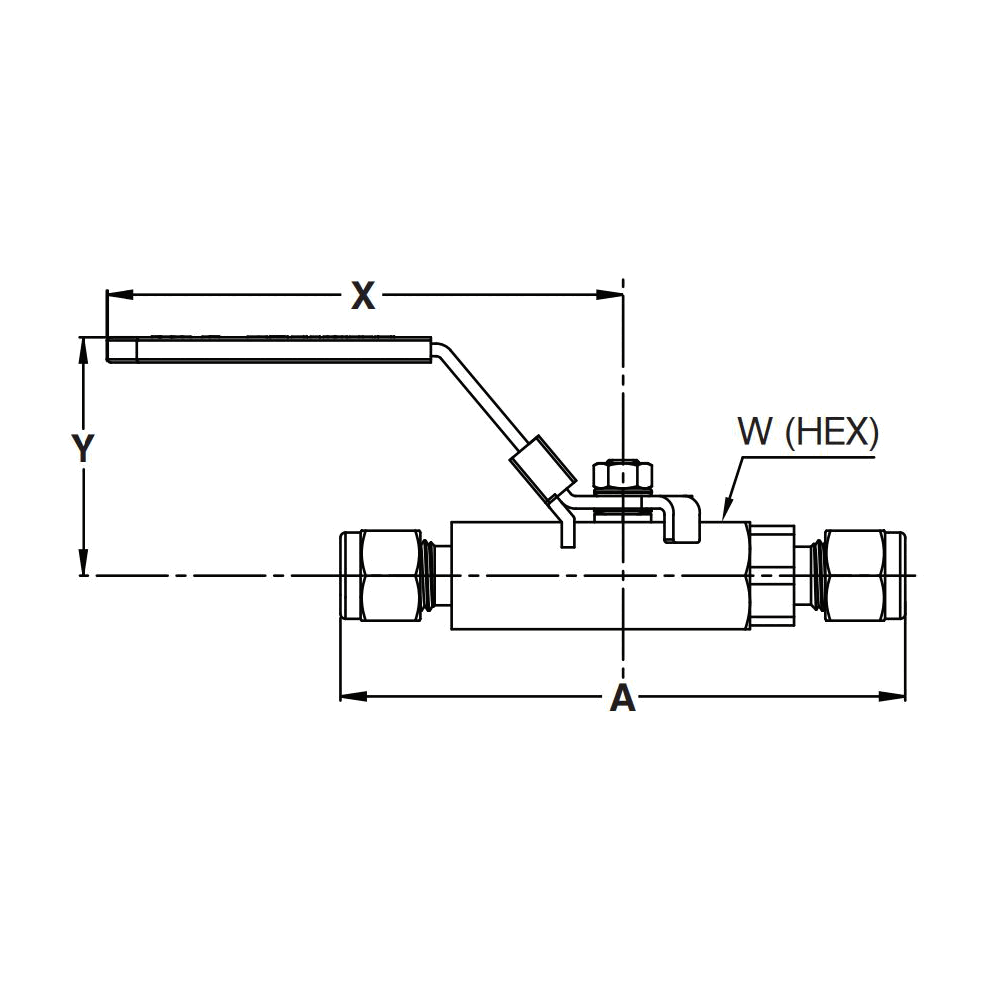

| A OVERALL LENGTH (MM) | 90.0 |
| X (MM) | 82.0 |
| Y (MM) | 40.0 |
| W HEX (MM) | 21.0 |
