MP-INS-BALL VALVE STRAIGHT FLOW, HIGH PERFORMANCE BALL VALVE
Description
Variations (1)
NH-6895-SS-NL-1/4-PSS
$0.00Attribute: NH-6895-SS-NL-1/4-PSS (04MP-04IN...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6895 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | NPT / LET-LOK INS |
| END CONNECTION SIZE | 1/4″ |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 4.8 |

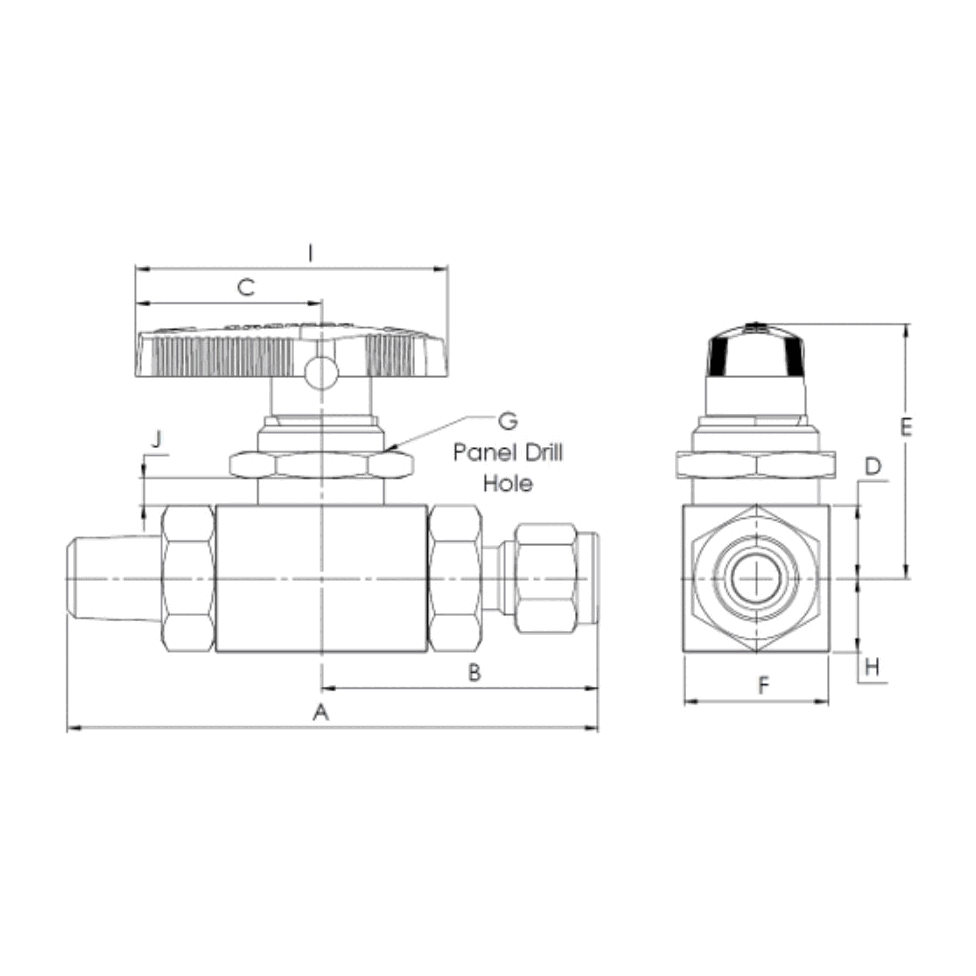

| A (MM) | 80.1 |
| B (MM) | 41.8 |
| C (MM) | 31.0 |
| D (MM) | 11.1 |
| E (MM) | 38.85 |
| F (MM) | 22.2 |
| G (MM) | 19.3 |
| H (MM) | 11.1 |
| I (MM) | 6.5 |
| J (MM) | 50.0 |
General Attributes
| Connections | NPT, Other |
|---|---|
| Shape | Straight |
