Description
INS-INS-BALL VALVE, 2 PORT HIGH PERFORMANCE BALL VALVE
Description
Variations (1)
NH-6800-SS-HL-1/2-PSS
$0.00Attribute: NH-6800-SS-HL-1/2-PSS (08INS-08I...)
Stock Status: True
| SERIES / MAX WORKING PRESSURE | H-6800 (6000PSI) |
|---|---|
| BODY MATERIAL | STAINLESS STEEL |
| END CONNECTION | ONE-LOK INS |
| END CONNECTION SIZE | 1/2″ |
| SEAT MATERIAL | MODIFIED PTFE |
| HANDLE | BLACK NYLON |
| VALVE PATTERN | STRAIGHT |
| TREATMENT | STANDARD |
| APPROVAL | STANDARD |
| ORIFICE | 10.3 |
| FLOW COEFFICIENT (CV) | 12.0 |

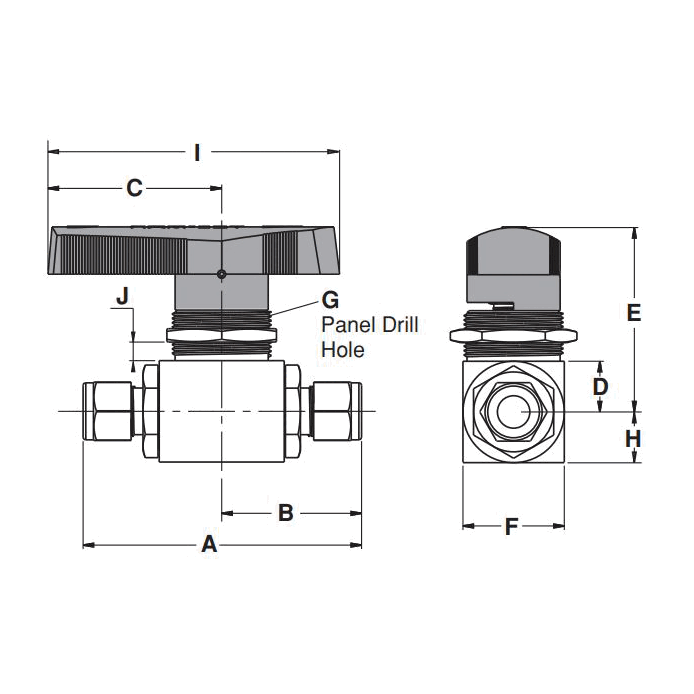

| A (MM) | 102.5 |
| B (MM) | 51.25 |
| C (MM) | 50.0 |
| D (MM) | 16.0 |
| E (MM) | 50.0 |
| F (MM) | 32.0 |
| G (MM) | 20.8 |
| H (MM) | 16.0 |
| I (MM) | 80.0 |
| J (MM) | 6.5 |
