Description
FP-FP-INLINE FILTER STRAIGHT
Description
Variations (1)
NH-610-SS-N-1/4-40
$0.00Attribute: NH-610-SS-N-1/4-40 (04FP-04FP-IN...)
Stock Status: True
| SERIES | H-610 |
|---|---|
| MAX WORKING PRESSURE | 6000PSI |
| END CONNECTION | NPT |
| BODY TYPE / PATTERN | IN-LINE FILTER |
| MATERIAL | STAINLESS STEEL |
| INLET CONNECTION (1) | 1/4″ FEMALE NPT |
| OUTLET CONNECTION (2) | 1/4″ FEMALE NPT |
| FILTER LEVEL | 40 MICRON |
| BYPASS/PURGE PORT OPTION | N |
| SPARE KIT OPTION | N |
| OXYGEN CLEAN OPTION | N |
| ORIFICE (MM) | 4.75 |

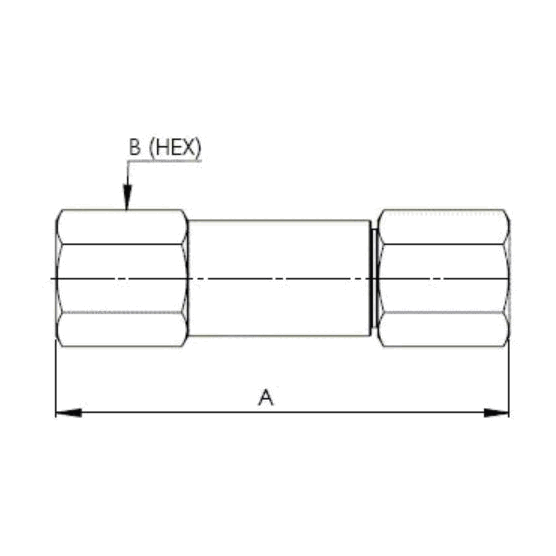

| L OVERALL LENGTH (MM) | 73.0 |
| K HEX (MM) | 19.05 |
General Attributes
| Connections | NPT, Other |
|---|---|
| Shape | Straight |
