Description
MP-FP CHECK VALVE STRAIGHT. GENERAL PURPOSE, FIXED CRACKING PRESSURE.
Description
Variations (1)
NH-485-SS-N-1/4-25PSI
$0.00Attribute: NH-485-SS-N-1/4-25PSI (04MP-04FP...)
Stock Status: True
| SERIES | H-485 |
|---|---|
| MAXIMUM WORKING PRESSURE | 3000PSI |
| FIXED CRACKING PRESSURE | 25PSI |
| MATERIAL | STAINLESS STEEL |
| PATTERN | STRAIGHT |
| SEAL MATERIAL | FLUOROCARBON FKM |
| TREATMENT | STANDARD |
| INLET CONNECTION (1) | 1/4″ MALE NPT |
| OUTLET CONNECTION (2) | 1/4″ FEMALE NPT |
| FLOW COEFFICIENT (CV) | 0.47 |

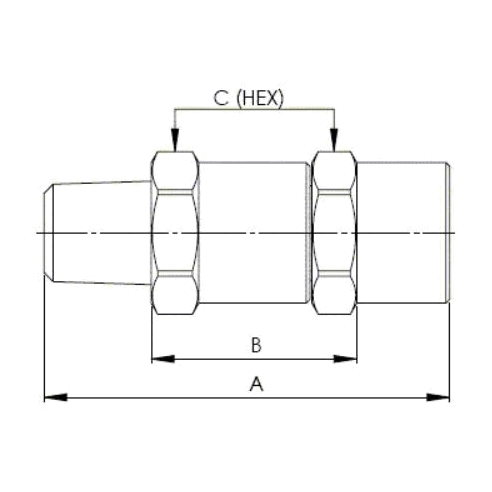

| A OVERALL LENGTH (MM) | 53.7 |
| B (MM) | 27.3 |
| C HEX (MM) | 19.05 |
| REPLACEMENT SPRING KIT | NZ-400-SPK-3/8-25PSI |
| REPLACEMENT O-RING KIT | NZ-400-SK-3/8-VI |
General Attributes
| Connections | NPT |
|---|---|
| Shape | Straight |
