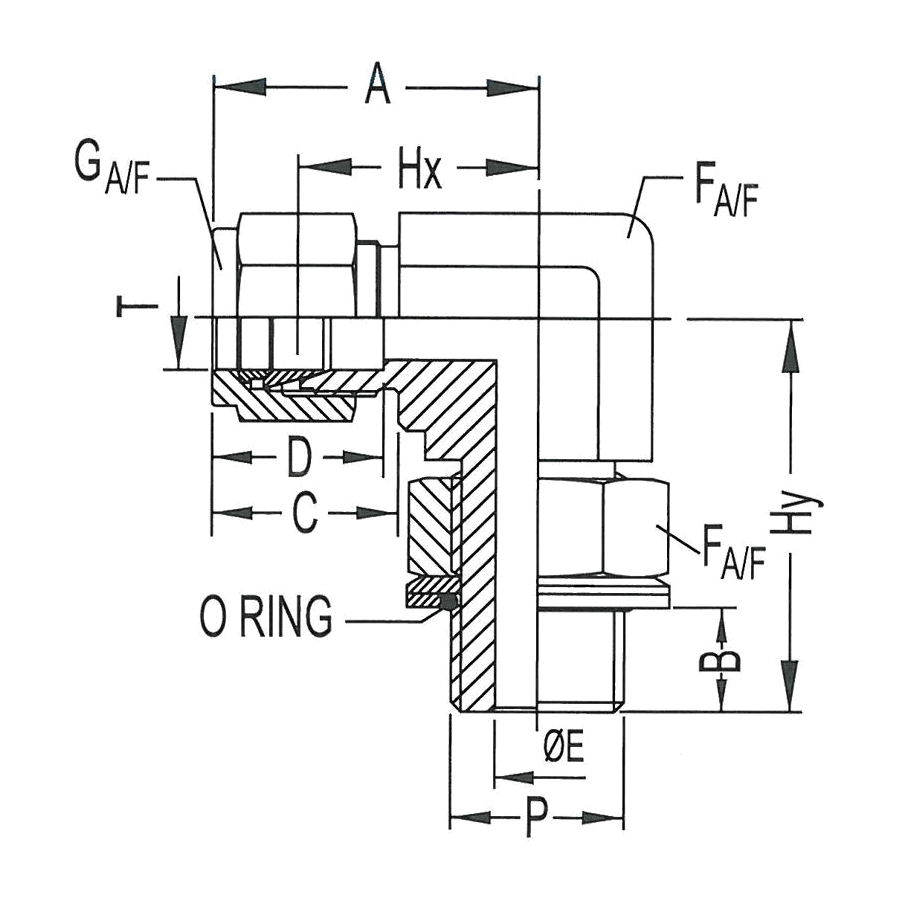

N7202-B

Attribute: N7202-04-02-NWO-B (04IN-02MBSPP ...)

Stock Status: True

T TUBE OD	1/4
P ISO MALE	1/8
A	1.06
B	0.32
C	0.70
D	0.60
E MIN.	0.16
F	0.55
FX A/F	0.56
G A/F	0.56
HX	0.77
HY	1.04
U	0.68
O RING PART NO.	9300-02
MATERIAL	BRASS

Attribute: N7202-04-04-NWO-B (04IN-04MBSPP ...)

Stock Status: True

T TUBE OD	1/4
P ISO MALE	1/4
A	1.14
B	0.36
C	0.70
D	0.60
E MIN.	0.19
F	0.63
FX A/F	0.75
G A/F	0.56
HX	0.85
HY	1.27
U	0.90
O RING PART NO.	9300-04
MATERIAL	BRASS
