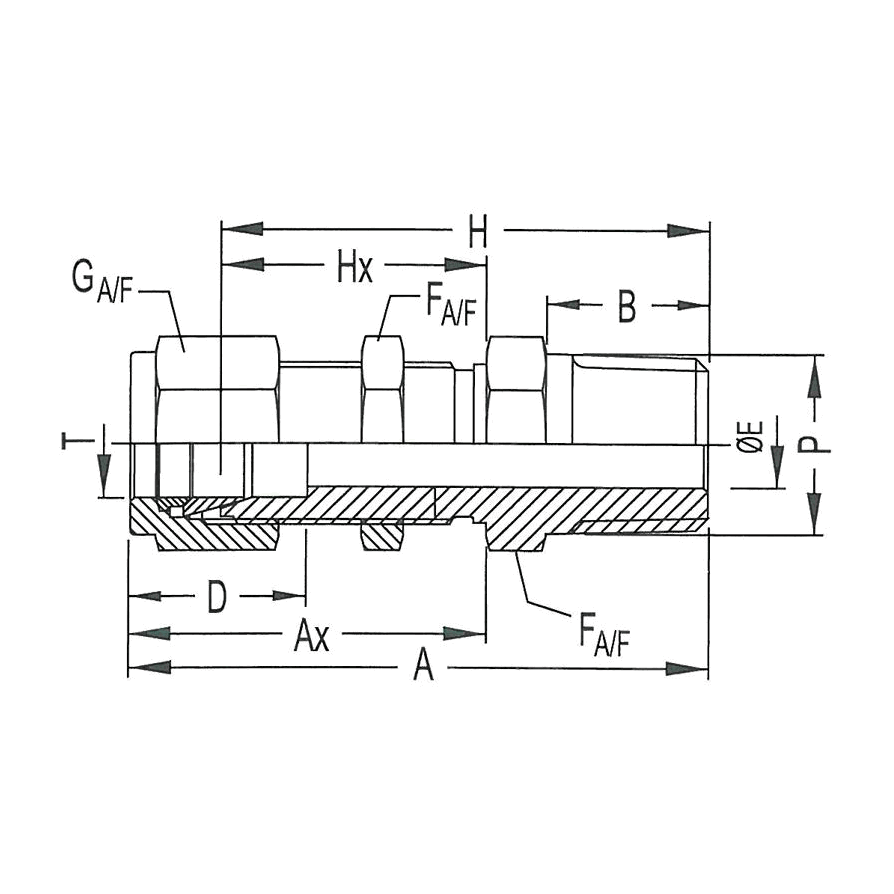

N2706-LN-B

Attribute: N2706-LN-04-04-B (04INBH-04MNPT ...)

Stock Status: True

T TUBE OD	1/4
P NPT MALE	1/4
A M.M.	54.1
AX M.M.	33.5
B M.M.	14.3
D M.M.	15.3
E MIN. M.M.	4.8
F A/F M.M.	16
G A/F M.M.	14
H M.M.	46.7
HX M.M.	26.2
PANEL HOLE DRILL SIZE M.M.	11.5
MAX. PANEL THICKNESS M.M.	10.2
MATERIAL	BRASS

Attribute: N2706-LN-06-06-B (06INBH-06MNPT ...)

Stock Status: True

T TUBE OD	3/8
P NPT MALE	3/8
A M.M.	57.4
AX M.M.	36.8
B M.M.	14.3
D M.M.	16.8
E MIN. M.M.	7.1
F A/F M.M.	19
G A/F M.M.	17
H M.M.	50.0
HX M.M.	29.5
PANEL HOLE DRILL SIZE M.M.	14.7
MAX. PANEL THICKNESS M.M.	11.2
MATERIAL	BRASS

Attribute: N2706-LN-12-12-B (12INBH-12MNPT ...)

Stock Status: True

T TUBE OD	3/4
P NPT MALE	3/4
A M.M.	76.2
AX M.M.	47.5
B M.M.	19.1
D M.M.	24.4
E MIN. M.M.	15.8
F A/F M.M.	30
G A/F M.M.	28.5
H M.M.	66.9
HX M.M.	37.4
PANEL HOLE DRILL SIZE M.M.	25.8
MAX. PANEL THICKNESS M.M.	16.8
MATERIAL	BRASS

Attribute: N2706-LN-16-16-B (16INBH-16MNPT ...)

Stock Status: True

T TUBE OD	1
P NPT MALE	1
A M.M.	93.2
AX M.M.	57.4
B M.M.	23.9
D M.M.	31.2
E MIN. M.M.	22.3
F A/F M.M.	41
G A/F M.M.	38
H M.M.	81.0
HX M.M.	45.2
PANEL HOLE DRILL SIZE M.M.	33.7
MAX. PANEL THICKNESS M.M.	19.0
MATERIAL	BRASS
