N2705-LN-B

Attribute: N2705-LN-04-02-B (04INBH-02FNPT ...)

Stock Status: True

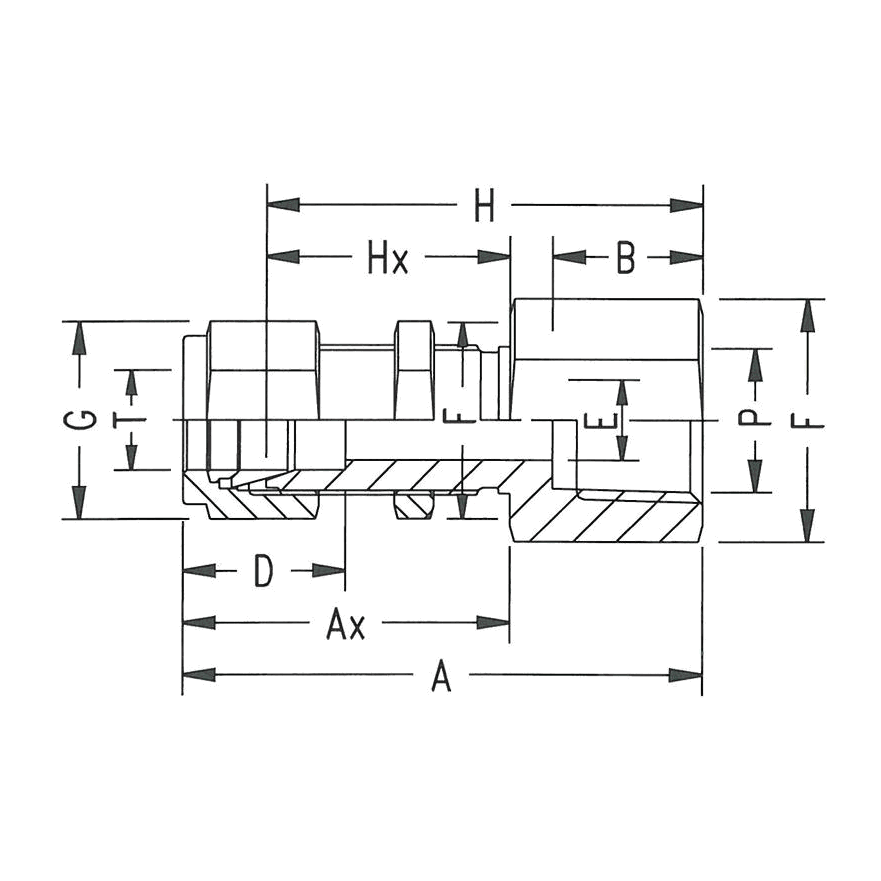

T TUBE OD	1/4
P NPT FEMALE	1/8
A M.M.	47.0
AX M.M.	33.5
B M.M.	10.4
D M.M.	15.3
E MIN. M.M.	4.8
F A/F M.M.	16
G A/F M.M.	14
H M.M.	39.7
HX M.M.	26.2
PANEL HOLE DRILL SIZE M.M.	11.5
MAX. PANEL THICKNESS M.M.	10.2
MATERIAL	BRASS

Attribute: N2705-LN-06-04-B (06INBH-04FNPT ...)

Stock Status: True

T TUBE OD	3/8
P NPT FEMALE	1/4
A M.M.	54.8
AX M.M.	36.8
B M.M.	15.0
D M.M.	16.8
E MIN. M.M.	7.1
F A/F M.M.	19
G A/F M.M.	17
H M.M.	47.5
HX M.M.	29.5
PANEL HOLE DRILL SIZE M.M.	14.7
MAX. PANEL THICKNESS M.M.	11.2
MATERIAL	BRASS

Attribute: N2705-LN-08-06-B (08INBH-06FNPT ...)

Stock Status: True

T TUBE OD	1/2
P NPT FEMALE	3/8
A M.M.	61.7
AX M.M.	41.9
B M.M.	15.0
D M.M.	22.9
E MIN. M.M.	10.4
F A/F M.M.	22
G A/F M.M.	22
H M.M.	51.6
HX M.M.	31.0
PANEL HOLE DRILL SIZE M.M.	19.5
MAX. PANEL THICKNESS M.M.	12.7
MATERIAL	BRASS
