N2700-LNRU-B

Attribute: N2700-LN-06-04-B (06INBH-04IN Br...)

Stock Status: True

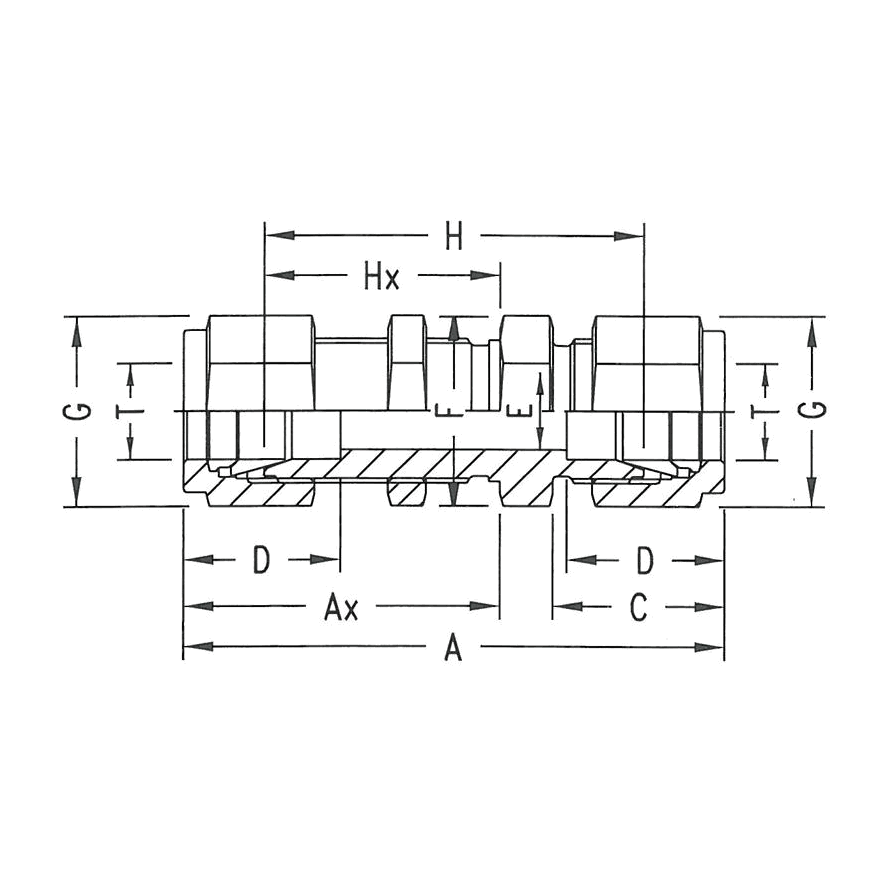

T TUBE OD	3/8
TX TUBE OD	1/4
A M.M.	60.7
AX M.M.	36.6
CX M.M.	17.8
D M.M.	16.8
DX M.M.	15.3
E MIN. M.M.	4.8
F A/F M.M.	22
G A/F M.M.	17
GX A/F M.M.	14
H M.M.	46.0
HX M.M.	29.5
PANEL HOLE DRILL SIZE M.M.	14.6
MAX. PANEL THICKNESS M.M.	11.2
MATERIAL	BRASS
