N2700-LN-B

Attribute: N2700-LN-02-02-B (02INBH-02IN Br...)

Stock Status: True

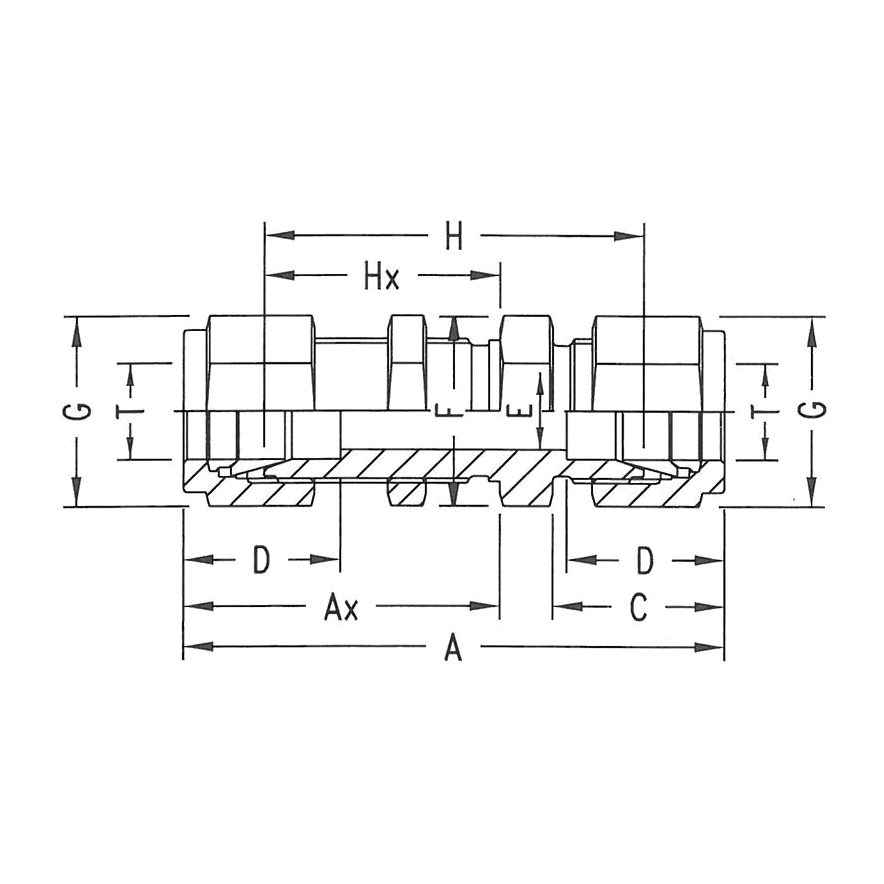

T TUBE OD	1/8
A M.M.	51.3
AX M.M.	31.2
C M.M.	15.3
D M.M.	12.7
E MIN. M.M.	2.4
F A/F M.M.	11
G A/F M.M.	11
H M.M.	38.1
HX M.M.	24.6
PANEL HOLE DRILL SIZE M.M.	8.3
MAX. PANEL THICKNESS M.M.	12.7
MATERIAL	BRASS

Attribute: N2700-LN-04-04-B (04INBH-04IN Br...)

Stock Status: True

T TUBE OD	1/4
A M.M.	57.6
AX M.M.	33.6
C M.M.	17.8
D M.M.	15.3
E MIN. M.M.	4.8
F A/F M.M.	16
G A/F M.M.	14
H M.M.	43.0
HX M.M.	26.2
PANEL HOLE DRILL SIZE M.M.	11.5
MAX. PANEL THICKNESS M.M.	10.1
MATERIAL	BRASS

Attribute: N2700-LN-06-06-B (06INBH-06IN Br...)

Stock Status: True

T TUBE OD	3/8
A M.M.	62.2
AX M.M.	36.8
C M.M.	19.3
D M.M.	7.1
E MIN. M.M.	7.1
F A/F M.M.	22
G A/F M.M.	17
H M.M.	47.5
HX M.M.	29.5
PANEL HOLE DRILL SIZE M.M.	14.6
MAX. PANEL THICKNESS M.M.	11.1
MATERIAL	BRASS

Attribute: N2700-LN-08-08-B (08INBH-08IN Br...)

Stock Status: True

T TUBE OD	1/2
A M.M.	71.1
AX M.M.	41.9
C M.M.	21.8
D M.M.	22.9
E MIN. M.M.	10.4
F A/F M.M.	24
G A/F M.M.	22
H M.M.	50.8
HX M.M.	31.8
PANEL HOLE DRILL SIZE M.M.	19.5
MAX. PANEL THICKNESS M.M.	12.7
MATERIAL	BRASS
