N2606-B

Attribute: N2606-04-02-04-B (04IN-02FNPT-04...)

Stock Status: True

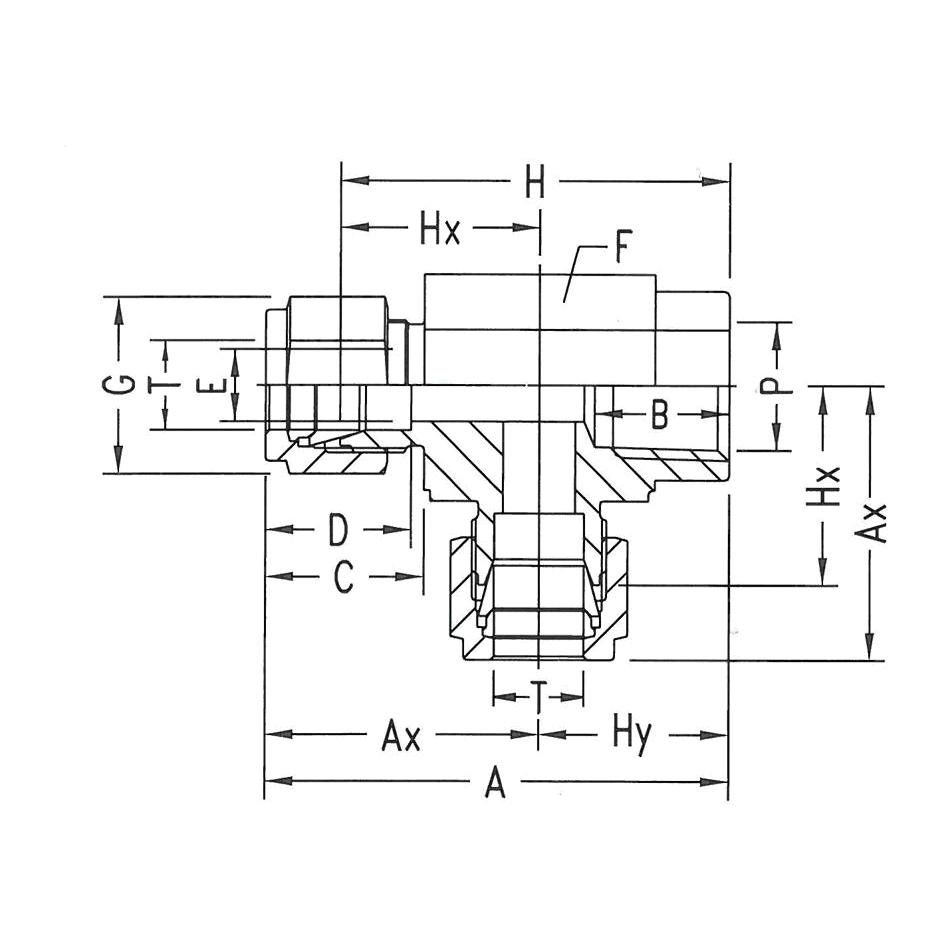

T TUBE OD	1/4
P NPT FEMALE	1/8
A M.M.	45.9
AX M.M.	26.9
B M.M.	10.4
C M.M.	17.8
D M.M.	15.3
E MIN. M.M.	4.8
F A/F M.M.	14
G A/F M.M.	14
H M.M.	38.6
HX M.M.	19.6
HY M.M.	19.0
MATERIAL	BRASS

Attribute: N2606-06-04-06-B (06IN-04FNPT-06...)

Stock Status: True

T TUBE OD	3/8
P NPT FEMALE	1/4
A M.M.	53.6
AX M.M.	31.2
B M.M.	15.0
C M.M.	19.3
D M.M.	16.8
E MIN. M.M.	7.1
F A/F M.M.	19
G A/F M.M.	17
H M.M.	46.3
HX M.M.	23.9
HY M.M.	22.4
MATERIAL	BRASS

Attribute: N2606-08-08-08-B (08IN-08FNPT-08...)

Stock Status: True

T TUBE OD	1/2
P NPT FEMALE	1/2
A M.M.	67.4
AX M.M.	38.9
B M.M.	19.8
C M.M.	21.8
D M.M.	22.9
E MIN. M.M.	10.4
F A/F M.M.	27
G A/F M.M.	22
H M.M.	57.2
HX M.M.	28.7
HY M.M.	28.5
MATERIAL	BRASS
