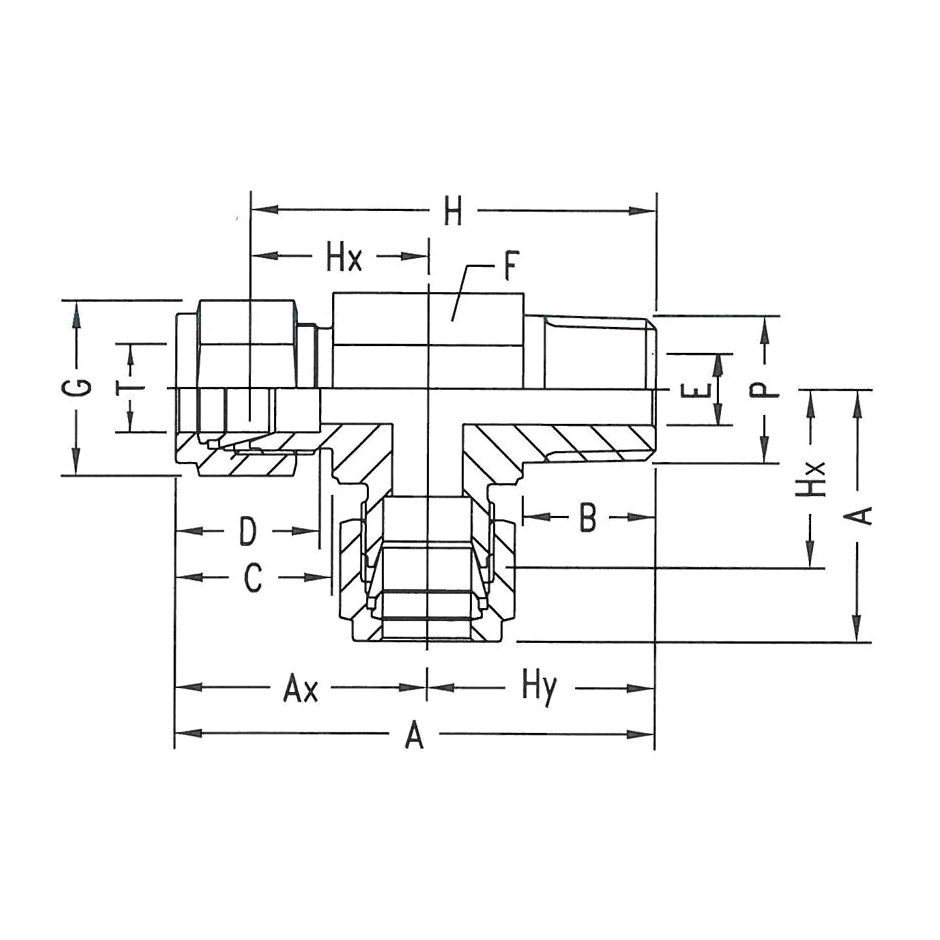

N2605-B

Attribute: N2605-02-02-02-B (02IN-02MNPT-02...)

Stock Status: True

T TUBE OD	1/8
P NPT MALE	1/8
A M.M.	41.4
AX M.M.	23.6
B M.M.	9.6
C M.M.	15.3
D M.M.	12.7
E MIN. M.M.	2.4
F M.M.	11
G A/F M.M.	11
H A/F M.M.	34.8
HX M.M.	17.0
HY M.M.	17.8
MATERIAL	BRASS

Attribute: N2605-04-02-04-B (04IN-02MNPT-04...)

Stock Status: True

T TUBE OD	1/4
P NPT MALE	1/8
A M.M.	45.7
AX M.M.	26.9
B M.M.	9.6
C M.M.	17.8
D M.M.	15.3
E MIN. M.M.	4.8
F M.M.	14
G A/F M.M.	14
H A/F M.M.	38.4
HX M.M.	19.6
HY M.M.	18.8
MATERIAL	BRASS

Attribute: N2605-04-04-04-B (04IN-04MNPT-04...)

Stock Status: True

T TUBE OD	1/4
P NPT MALE	1/4
A M.M.	50.3
AX M.M.	26.9
B M.M.	14.3
C M.M.	17.8
D M.M.	15.3
E MIN. M.M.	4.8
F M.M.	14
G A/F M.M.	14
H A/F M.M.	43
HX M.M.	19.6
HY M.M.	23.4
MATERIAL	BRASS

Attribute: N2605-06-04-06-B (06IN-04MNPT-06...)

Stock Status: True

T TUBE OD	3/8
P NPT MALE	1/4
A M.M.	55.9
AX M.M.	30.5
B M.M.	14.3
C M.M.	19.3
D M.M.	16.8
E MIN. M.M.	7.1
F M.M.	17
G A/F M.M.	17
H A/F M.M.	48.5
HX M.M.	23.1
HY M.M.	25.4
MATERIAL	BRASS

Attribute: N2605-06-06-06-B (06IN-06MNPT-06...)

Stock Status: True

T TUBE OD	3/8
P NPT MALE	3/8
A M.M.	57.4
AX M.M.	31.2
B M.M.	14.3
C M.M.	19.3
D M.M.	16.8
E MIN. M.M.	7.1
F M.M.	17
G A/F M.M.	17
H A/F M.M.	50.1
HX M.M.	23.9
HY M.M.	26.2
MATERIAL	BRASS

Attribute: N2605-08-06-08-B (08IN-06MNPT-08...)

Stock Status: True

T TUBE OD	1/2
P NPT MALE	3/8
A M.M.	64.2
AX M.M.	36.0
B M.M.	14.3
C M.M.	21.8
D M.M.	22.9
E MIN. M.M.	9.6
F M.M.	22
G A/F M.M.	22
H A/F M.M.	54.1
HX M.M.	25.9
HY M.M.	28.2
MATERIAL	BRASS

Attribute: N2605-08-08-06-B (08IN-08MNPT-06...)

Stock Status: True

MATERIAL	BRASS

Attribute: N2605-08-08-08-B (08IN-08MNPT-08...)

Stock Status: True

T TUBE OD	1/2
P NPT MALE	1/2
A M.M.	69.0
AX M.M.	36.0
B M.M.	19.1
C M.M.	21.8
D M.M.	22.9
E MIN. M.M.	10.4
F M.M.	22
G A/F M.M.	22
H A/F M.M.	58.9
HX M.M.	25.9
HY M.M.	33.0
MATERIAL	BRASS
