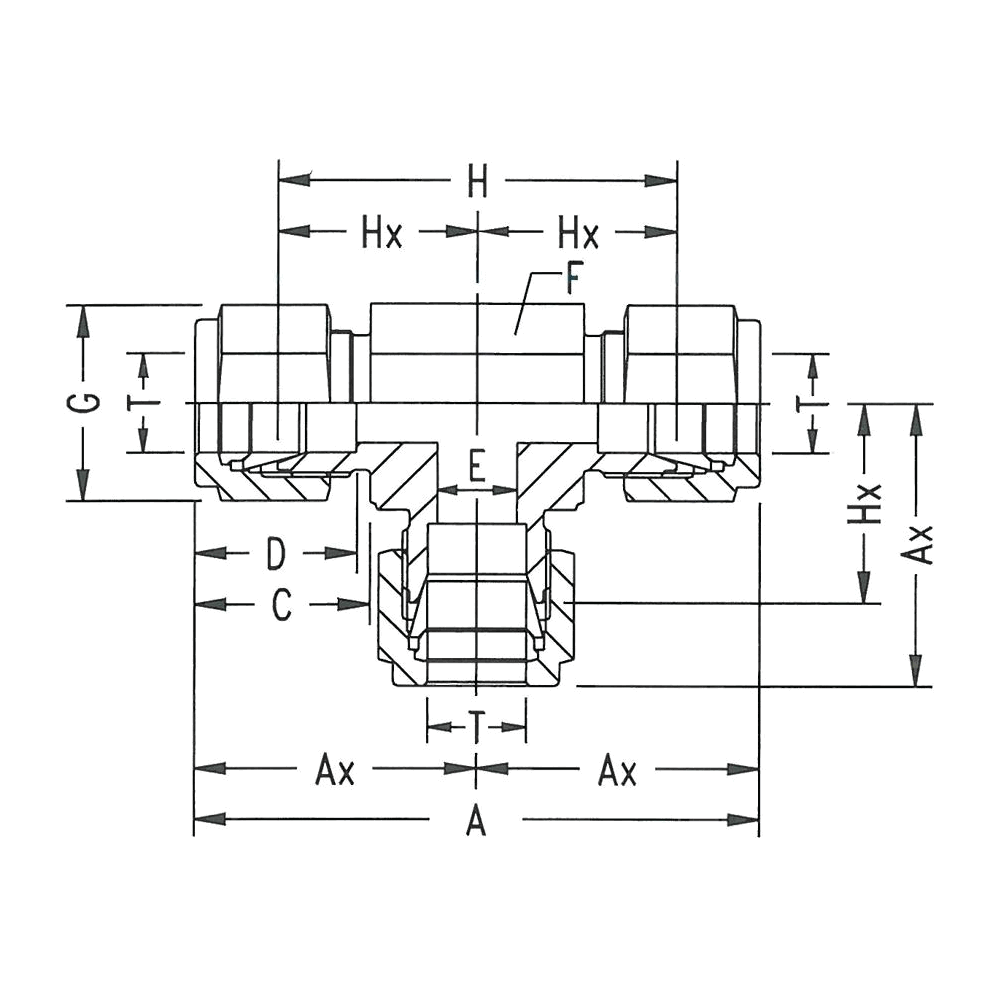

N2603-B

Attribute: N2603-02-02-02-B (02IN-02IN-02IN...)

Stock Status: True

T TUBE OD	1/8
A M.M.	44.8
AX M.M.	22.4
C M.M.	15.3
D M.M.	12.7
E MIN. M.M.	2.4
F A/F M.M.	11
G A/F M.M.	11
H M.M.	31.6
HX M.M.	15.8
MATERIAL	BRASS

Attribute: N2603-04-04-04-B (04IN-04IN-04IN...)

Stock Status: True

T TUBE OD	1/4
A M.M.	53.8
AX M.M.	26.9
C M.M.	17.8
D M.M.	15.3
E MIN. M.M.	4.8
F A/F M.M.	14
G A/F M.M.	14
H M.M.	39.2
HX M.M.	19.6
MATERIAL	BRASS

Attribute: N2603-05-05-05-B (05IN-05IN-05IN...)

Stock Status: True

T TUBE OD	5/16
A M.M.	57.4
AX M.M.	28.7
C M.M.	18.5
D M.M.	16.3
E MIN. M.M.	6.3
F A/F M.M.	16
G A/F M.M.	16
H M.M.	42.6
HX M.M.	21.3
MATERIAL	BRASS

Attribute: N2603-06-06-06-B (06IN-06IN-06IN...)

Stock Status: True

T TUBE OD	3/8
A M.M.	61.0
AX M.M.	30.5
C M.M.	19.3
D M.M.	16.8
E MIN. M.M.	7.1
F A/F M.M.	17
G A/F M.M.	17
H M.M.	46.4
HX M.M.	23.2
MATERIAL	BRASS

Attribute: N2603-08-08-08-B (08IN-08IN-08IN...)

Stock Status: True

T TUBE OD	1/2
A M.M.	72.0
AX M.M.	36.0
C M.M.	21.8
D M.M.	22.9
E MIN. M.M.	10.4
F A/F M.M.	22
G A/F M.M.	22
H M.M.	51.8
HX M.M.	25.9
MATERIAL	BRASS

Attribute: N2603-10-10-10-B (10IN-10IN-10IN...)

Stock Status: True

T TUBE OD	5/8
A M.M.	76.2
AX M.M.	38.1
C M.M.	21.8
D M.M.	24.4
E MIN. M.M.	12.7
F A/F M.M.	24
G A/F M.M.	25
H M.M.	55.8
HX M.M.	27.9
MATERIAL	BRASS

Attribute: N2603-12-12-12-B (12IN-12IN-12IN...)

Stock Status: True

T TUBE OD	3/4
A M.M.	79.8
AX M.M.	39.9
C M.M.	21.8
D M.M.	24.4
E MIN. M.M.	15.8
F A/F M.M.	27
G A/F M.M.	28.5
H M.M.	59.4
HX M.M.	29.7
MATERIAL	BRASS
