Description
STDPIPE-FERR Port Connector
Description
Variations (1)
N2440-04-02-B
$0.00Attribute: N2440-04-02-B (04STDPIPE-02FERR ...)
Stock Status: True

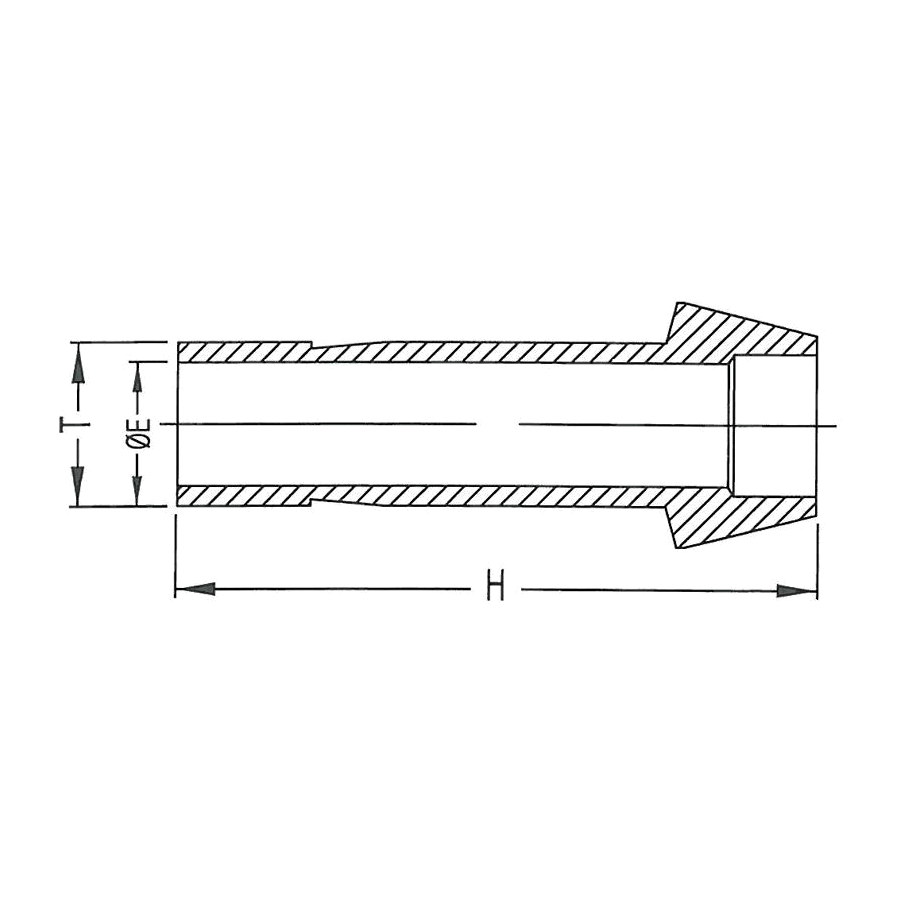

| T TUBE OD | 1/4 |
|---|---|
| TX REDUCTED TUBE OD | 1/8 |
| B M.M. | 13.5 |
| BX M.M. | 3.3 |
| E MIN. M.M. | 2.3 |
| H M.M. | 22.6 |
| J M.M. | 9.5 |
| MATERIAL | BRASS |
General Attributes
| Connections | Std Pipe, Other |
|---|---|
| Shape | Straight |
