Double Ferrule Tube Fittings - Brass

N2440-B

Scraped 2026-02-15 08:27:24

Description

Description

STDPIPE-FERR Port Connector

Variations (5)

N2440-02-02-B

$17.56

Attribute: N2440-02-02-B (02STDPIPE-02FERR ...)

Stock Status: True

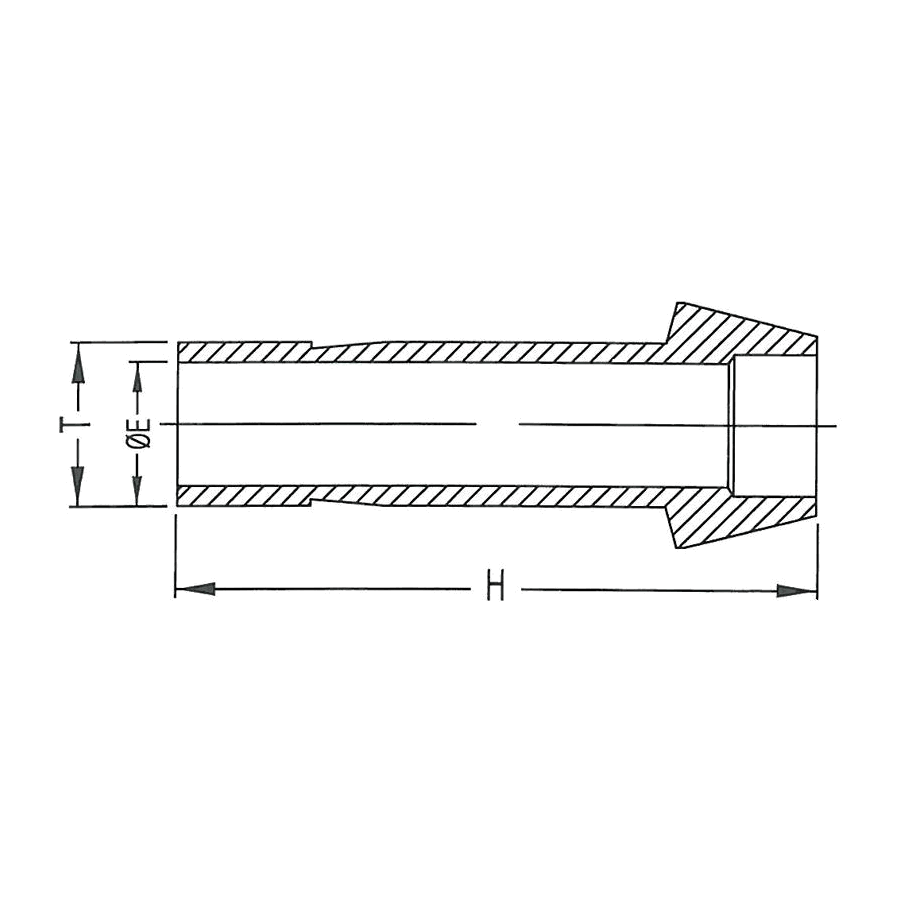

T TUBE OD1/8
B M.M.15.70
E MIN. M.M.2.3
H M.M.22.3
J M.M.6.0
MATERIALBRASS

N2440-04-04-B

$15.16

Attribute: N2440-04-04-B (04STDPIPE-04FERR ...)

Stock Status: True

T TUBE OD1/4
B M.M.18.90
E MIN. M.M.4.8
H M.M.24.7
J M.M.9.5
MATERIALBRASS

N2440-06-06-B

$30.50

Attribute: N2440-06-06-B (06STDPIPE-06FERR ...)

Stock Status: True

T TUBE OD3/8
B M.M.20.40
E MIN. M.M.7.1
H M.M.26.2
J M.M.12.5
MATERIALBRASS

N2440-08-08-B

$40.32

Attribute: N2440-08-08-B (08STDPIPE-08FERR ...)

Stock Status: True

T TUBE OD1/2
B M.M.26.00
E MIN. M.M.9.9
H M.M.35.9
J M.M.15.8
MATERIALBRASS

N2440-16-16-B

$124.38

Attribute: N2440-16-16-B (16STDPIPE-16FERR ...)

Stock Status: True

T TUBE OD1
B M.M.34.50
E MIN. M.M.20.3
H M.M.47.9
J M.M.28.2
MATERIALBRASS

General Attributes

Connections Std Pipe, Other
Shape Straight

PDF Documents

No PDF documents scraped.
