Double Ferrule Tube Fittings - Brass

N2430-B

Scraped 2026-02-15 08:27:24

Description

Description

STDPIPE-FNPT Straight

Variations (2)

N2430-04-02-B

$17.88

Attribute: N2430-04-02-B (04STDPIPE-02FNPT ...)

Stock Status: True

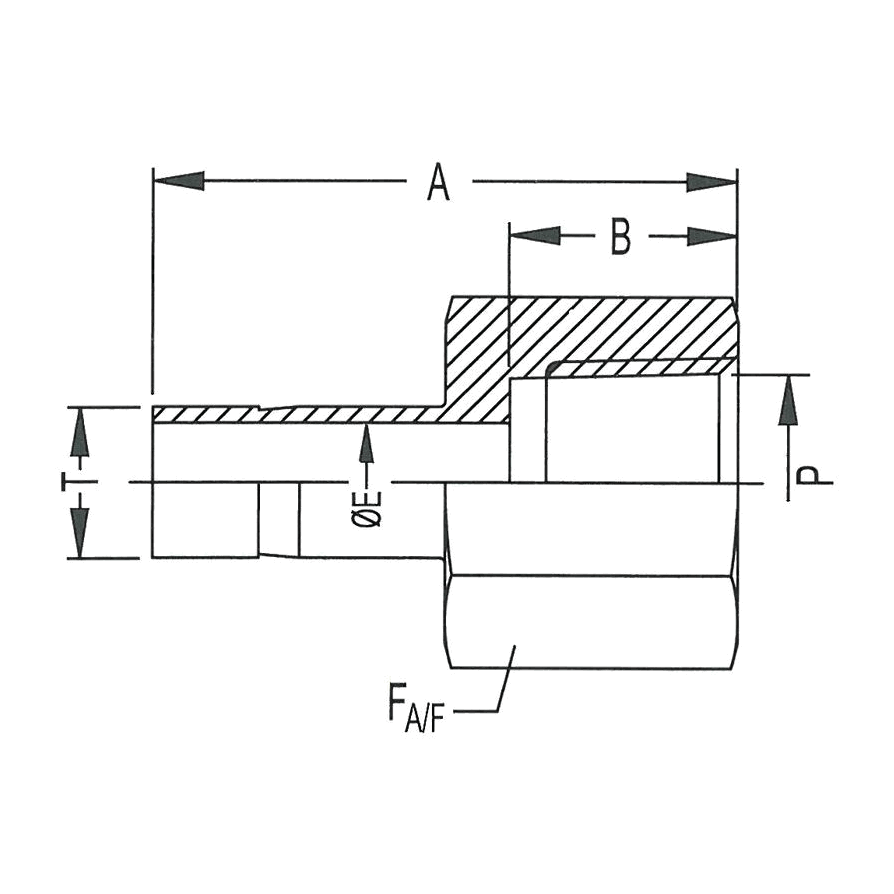

P NPT FEMALE1/8
T TUBE OD1/4
A M.M.33.0
B M.M.10.4
E MIN. M.M.4.8
F A/F M.M.14
MATERIALBRASS

N2430-04-04-B

$20.73

Attribute: N2430-04-04-B (04STDPIPE-04FNPT ...)

Stock Status: True

P NPT FEMALE1/4
T TUBE OD1/4
A M.M.37.0
B M.M.15.0
E MIN. M.M.4.8
F A/F M.M.19
MATERIALBRASS

General Attributes

Connections NPT, Std Pipe
Shape Straight
