N2404-BT-B

Attribute: N2404-03-02-BT-B (03IN-02MNPT Bo...)

Stock Status: True

MATERIAL	BRASS

Attribute: N2404-03-04-BT-B (03IN-04MNPT Bo...)

Stock Status: True

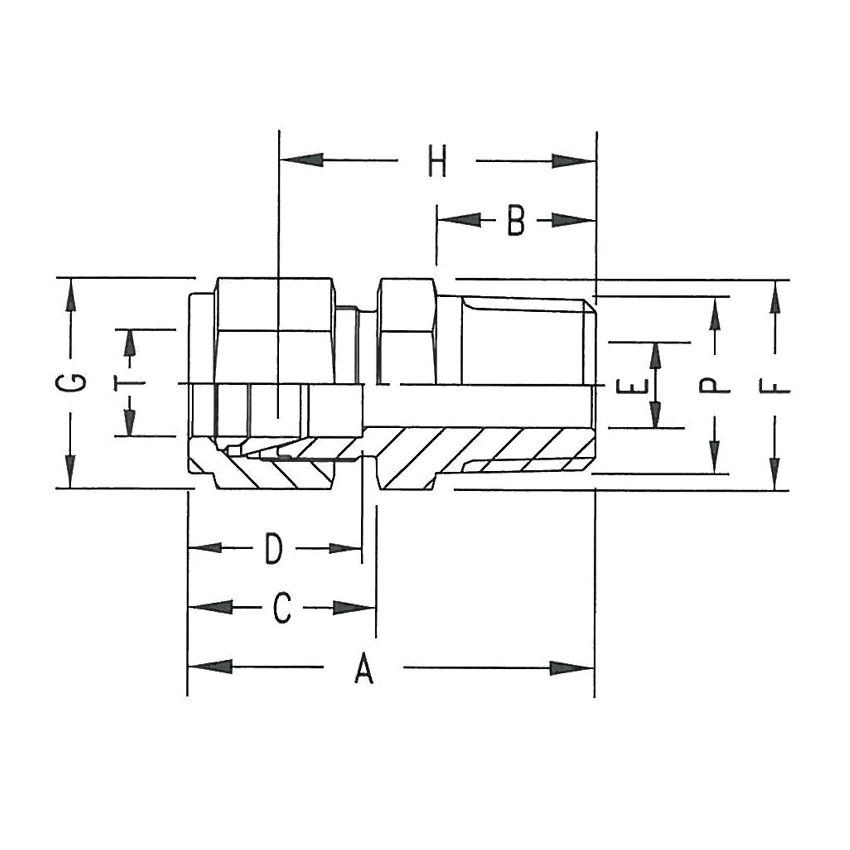

T TUBE OD	3/16
P NPT MALE	1/4
A	1.43
B	0.56
C	0.63
D	0.54
E MIN.	0.19
F A/F	0.55
G A/F	0.43
H	1.17
MATERIAL	BRASS

Attribute: N2404-04-02-BT-B (04IN-02MNPT Bo...)

Stock Status: True

MATERIAL	BRASS

Attribute: N2404-04-04-BT-B (04IN-04MNPT Bo...)

Stock Status: True

T TUBE OD	1/4
P NPT MALE	1/4
A	1.49
B	0.56
C	0.70
D	0.60
E MIN.	0.26
F A/F	0.55
G A/F	0.55
H	1.20
MATERIAL	BRASS

Attribute: N2404-08-08-BT-B (08IN-08MNPT Bo...)

Stock Status: True

T TUBE OD	1/2
P NPT MALE	1/2
A	1.93
B	0.75
C	0.86
D	0.90
E MIN.	0.51
F A/F	0.87
G A/F	0.87
H	1.53
MATERIAL	BRASS

Attribute: N2404-10-08-BT-B (10IN-08MNPT Bo...)

Stock Status: True

MATERIAL	BRASS
