N2403-B

Attribute: N2403-02-01-B (02IN-01IN Straigh...)

Stock Status: True

MATERIAL	BRASS

Attribute: N2403-02-02-B (02IN-02IN Straigh...)

Stock Status: True

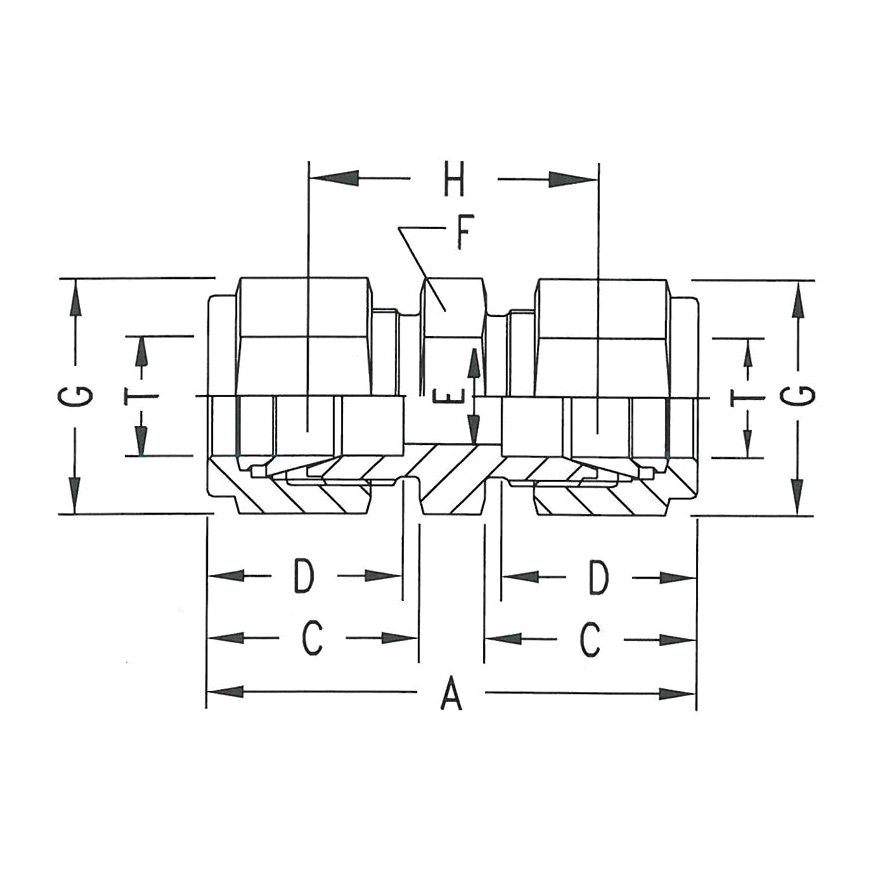

T TUBE OD	1/8
A M.M.	35.6
C M.M.	15.3
D M.M.	13.2
E MIN. M.M.	2.4
F A/F M.M.	11
G A/F M.M.	11
H M.M.	22.4
MATERIAL	BRASS

Attribute: N2403-04-04-B (04IN-04IN Straigh...)

Stock Status: True

T TUBE OD	1/4
A M.M.	40.9
C M.M.	17.8
D M.M.	15.3
E MIN. M.M.	4.8
F A/F M.M.	12.7
G A/F M.M.	14
H M.M.	26.2
MATERIAL	BRASS

Attribute: N2403-05-05-B (05IN-05IN Straigh...)

Stock Status: True

T TUBE OD	5/16
A M.M.	44.1
C M.M.	18.5
D M.M.	16.8
E MIN. M.M.	6.3
F A/F M.M.	14.2
G A/F M.M.	16
H M.M.	28.2
MATERIAL	BRASS

Attribute: N2403-06-06-B (06IN-06IN Straigh...)

Stock Status: True

T TUBE OD	3/8
A M.M.	46.7
C M.M.	19.3
D M.M.	17.8
E MIN. M.M.	7.1
F A/F M.M.	16
G A/F M.M.	17.4
H M.M.	30.2
MATERIAL	BRASS

Attribute: N2403-08-08-B (08IN-08IN Straigh...)

Stock Status: True

T TUBE OD	1/2
A M.M.	51.1
C M.M.	21.8
D M.M.	22.8
E MIN. M.M.	10.4
F A/F M.M.	20.6
G A/F M.M.	22.2
H M.M.	31.0
MATERIAL	BRASS

Attribute: N2403-10-10-B (10IN-10IN Straigh...)

Stock Status: True

T TUBE OD	5/8
A M.M.	51.8
C M.M.	21.8
D M.M.	24.3
E MIN. M.M.	12.7
F A/F M.M.	24.0
G A/F M.M.	25.4
H M.M.	31.8
MATERIAL	BRASS

Attribute: N2403-12-12-B (12IN-12IN Straigh...)

Stock Status: True

T TUBE OD	3/4
A M.M.	53.6
C M.M.	21.8
D M.M.	24.4
E MIN. M.M.	15.8
F A/F M.M.	27
G A/F M.M.	28.5
H M.M.	33.3
MATERIAL	BRASS

Attribute: N2403-16-16-B (16IN-16IN Straigh...)

Stock Status: True

T TUBE OD	1
A M.M.	64.8
C M.M.	26.4
D M.M.	31.2
E MIN. M.M.	22.3
F A/F M.M.	35
G A/F M.M.	38
H M.M.	40.4
MATERIAL	BRASS
