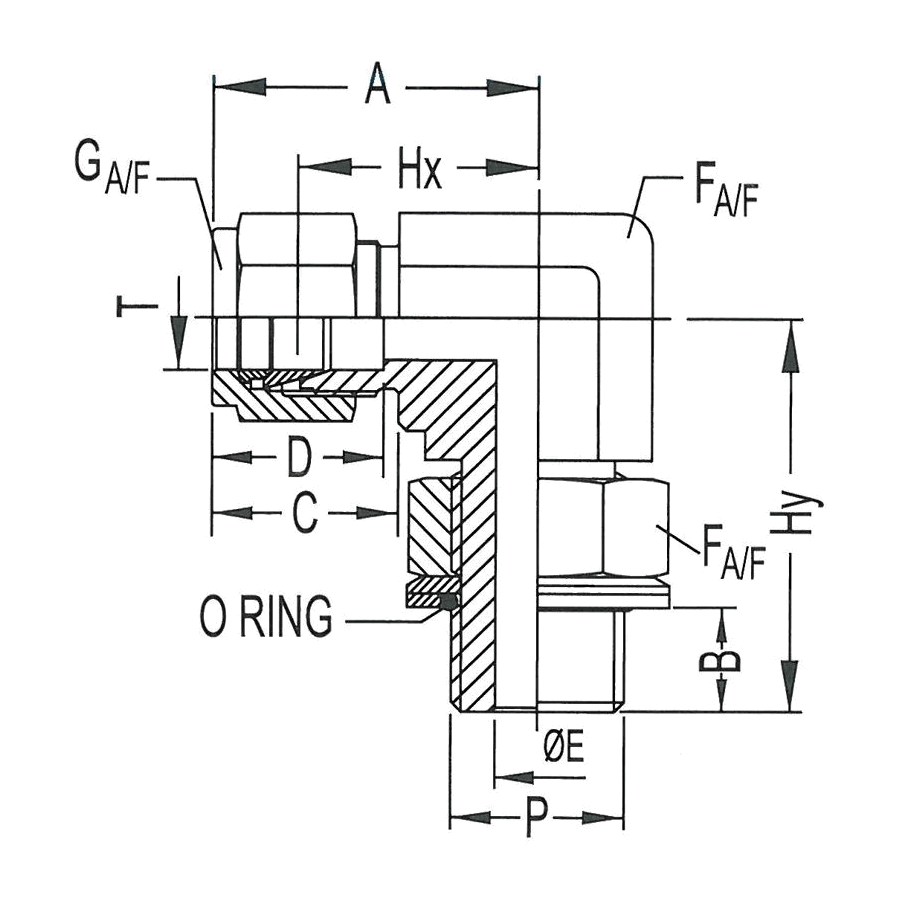

N7202

Attribute: N7202-08-06-NWO-SS (08IN-06MBSPP...)

Stock Status: True

T TUBE OD	1/2
P ISO MALE	3/8
A	1.42
B	0.37
C	0.86
D	0.90
E MIN.	0.31
F	0.87
FX A/F	0.87
G A/F	0.87
HX	1.02
HY	1.46
U	1.04
O RING PART NO.	9300-06
MATERIAL	STAINLESS STEEL

Attribute: N7202-08-08-NWO-SS (08IN-08MBSPP...)

Stock Status: True

T TUBE OD	1/2
P ISO MALE	1/2
A	1.50
B	0.51
C	0.86
D	0.96
E MIN.	0.41
F	0.94
FX A/F	1.06
G A/F	0.87
HX	1.10
HY	1.71
U	1.26
O RING PART NO.	9300-08
MATERIAL	STAINLESS STEEL
