N6804

Attribute: N6804-04-04-04-NWO-SS (04IN-04MA...)

Stock Status: True

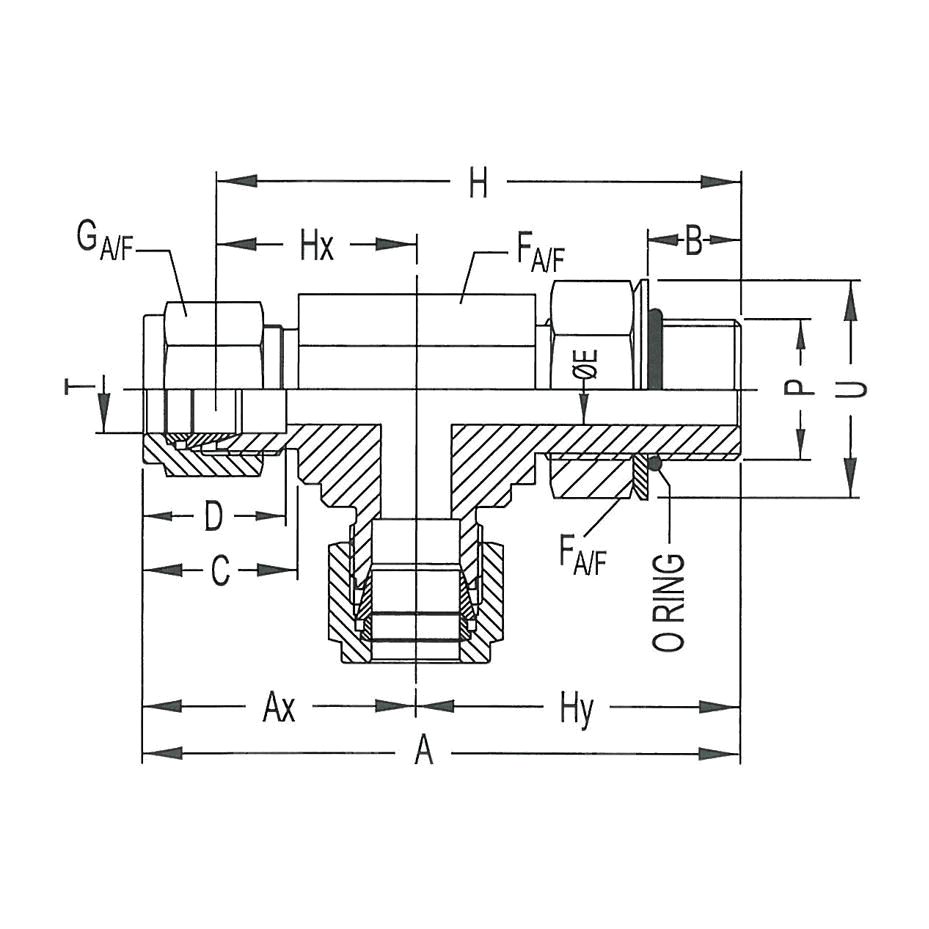

T TUBE OD	1/4
S SAE/MS MALE	7/16-20
A M.M.	57.0
AX M.M.	28.5
B M.M.	9.9
C M.M.	17.9
D M.M.	15.3
E MIN. M.M.	4.8
F A/F M.M.	14
FX A/F M.M.	14
G A/F M.M.	14
H M.M.	49.5
HX M.M.	21.0
HY M.M.	28.5
U M.M.	16.5
O RING PART NO.	4001-04
MATERIAL	STAINLESS STEEL

Attribute: N6804-06-06-06-NWO-SS (06IN-06MA...)

Stock Status: True

T TUBE OD	3/8
S SAE/MS MALE	9/16-18
A M.M.	64.3
AX M.M.	32.0
B M.M.	11.2
C M.M.	19.3
D M.M.	16.8
E MIN. M.M.	7.1
F A/F M.M.	16
FX A/F M.M.	17
G A/F M.M.	17
H M.M.	56.9
HX M.M.	24.6
HY M.M.	32.3
U M.M.	20.0
O RING PART NO.	4001-06
MATERIAL	STAINLESS STEEL

Attribute: N6804-16-16-16-NWO-SS (16IN-16MA...)

Stock Status: True

T TUBE OD	1
S SAE/MS MALE	15/16-12
A M.M.	104.1
AX M.M.	50.5
B M.M.	16.8
C M.M.	26.4
D M.M.	31.2
E MIN. M.M.	22.3
F A/F M.M.	35
FX A/F M.M.	35
G A/F M.M.	38
H M.M.	92.0
HX M.M.	38.4
HY M.M.	53.6
U M.M.	44.0
O RING PART NO.	4001-16
MATERIAL	STAINLESS STEEL
