IN-IN-MAORB Tee
Description
Variations (1)
N6803-12-12-12-NWO-SS
$0.00Attribute: N6803-12-12-12-NWO-SS (12IN-12IN...)
Stock Status: True

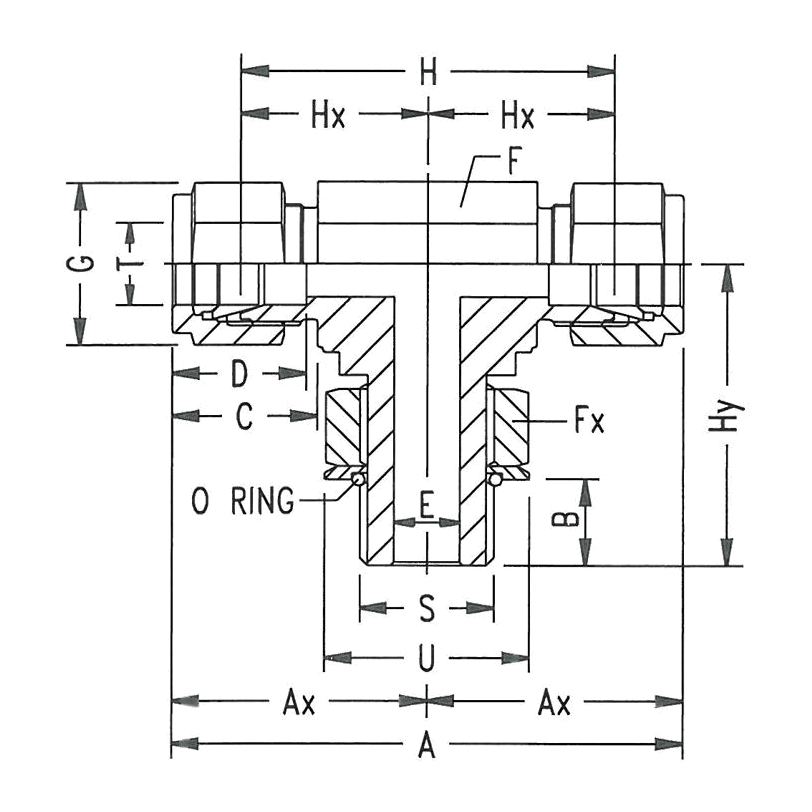

| T TUBE OD | 3/4 |
|---|---|
| S SAE/MS MALE | 11/16-12 |
| A M.M. | 82.8 |
| AX M.M. | 41.4 |
| B M.M. | 16.8 |
| C M.M. | 21.8 |
| D M.M. | 24 |
| E MIN. M.M. | 15.8 |
| F A/F M.M. | 27 |
| FX A/F M.M. | 32 |
| G A/F M.M. | 28.5 |
| H M.M. | 62.4 |
| HX M.M. | 31.2 |
| HY M.M. | 48.8 |
| U M.M. | 36.6 |
| O RING PART NO. | 4001-12 |
| MATERIAL | STAINLESS STEEL |
General Attributes
| Connections | ORB, Instrumentation |
|---|---|
| Shape | Tee |
