N2709-LN

Attribute: N2709-LN-04-04-SS (04INBH-04STDP...)

Stock Status: True

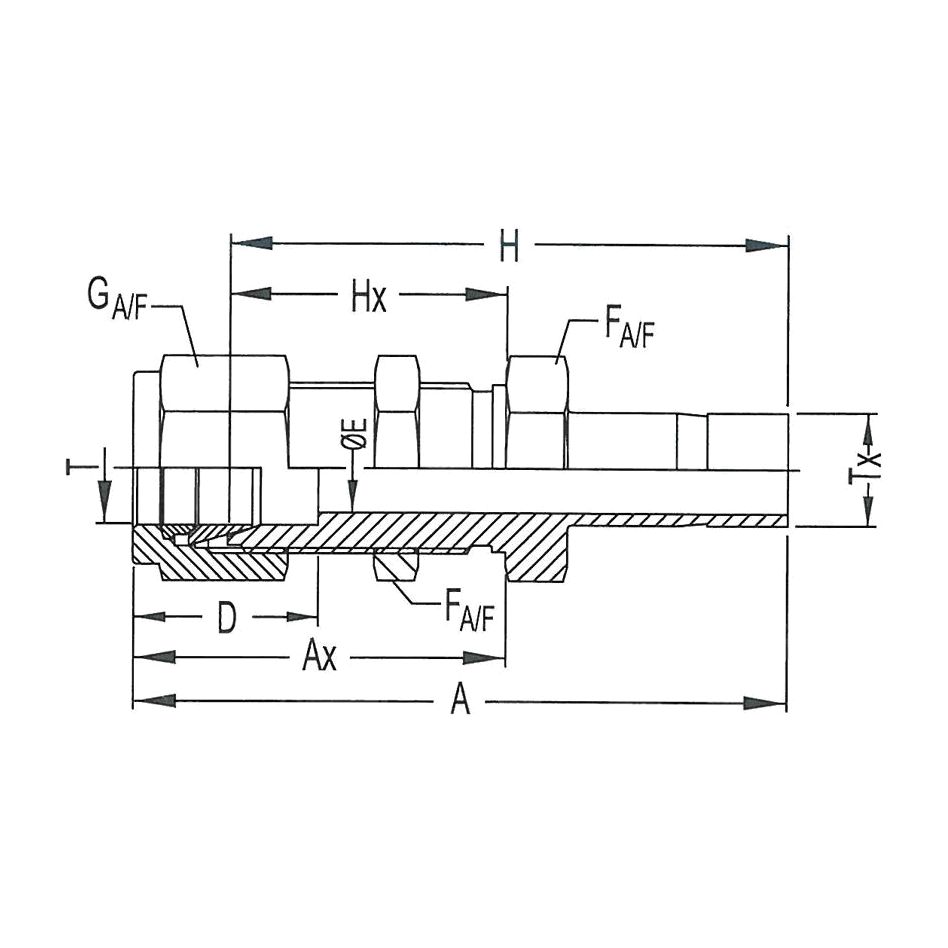

T TUBE OD	1/4
TX TUBE OD	1/4
A M.M.	55.9
AX M.M.	33.5
D M.M.	15.3
E MIN. M.M.	4.8
F A/F M.M.	16
G A/F M.M.	14
H D M.M.	48.5
HX M.M.	26.2
PANEL HOLE DRILL SIZE M.M.	11.5
MAX. PANEL THICKNESS M.M.	10.2
MATERIAL	STAINLESS STEEL

Attribute: N2709-LN-06-06-SS (06INBH-06STDP...)

Stock Status: True

T TUBE OD	3/8
TX TUBE OD	3/8
A M.M.	60.8
AX M.M.	36.8
D M.M.	16.8
E MIN. M.M.	7.1
F A/F M.M.	19
G A/F M.M.	17
H D M.M.	53.8
HX M.M.	29.5
PANEL HOLE DRILL SIZE M.M.	14.7
MAX. PANEL THICKNESS M.M.	11.2
MATERIAL	STAINLESS STEEL

Attribute: N2709-LN-08-08-SS (08INBH-08STDP...)

Stock Status: True

T TUBE OD	1/2
TX TUBE OD	1/2
A M.M.	72.9
AX M.M.	41.9
D M.M.	22.9
E MIN. M.M.	9.9
F A/F M.M.	24
G A/F M.M.	22
H D M.M.	62.7
HX M.M.	31.8
PANEL HOLE DRILL SIZE M.M.	19.5
MAX. PANEL THICKNESS M.M.	12.7
MATERIAL	STAINLESS STEEL
