N2707-LN

Attribute: N2707-LN-04-04-SS (04INHB-04MJ B...)

Stock Status: True

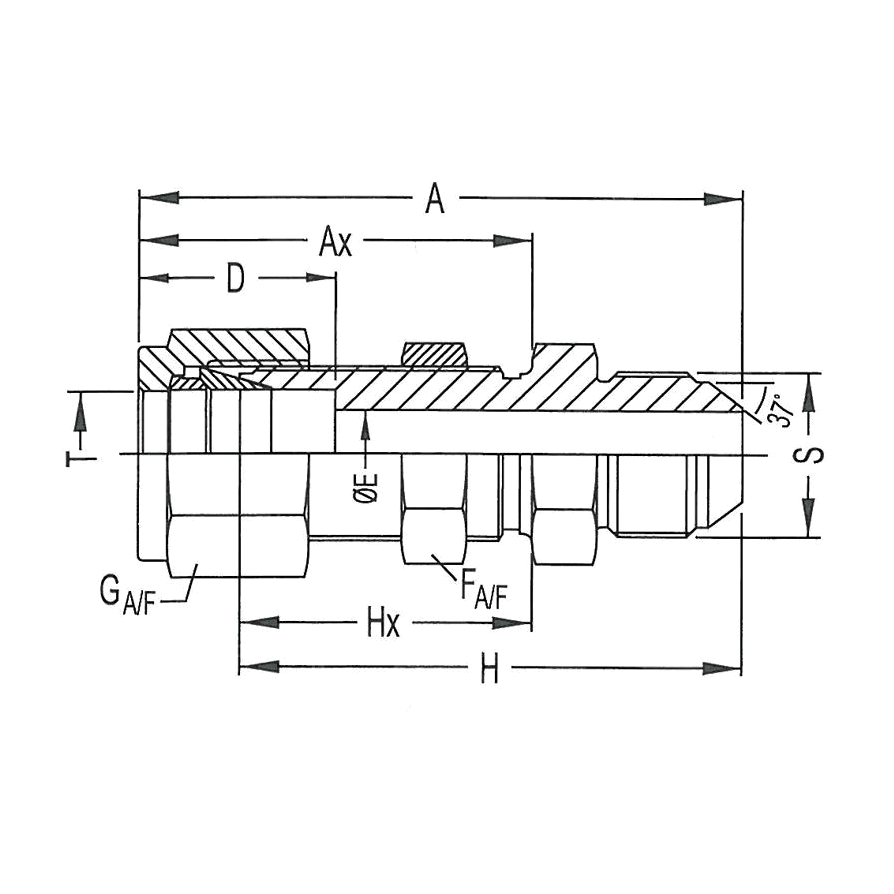

T TUBE OD	1/4
AN TUBE FLARE	1/4
A M.M.	53.9
AX M.M.	33.5
D M.M.	15.2
E MIN M.M.	4.3
F A/F M.M.	5/8
G A/F M.M.	9/16
H M.M.	46.5
HX M.M.	26.2
S THREAD	7/16-20
PANEL HOLE DRILL SIZE M.M.	11.5
MAX. PANEL THICKNESS M.M.	10.1
MATERIAL	STAINLESS STEEL

Attribute: N2707-LN-06-06-SS (06INHB-06MJ B...)

Stock Status: True

T TUBE OD	3/8
AN TUBE FLARE	3/8
A M.M.	57.2
AX M.M.	36.8
D M.M.	16.8
E MIN M.M.	7.1
F A/F M.M.	3/4
G A/F M.M.	11/16
H M.M.	49.8
HX M.M.	29.5
S THREAD	9/16-18
PANEL HOLE DRILL SIZE M.M.	14.7
MAX. PANEL THICKNESS M.M.	11.1
MATERIAL	STAINLESS STEEL

Attribute: N2707-LN-08-08-SS (08INHB-08MJ B...)

Stock Status: True

T TUBE OD	1/2
AN TUBE FLARE	1/2
A M.M.	65.8
AX M.M.	41.9
D M.M.	22.9
E MIN M.M.	9.9
F A/F M.M.	15/16
G A/F M.M.	7/8
H M.M.	55.6
HX M.M.	31.8
S THREAD	3/4-16
PANEL HOLE DRILL SIZE M.M.	19.5
MAX. PANEL THICKNESS M.M.	12.7
MATERIAL	STAINLESS STEEL

Attribute: N2707-LN-12-12-SS (12INHB-12MJ B...)

Stock Status: True

T TUBE OD	3/4
AN TUBE FLARE	3/4
A M.M.	79.0
AX M.M.	47.5
D M.M.	24.4
E MIN M.M.	15.5
F A/F M.M.	1-3/16
G A/F M.M.	1-1/8
H M.M.	68.8
HX M.M.	37.3
S THREAD	1-1/16-12
PANEL HOLE DRILL SIZE M.M.	25.8
MAX. PANEL THICKNESS M.M.	16.7
MATERIAL	STAINLESS STEEL

Attribute: N2707-LN-16-16-SS (16INHB-16MJ B...)

Stock Status: True

T TUBE OD	1
AN TUBE FLARE	1
A M.M.	92.5
AX M.M.	57.4
D M.M.	31.2
E MIN M.M.	21.3
F A/F M.M.	1-5/8
G A/F M.M.	1-1/2
H M.M.	80.3
HX M.M.	45.2
S THREAD	1-5/16-12
PANEL HOLE DRILL SIZE M.M.	33.7
MAX. PANEL THICKNESS M.M.	19.0
MATERIAL	STAINLESS STEEL
