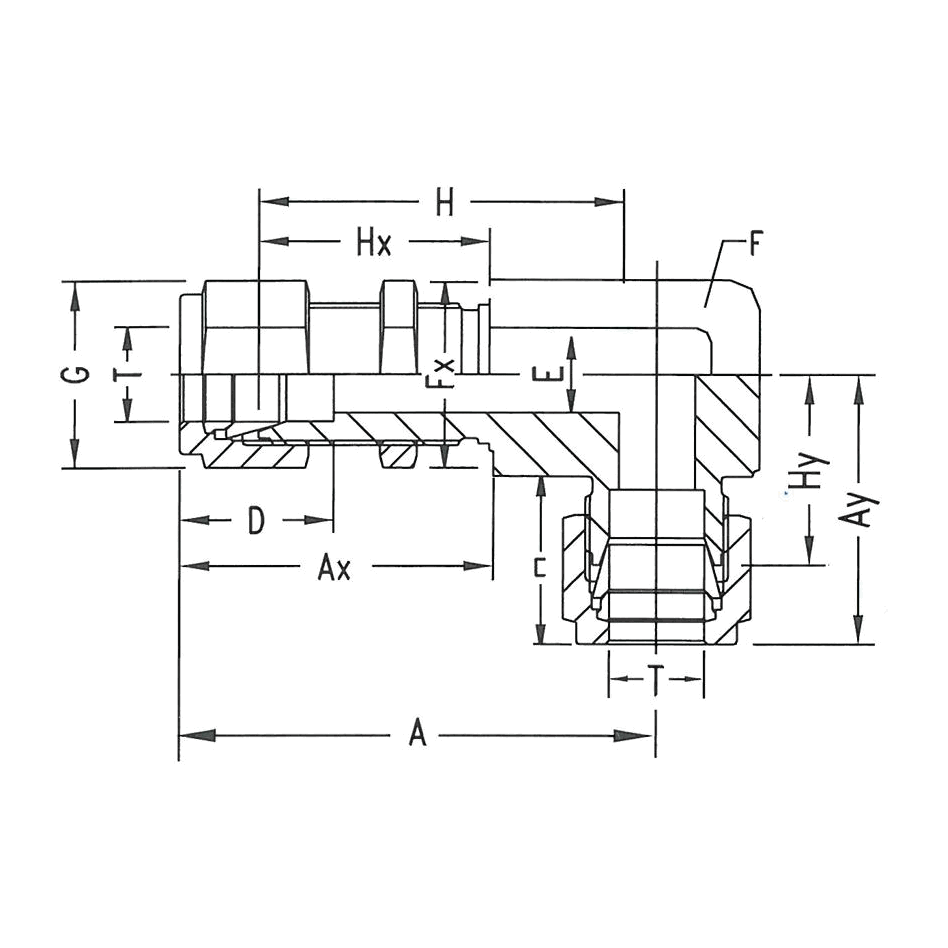

N2701-LN

Attribute: N2701-LN-02-02-SS (02INBH-02IN 9...)

Stock Status: True

T TUBE OD	1/8
A M.M.	43.1
AX M.M.	31.2
AY M.M.	22.4
C M.M.	15.3
D M.M.	12.7
E MIN. M.M.	2.4
F A/F M.M.	11
G A/F M.M.	11
H M.M.	36.5
HX M.M.	24.6
HY M.M.	15.8
PANEL HOLE DRILL SIZE M.M.	8.3
MAX. PANEL THICKNESS M.M.	12.7
MATERIAL	STAINLESS STEEL

Attribute: N2701-LN-04-04-SS (04INBH-04IN 9...)

Stock Status: True

T TUBE OD	1/4
A M.M.	48.9
AX M.M.	33.6
AY M.M.	26.9
C M.M.	17.8
D M.M.	15.3
E MIN. M.M.	4.8
F A/F M.M.	16
G A/F M.M.	14
H M.M.	41.5
HX M.M.	26.2
HY M.M.	19.6
PANEL HOLE DRILL SIZE M.M.	11.5
MAX. PANEL THICKNESS M.M.	10.1
MATERIAL	STAINLESS STEEL

Attribute: N2701-LN-06-06-SS (06INBH-06IN 9...)

Stock Status: True

T TUBE OD	3/8
A M.M.	54.1
AX M.M.	36.8
AY M.M.	30.5
C M.M.	19.3
D M.M.	16.8
E MIN. M.M.	7.1
F A/F M.M.	22
G A/F M.M.	17
H M.M.	46.8
HX M.M.	29.5
HY M.M.	23.2
PANEL HOLE DRILL SIZE M.M.	14.6
MAX. PANEL THICKNESS M.M.	11.1
MATERIAL	STAINLESS STEEL

Attribute: N2701-LN-08-08-SS (08INBH-08IN 9...)

Stock Status: True

T TUBE OD	1/2
A M.M.	63.5
AX M.M.	41.9
AY M.M.	36.0
C M.M.	21.8
D M.M.	22.9
E MIN. M.M.	10.4
F A/F M.M.	24
G A/F M.M.	22
H M.M.	53.4
HX M.M.	31.8
HY M.M.	25.9
PANEL HOLE DRILL SIZE M.M.	19.5
MAX. PANEL THICKNESS M.M.	12.7
MATERIAL	STAINLESS STEEL

Attribute: N2701-LN-12-12-SS (12INBH-12IN 9...)

Stock Status: True

T TUBE OD	3/4
A M.M.	75.3
AX M.M.	47.5
AY M.M.	39.9
C M.M.	21.8
D M.M.	24.4
E MIN. M.M.	16.0
F A/F M.M.	30
G A/F M.M.	29
H M.M.	65.2
HX M.M.	37.4
HY M.M.	29.7
PANEL HOLE DRILL SIZE M.M.	25.8
MAX. PANEL THICKNESS M.M.	16.8
MATERIAL	STAINLESS STEEL

Attribute: N2701-LN-16-16-SS (16INBH-16IN 9...)

Stock Status: True

T TUBE OD	1
A M.M.	91.8
AX M.M.	57.4
AY M.M.	49.0
C M.M.	26.4
D M.M.	31.2
E MIN. M.M.	22.3
F A/F M.M.	35
G A/F M.M.	38
H M.M.	79.6
HX M.M.	45.2
HY M.M.	36.8
PANEL HOLE DRILL SIZE M.M.	33.7
MAX. PANEL THICKNESS M.M.	19.0
MATERIAL	STAINLESS STEEL
