N2700-LN

Attribute: N2700-LN-01-01-SS (01INBH-01IN S...)

Stock Status: True

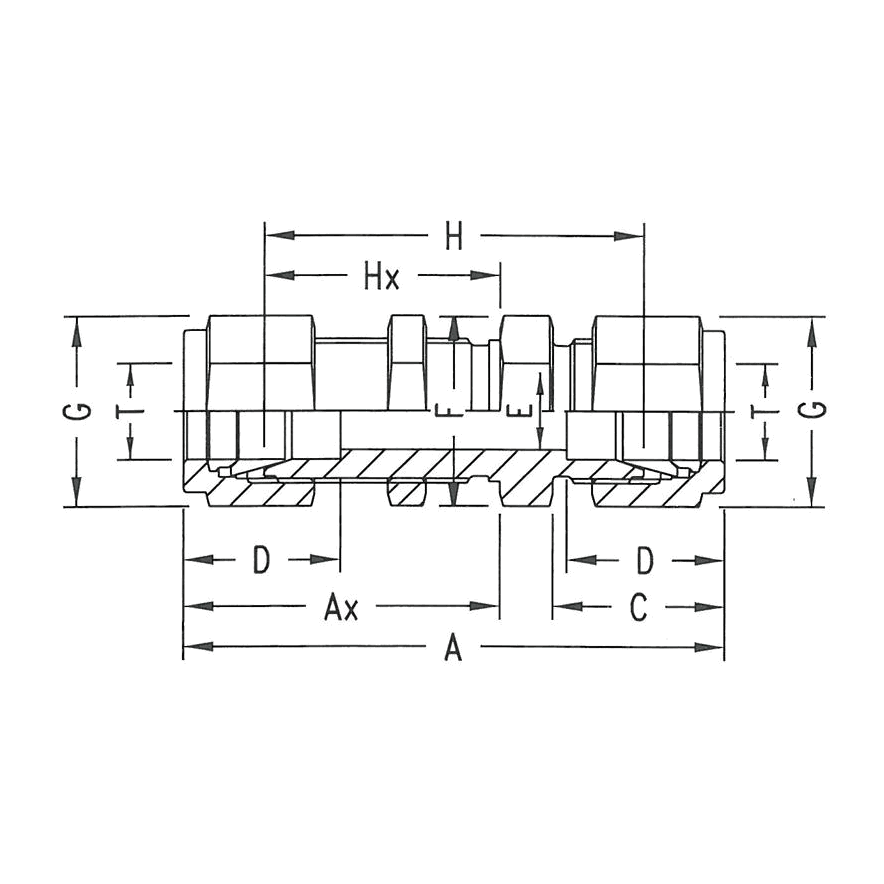

T TUBE OD	1/16
A M.M.	31.5
AX M.M.	17.3
C M.M.	11.0
D M.M.	8.6
E MIN. M.M.	1.3
F A/F M.M.	11
G A/F M.M.	8
H M.M.	23.8
HX M.M.	13.5
PANEL HOLE DRILL SIZE M.M.	5.2
MAX. PANEL THICKNESS M.M.	3.0
MATERIAL	STAINLESS STEEL

Attribute: N2700-LN-02-02-SS (02INBH-02IN S...)

Stock Status: True

T TUBE OD	1/8
A M.M.	51.3
AX M.M.	31.2
C M.M.	15.3
D M.M.	12.7
E MIN. M.M.	2.4
F A/F M.M.	11
G A/F M.M.	11
H M.M.	38.1
HX M.M.	24.6
PANEL HOLE DRILL SIZE M.M.	8.3
MAX. PANEL THICKNESS M.M.	12.7
MATERIAL	STAINLESS STEEL

Attribute: N2700-LN-03-03-SS (03INBH-03IN S...)

Stock Status: True

MATERIAL	STAINLESS STEEL

Attribute: N2700-LN-04-04-SS (04INBH-04IN S...)

Stock Status: True

T TUBE OD	1/4
A M.M.	57.6
AX M.M.	33.6
C M.M.	17.8
D M.M.	15.3
E MIN. M.M.	4.8
F A/F M.M.	16
G A/F M.M.	14
H M.M.	43.0
HX M.M.	26.2
PANEL HOLE DRILL SIZE M.M.	11.5
MAX. PANEL THICKNESS M.M.	10.1
MATERIAL	STAINLESS STEEL

Attribute: N2700-LN-05-05-SS (05INBH-05IN S...)

Stock Status: True

T TUBE OD	5/16
A M.M.	60.7
AX M.M.	35.8
C M.M.	18.5
D M.M.	16.3
E MIN. M.M.	6.3
F A/F M.M.	17
G A/F M.M.	16
H M.M.	46.0
HX M.M.	28.5
PANEL HOLE DRILL SIZE M.M.	13.0
MAX. PANEL THICKNESS M.M.	11.1
MATERIAL	STAINLESS STEEL

Attribute: N2700-LN-06-06-SS (06INBH-06IN S...)

Stock Status: True

T TUBE OD	3/8
A M.M.	62.2
AX M.M.	36.8
C M.M.	19.3
D M.M.	7.1
E MIN. M.M.	7.1
F A/F M.M.	22
G A/F M.M.	17
H M.M.	47.5
HX M.M.	29.5
PANEL HOLE DRILL SIZE M.M.	14.6
MAX. PANEL THICKNESS M.M.	11.1
MATERIAL	STAINLESS STEEL

Attribute: N2700-LN-08-08-SS (08INBH-08IN S...)

Stock Status: True

T TUBE OD	1/2
A M.M.	71.1
AX M.M.	41.9
C M.M.	21.8
D M.M.	22.9
E MIN. M.M.	10.4
F A/F M.M.	24
G A/F M.M.	22
H M.M.	50.8
HX M.M.	31.8
PANEL HOLE DRILL SIZE M.M.	19.5
MAX. PANEL THICKNESS M.M.	12.7
MATERIAL	STAINLESS STEEL

Attribute: N2700-LN-10-10-SS (10INBH-10IN S...)

Stock Status: True

T TUBE OD	5/8
A M.M.	72.6
AX M.M.	42.7
C M.M.	21.8
D M.M.	24.4
E MIN. M.M.	12.7
F A/F M.M.	27
G A/F M.M.	25
H M.M.	52.3
HX M.M.	32.5
PANEL HOLE DRILL SIZE M.M.	22.6
MAX. PANEL THICKNESS M.M.	12.7
MATERIAL	STAINLESS STEEL

Attribute: N2700-LN-12-12-SS (12INBH-12IN S...)

Stock Status: True

T TUBE OD	3/4
A M.M.	79.0
AX M.M.	47.5
C M.M.	21.8
D M.M.	24.4
E MIN. M.M.	16.0
F A/F M.M.	30
G A/F M.M.	28.5
H M.M.	58.6
HX M.M.	37.4
PANEL HOLE DRILL SIZE M.M.	25.8
MAX. PANEL THICKNESS M.M.	16.8
MATERIAL	STAINLESS STEEL

Attribute: N2700-LN-16-16-SS (16INBH-16IN S...)

Stock Status: True

T TUBE OD	1
A M.M.	95.6
AX M.M.	57.4
C M.M.	26.4
D M.M.	31.2
E MIN. M.M.	22.3
F A/F M.M.	35
G A/F M.M.	38
H M.M.	71.3
HX M.M.	45.2
PANEL HOLE DRILL SIZE M.M.	33.7
MAX. PANEL THICKNESS M.M.	19.0
MATERIAL	STAINLESS STEEL
