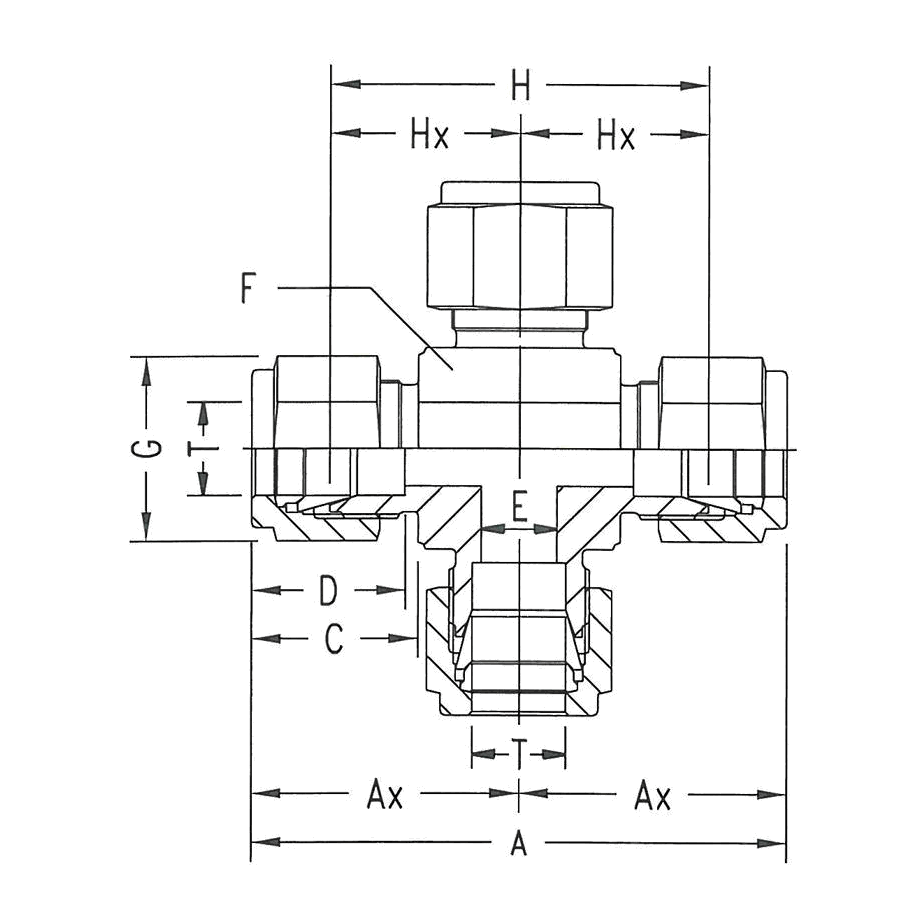

N2650

Attribute: N2650-02-02-02-02-SS (02IN-02IN-...)

Stock Status: True

T TUBE OD	1/8
A M.M.	44.8
AX M.M.	22.4
C M.M.	15.3
D M.M.	12.7
E MIN. M.M.	2.4
F A/F M.M.	11
G A/F M.M.	11
H M.M.	31.6
HX M.M.	15.8
MATERIAL	STAINLESS STEEL

Attribute: N2650-04-04-04-04-SS (04IN-04IN-...)

Stock Status: True

T TUBE OD	1/4
A M.M.	53.8
AX M.M.	26.9
C M.M.	17.8
D M.M.	15.3
E MIN. M.M.	4.8
F A/F M.M.	14
G A/F M.M.	14
H M.M.	39.2
HX M.M.	19.6
MATERIAL	STAINLESS STEEL

Attribute: N2650-06-06-06-06-SS (06IN-06IN-...)

Stock Status: True

T TUBE OD	3/8
A M.M.	61.0
AX M.M.	30.5
C M.M.	19.3
D M.M.	16.8
E MIN. M.M.	7.1
F A/F M.M.	17
G A/F M.M.	17
H M.M.	46.4
HX M.M.	23.2
MATERIAL	STAINLESS STEEL

Attribute: N2650-08-08-08-08-SS (08IN-08IN-...)

Stock Status: True

T TUBE OD	1/2
A M.M.	72.0
AX M.M.	36.0
C M.M.	21.8
D M.M.	22.9
E MIN. M.M.	10.4
F A/F M.M.	22
G A/F M.M.	22
H M.M.	51.8
HX M.M.	25.9
MATERIAL	STAINLESS STEEL

Attribute: N2650-12-12-12-12-SS (12IN-12IN-...)

Stock Status: True

T TUBE OD	3/4
A M.M.	79.8
AX M.M.	39.9
C M.M.	21.8
D M.M.	24.4
E MIN. M.M.	15.8
F A/F M.M.	27
G A/F M.M.	28.5
H M.M.	59.4
HX M.M.	29.7
MATERIAL	STAINLESS STEEL

Attribute: N2650-16-16-16-16-SS (16IN-16IN-...)

Stock Status: True

T TUBE OD	1
A M.M.	98.0
AX M.M.	49.0
C M.M.	26.4
D M.M.	31.2
E MIN. M.M.	22.3
F A/F M.M.	35
G A/F M.M.	38
H M.M.	73.6
HX M.M.	36.8
MATERIAL	STAINLESS STEEL
