N2603RU

N2603-06-04-04-SS

$201.16

Attribute: N2603-06-04-04-SS (06IN-04IN-04I...)

Stock Status: True

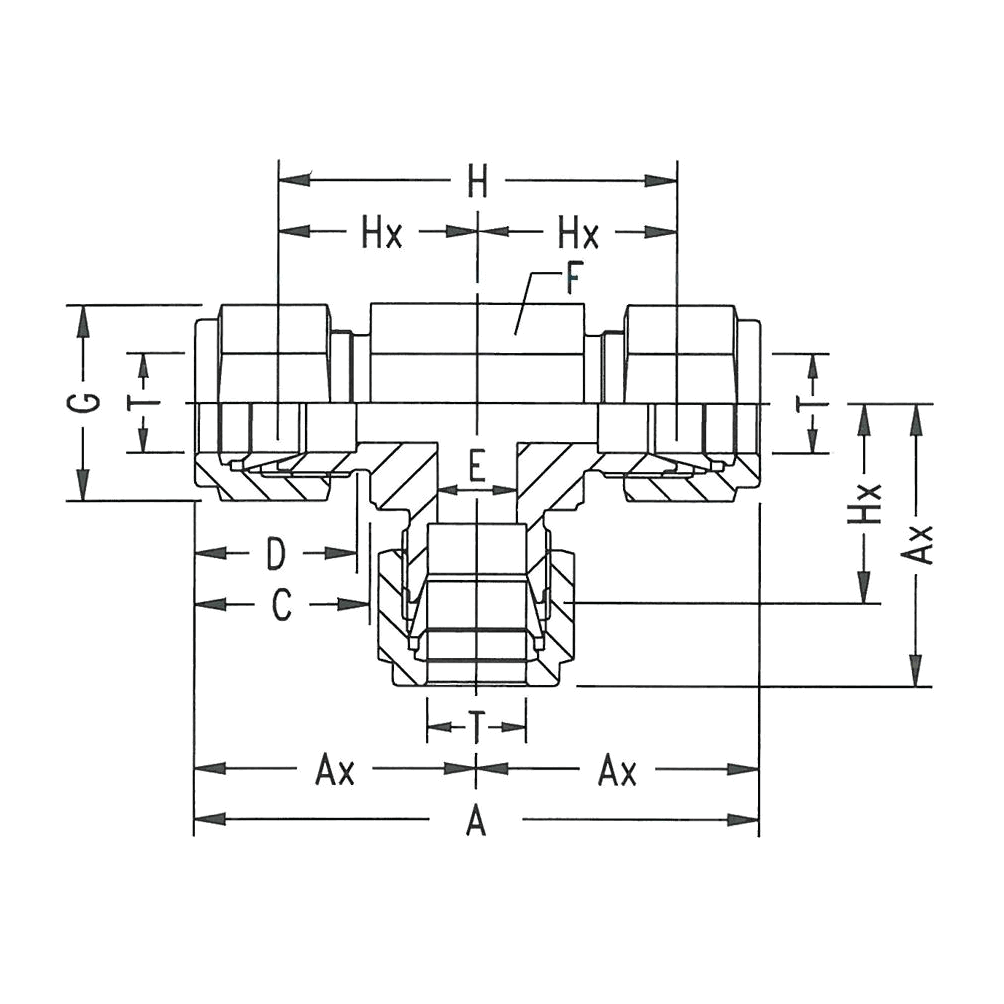

T TUBE OD	3/8
TX TUBE OD	1/4
A M.M.	59.6
AX M.M.	30.6
AY M.M.	29.0
C M.M.	19.3
CX M.M.	17.8
D M.M.	16.8
DX M.M.	15.3
E MIN. M.M.	4.8
F A/F M.M.	16
G A/F M.M.	17
GX A/F M.M.	14
H M.M.	44.8
HX M.M.	23.2
HY M.M.	21.6
MATERIAL	STAINLESS STEEL

N2603-06-04-06-SS

$239.33

Attribute: N2603-06-04-06-SS (06IN-04IN-06I...)

Stock Status: True

T TUBE OD	3/8
TX TUBE OD	1/4
A M.M.	59.4
AX M.M.	30.5
AY M.M.	29.0
C M.M.	19.3
CX M.M.	17.8
D M.M.	16.8
DX M.M.	15.3
E MIN. M.M.	4.8
F A/F M.M.	16
G A/F M.M.	17
GX A/F M.M.	14
H M.M.	44.7
HX M.M.	23.1
HY M.M.	21.6
MATERIAL	STAINLESS STEEL

N2603-06-06-04-SS

$239.33

Attribute: N2603-06-06-04-SS (06IN-06IN-04I...)

Stock Status: True

T TUBE OD	3/8
TX TUBE OD	1/4
A M.M.	61.0
AX M.M.	30.5
AY M.M.	29.0
C M.M.	19.3
CX M.M.	17.8
D M.M.	16.8
DX M.M.	15.3
E MIN. M.M.	4.8
F A/F M.M.	16
G A/F M.M.	17
GX A/F M.M.	14
H M.M.	46.2
HX M.M.	23.1
HY M.M.	21.6
MATERIAL	STAINLESS STEEL

N2603-08-04-04-SS

$301.64

Attribute: N2603-08-04-04-SS (08IN-04IN-04I...)

Stock Status: True

T TUBE OD	1/2
TX TUBE OD	1/4
A M.M.	67.7
AX M.M.	36.0
AY M.M.	31.7
C M.M.	21.8
CX M.M.	17.8
D M.M.	22.9
DX M.M.	15.3
E MIN. M.M.	4.8
F A/F M.M.	22
G A/F M.M.	22
GX A/F M.M.	14
H M.M.	50.2
HX M.M.	25.9
HY M.M.	24.3
MATERIAL	STAINLESS STEEL

N2603-08-04-08-SS

$301.64

Attribute: N2603-08-04-08-SS (08IN-04IN-08I...)

Stock Status: True

T TUBE OD	1/2
TX TUBE OD	1/4
A M.M.	67.7
AX M.M.	36.0
AY M.M.	31.7
C M.M.	21.8
CX M.M.	17.8
D M.M.	22.9
DX M.M.	15.3
E MIN. M.M.	4.8
F A/F M.M.	22
G A/F M.M.	22
GX A/F M.M.	14
H M.M.	50.2
HX M.M.	25.9
HY M.M.	24.3
MATERIAL	STAINLESS STEEL

N2603-08-06-06-SS

$359.00

Attribute: N2603-08-06-06-SS (08IN-06IN-06I...)

Stock Status: True

T TUBE OD	1/2
TX TUBE OD	3/8
A M.M.	69.3
AX M.M.	36.0
AY M.M.	33.2
C M.M.	21.8
CX M.M.	19.3
D M.M.	22.9
DX M.M.	16.8
E MIN. M.M.	7.1
F A/F M.M.	22
G A/F M.M.	22
GX A/F M.M.	17
H M.M.	51.8
HX M.M.	25.9
HY M.M.	25.9
MATERIAL	STAINLESS STEEL

N2603-08-06-08-SS

$301.64

Attribute: N2603-08-06-08-SS (08IN-06IN-08I...)

Stock Status: True

T TUBE OD	1/2
TX TUBE OD	3/8
A M.M.	69.3
AX M.M.	36.0
AY M.M.	33.3
C M.M.	21.8
CX M.M.	19.3
D M.M.	22.9
DX M.M.	16.8
E MIN. M.M.	7.1
F A/F M.M.	22
G A/F M.M.	22
GX A/F M.M.	17
H M.M.	51.8
HX M.M.	25.9
HY M.M.	25.9
MATERIAL	STAINLESS STEEL

N2603-08-08-04-SS

$359.00

Attribute: N2603-08-08-04-SS (08IN-08IN-04I...)

Stock Status: True

T TUBE OD	1/2
TX TUBE OD	1/4
A M.M.	72.2
AX M.M.	36.0
AY M.M.	31.8
C M.M.	21.8
CX M.M.	17.8
D M.M.	22.9
DX M.M.	15.3
E MIN. M.M.	4.8
F A/F M.M.	22
G A/F M.M.	22
GX A/F M.M.	14
H M.M.	51.8
HX M.M.	25.9
HY M.M.	24.4
MATERIAL	STAINLESS STEEL

N2603-08-08-06-SS

$359.00

Attribute: N2603-08-08-06-SS (08IN-08IN-06I...)

Stock Status: True

T TUBE OD	1/2
TX TUBE OD	3/8
A M.M.	72.2
AX M.M.	36.0
AY M.M.	33.3
C M.M.	21.8
CX M.M.	19.3
D M.M.	22.9
DX M.M.	16.8
E MIN. M.M.	7.1
F A/F M.M.	22
G A/F M.M.	22
GX A/F M.M.	17
H M.M.	51.8
HX M.M.	25.9
HY M.M.	25.9
MATERIAL	STAINLESS STEEL

N2603-12-06-06-SS

$576.12

Attribute: N2603-12-06-06-SS (12IN-06IN-06I...)

Stock Status: True

T TUBE OD	3/4
TX TUBE OD	3/8
A M.M.	77.0
AX M.M.	38.9
AY M.M.	37.0
C M.M.	21.8
CX M.M.	19.3
D M.M.	24.4
DX M.M.	16.8
E MIN. M.M.	7.1
F A/F M.M.	27
G A/F M.M.	28.5
GX A/F M.M.	17
H M.M.	59.4
HX M.M.	29.7
HY M.M.	29.7
MATERIAL	STAINLESS STEEL

N2603-12-06-12-SS

$519.50

Attribute: N2603-12-06-12-SS (12IN-06IN-12I...)

Stock Status: True

T TUBE OD	3/4
TX TUBE OD	3/8
A M.M.	77.0
AX M.M.	39.9
AY M.M.	37.1
C M.M.	21.8
CX M.M.	19.3
D M.M.	24.4
DX M.M.	16.8
E MIN. M.M.	7.1
F A/F M.M.	27
G A/F M.M.	28.5
GX A/F M.M.	17
H M.M.	59.4
HX M.M.	29.7
HY M.M.	29.7
MATERIAL	STAINLESS STEEL

N2603-12-08-08-SS

$519.50

Attribute: N2603-12-08-08-SS (12IN-08IN-08I...)

Stock Status: True

T TUBE OD	3/4
TX TUBE OD	1/2
A M.M.	79.8
AX M.M.	39.9
AY M.M.	39.9
C M.M.	21.8
CX M.M.	21.8
D M.M.	24.4
DX M.M.	22.9
E MIN. M.M.	10.4
F A/F M.M.	27
G A/F M.M.	28.5
GX A/F M.M.	22
H M.M.	59.4
HX M.M.	29.7
HY M.M.	29.7
MATERIAL	STAINLESS STEEL

N2603-12-08-12-SS

$519.50

Attribute: N2603-12-08-12-SS (12IN-08IN-12I...)

Stock Status: True

T TUBE OD	3/4
TX TUBE OD	1/2
A M.M.	79.8
AX M.M.	39.9
AY M.M.	39.9
C M.M.	21.8
CX M.M.	21.
D M.M.	24.4
DX M.M.	22.9
E MIN. M.M.	10.4
F A/F M.M.	27
G A/F M.M.	28.5
GX A/F M.M.	22
H M.M.	59.4
HX M.M.	29.7
HY M.M.	29.7
MATERIAL	STAINLESS STEEL

N2603-12-12-06-SS

$618.19

Attribute: N2603-12-12-06-SS (12IN-12IN-06I...)

Stock Status: True

T TUBE OD	3/4
TX TUBE OD	3/8
A M.M.	79.8
AX M.M.	39.9
AY M.M.	37.0
C M.M.	21.8
CX M.M.	19.3
D M.M.	24.4
DX M.M.	16.8
E MIN. M.M.	7.1
F A/F M.M.	27
G A/F M.M.	28.5
GX A/F M.M.	17
H M.M.	59.4
HX M.M.	29.7
HY M.M.	29.7
MATERIAL	STAINLESS STEEL

N2603-12-12-08-SS

$618.19

Attribute: N2603-12-12-08-SS (12IN-12IN-08I...)

Stock Status: True

T TUBE OD	3/4
TX TUBE OD	1/2
A M.M.	79.8
AX M.M.	39.9
AY M.M.	39.9
C M.M.	21.8
CX M.M.	21.8
D M.M.	24.4
DX M.M.	22.9
E MIN. M.M.	10.4
F A/F M.M.	27
G A/F M.M.	28.5
GX A/F M.M.	22
H M.M.	59.4
HX M.M.	29.7
HY M.M.	29.7
MATERIAL	STAINLESS STEEL

N2603-16-06-06-SS

$1,106.02

Attribute: N2603-16-06-06-SS (16IN-06IN-06I...)

Stock Status: True

T TUBE OD	1
TX TUBE OD	3/8
A M.M.	99.9
AX M.M.	39.9
AY M.M.	41.9
C M.M.	26.4
CX M.M.	19.3
D M.M.	31.2
DX M.M.	16.8
E MIN. M.M.	7.1
F A/F M.M.	35
G A/F M.M.	38
GX A/F M.M.	17
H M.M.	71.3
HX M.M.	36.8
HY M.M.	34.5
MATERIAL	STAINLESS STEEL

N2603-16-06-16-SS

$1,106.02

Attribute: N2603-16-06-16-SS (16IN-06IN-16I...)

Stock Status: True

T TUBE OD	1
TX TUBE OD	3/8
A M.M.	98.9
AX M.M.	49.0
AY M.M.	41.9
C M.M.	26.4
CX M.M.	19.3
D M.M.	31.2
DX M.M.	16.8
E MIN. M.M.	7.1
F A/F M.M.	35
G A/F M.M.	38
GX A/F M.M.	17
H M.M.	71.3
HX M.M.	36.8
HY M.M.	34.5
MATERIAL	STAINLESS STEEL

N2603-16-08-08-SS

$1,106.02

Attribute: N2603-16-08-08-SS (16IN-08IN-08I...)

Stock Status: True

T TUBE OD	1
TX TUBE OD	1/2
A M.M.	93.7
AX M.M.	49.0
AY M.M.	44.7
C M.M.	26.4
CX M.M.	22.9
D M.M.	31.2
DX M.M.	21.8
E MIN. M.M.	10.4
F A/F M.M.	35
G A/F M.M.	38
GX A/F M.M.	22
H M.M.	71.3
HX M.M.	36.8
HY M.M.	34.5
MATERIAL	STAINLESS STEEL

N2603-16-08-16-SS

$1,106.02

Attribute: N2603-16-08-16-SS (16IN-08IN-16I...)

Stock Status: True

T TUBE OD	1
TX TUBE OD	1/2
A M.M.	93.7
AX M.M.	49.0
AY M.M.	44.7
C M.M.	26.4
CX M.M.	21.8
D M.M.	31.2
DX M.M.	21.8
E MIN. M.M.	10.4
F A/F M.M.	35
G A/F M.M.	38
GX A/F M.M.	22
H M.M.	71.3
HX M.M.	36.8
HY M.M.	34.5
MATERIAL	STAINLESS STEEL

N2603-16-12-12-SS

$1,321.03

Attribute: N2603-16-12-12-SS (16IN-12IN-12I...)

Stock Status: True

T TUBE OD	1
TX TUBE OD	3/4
A M.M.	93.7
AX M.M.	49.0
AY M.M.	44.7
C M.M.	26.4
CX M.M.	24.4
D M.M.	31.2
DX M.M.	24.4
E MIN. M.M.	15.8
F A/F M.M.	35
G A/F M.M.	38
GX A/F M.M.	28.5
H M.M.	71.3
HX M.M.	36.8
HY M.M.	34.5
MATERIAL	STAINLESS STEEL

N2603-16-12-16-SS

$1,438.47

Attribute: N2603-16-12-16-SS (16IN-12IN-16I...)

Stock Status: True

T TUBE OD	1
TX TUBE OD	3/4
A M.M.	93.7
AX M.M.	49.0
AY M.M.	44.7
C M.M.	26.4
CX M.M.	21.8
D M.M.	31.2
DX M.M.	24.4
E MIN. M.M.	15.8
F A/F M.M.	35
G A/F M.M.	38
GX A/F M.M.	28.5
H M.M.	71.3
HX M.M.	36.8
HY M.M.	34.5
MATERIAL	STAINLESS STEEL

N2603-16-16-06-SS

$1,316.14

Attribute: N2603-16-16-06-SS (16IN-16IN-06I...)

Stock Status: True

T TUBE OD	1
TX TUBE OD	3/8
A M.M.	98.0
AX M.M.	49.0
AY M.M.	41.9
C M.M.	26.4
CX M.M.	19.3
D M.M.	31.2
DX M.M.	16.8
E MIN. M.M.	7.1
F A/F M.M.	35
G A/F M.M.	38
GX A/F M.M.	17
H M.M.	73.6
HX M.M.	36.8
HY M.M.	34.5
MATERIAL	STAINLESS STEEL

N2603-16-16-08-SS

$1,316.14

Attribute: N2603-16-16-08-SS (16IN-16IN-08I...)

Stock Status: True

T TUBE OD	1
TX TUBE OD	1/2
A M.M.	98.0
AX M.M.	49.0
AY M.M.	44.7
C M.M.	26.4
CX M.M.	22.9
D M.M.	31.2
DX M.M.	21.8
E MIN. M.M.	10.4
F A/F M.M.	35
G A/F M.M.	38
GX A/F M.M.	22
H M.M.	73.6
HX M.M.	36.8
HY M.M.	34.5
MATERIAL	STAINLESS STEEL

N2603-16-16-12-SS

$1,316.14

Attribute: N2603-16-16-12-SS (16IN-16IN-12I...)

Stock Status: True

T TUBE OD	1
TX TUBE OD	3/4
A M.M.	98.0
AX M.M.	49.0
AY M.M.	44.7
C M.M.	26.4
CX M.M.	24.4
D M.M.	31.2
DX M.M.	24.4
E MIN. M.M.	15.8
F A/F M.M.	35
G A/F M.M.	38
GX A/F M.M.	28.5
H M.M.	73.6
HX M.M.	36.8
HY M.M.	34.5
MATERIAL	STAINLESS STEEL

Connections	Instrumentation
Shape	Tee

ID	10154928
Category	Double Ferrule Tube Fittings
