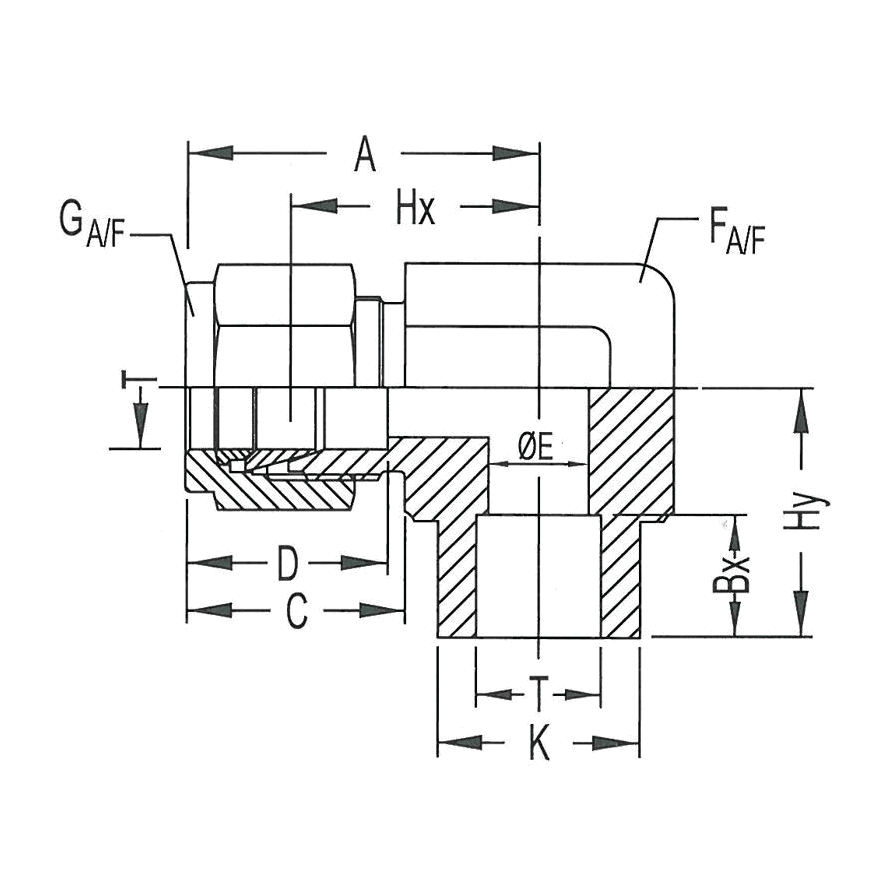

N2526

Attribute: N2526-04-04-SS (04IN-04SW 90 Stn...)

Stock Status: True

T TUBE OD	1/4
A M.M.	27.0
BX M.M.	7.9
C M.M.	17.8
D M.M.	15.3
E MIN. M.M.	4.8
F A/F M.M.	14
G A/F M.M.	14
HX M.M.	19.6
HY M.M.	19.6
K M.M.	12.7
MATERIAL	STAINLESS STEEL

Attribute: N2526-06-06-SS (06IN-06SW 90 Stn...)

Stock Status: True

T TUBE OD	3/8
A M.M.	30.5
BX M.M.	9.6
C M.M.	19.3
D M.M.	16.8
E MIN. M.M.	7.1
F A/F M.M.	16
G A/F M.M.	17
HX M.M.	23.1
HY M.M.	23.1
K M.M.	15.8
MATERIAL	STAINLESS STEEL

Attribute: N2526-08-08-SS (08IN-08SW 90 Stn...)

Stock Status: True

T TUBE OD	1/2
A M.M.	36.0
BX M.M.	12.7
C M.M.	21.8
D M.M.	22.9
E MIN. M.M.	10.4
F A/F M.M.	22
G A/F M.M.	22
HX M.M.	25.9
HY M.M.	25.9
K M.M.	20.6
MATERIAL	STAINLESS STEEL

Attribute: N2526-12-12-SS (12IN-12SW 90 Stn...)

Stock Status: True

T TUBE OD	34
A M.M.	39.9
BX M.M.	14.3
C M.M.	21.8
D M.M.	24.4
E MIN. M.M.	15.8
F A/F M.M.	27
G A/F M.M.	28.5
HX M.M.	29.7
HY M.M.	29.7
K M.M.	27.0
MATERIAL	STAINLESS STEEL

Attribute: N2526-16-16-SS (16IN-16SW 90 Stn...)

Stock Status: True

T TUBE OD	1
A M.M.	49.0
BX M.M.	19.1
C M.M.	26.4
D M.M.	31.2
E MIN. M.M.	22.3
F A/F M.M.	35
G A/F M.M.	38
HX M.M.	36.8
HY M.M.	36.8
K M.M.	35.0
MATERIAL	STAINLESS STEEL
