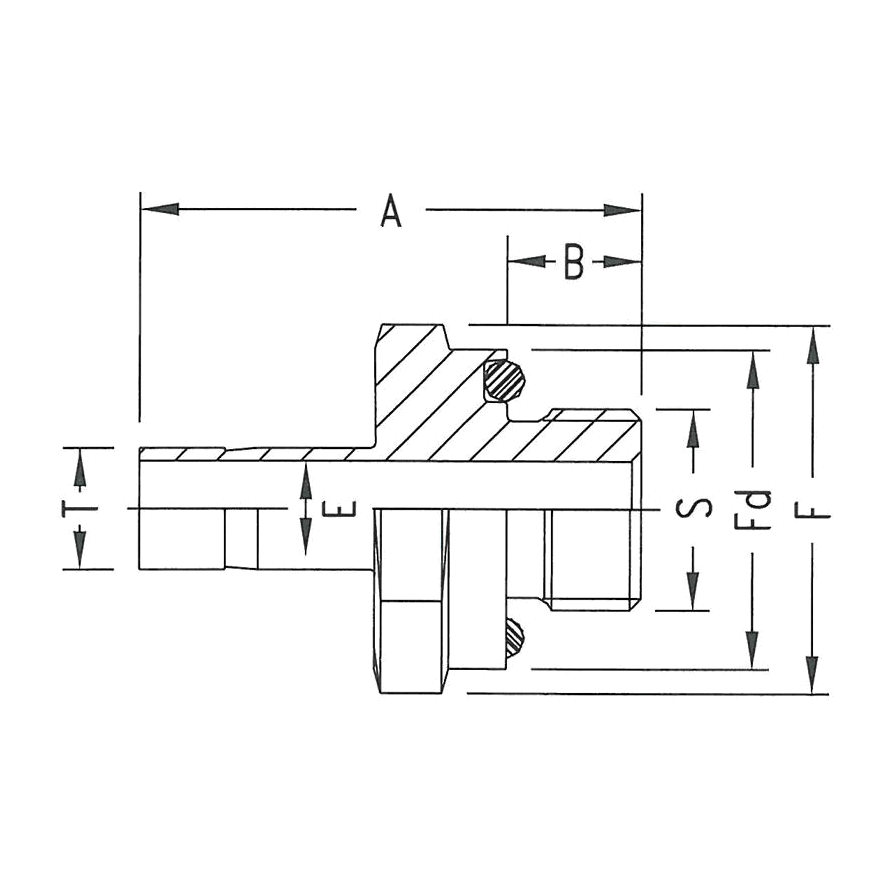

N2429

Attribute: N2429-02-02-SS (02STDPIPE-02MORB...)

Stock Status: True

S UNF MALE	5/16-24
T TUBE OD	1/8
A M.M.	32.5
B M.M.	8.6
E MIN. M.M.	2.4
F M.M.	14
FD A/F M.M.	13.8
O RING PART NO.	4001-02
MATERIAL	STAINLESS STEEL

Attribute: N2429-04-04-SS (04STDPIPE-04MORB...)

Stock Status: True

S UNF MALE	7/16-24
T TUBE OD	1/4
A M.M.	39.2
B M.M.	10.4
E MIN. M.M.	4.8
F M.M.	19
FD A/F M.M.	18.8
O RING PART NO.	4001-04
MATERIAL	STAINLESS STEEL

Attribute: N2429-05-05-SS (05STDPIPE-05MORB...)

Stock Status: True

S UNF MALE	1/2-24
T TUBE OD	5/16
A M.M.	41.7
B M.M.	11.2
E MIN. M.M.	6.3
F M.M.	22
FD A/F M.M.	21.8
O RING PART NO.	4001-05
MATERIAL	STAINLESS STEEL

Attribute: N2429-06-06-SS (06STDPIPE-06MORB...)

Stock Status: True

S UNF MALE	9/16-24
T TUBE OD	3/8
A M.M.	43.2
B M.M.	12.0
E MIN. M.M.	7.1
F M.M.	24
FD A/F M.M.	23.6
O RING PART NO.	4001-06
MATERIAL	STAINLESS STEEL

Attribute: N2429-08-08-SS (08STDPIPE-08MORB...)

Stock Status: True

S UNF MALE	3/4-24
T TUBE OD	1/2
A M.M.	49.5
B M.M.	12.0
E MIN. M.M.	9.9
F M.M.	27
FD A/F M.M.	26.8
O RING PART NO.	4001-08
MATERIAL	STAINLESS STEEL

Attribute: N2429-12-12-SS (12STDPIPE-12MORB...)

Stock Status: True

S UNF MALE	1-1/16-12
T TUBE OD	3/4
A M.M.	55.0
B M.M.	14.3
E MIN. M.M.	15.0
F M.M.	38
FD A/F M.M.	37.8
O RING PART NO.	4001-12
MATERIAL	STAINLESS STEEL

Attribute: N2429-16-16-SS (16STDPIPE-16MORB...)

Stock Status: True

S UNF MALE	1-5/16-12
T TUBE OD	1
A M.M.	62.5
B M.M.	14.3
E MIN. M.M.	19.8
F M.M.	45
FD A/F M.M.	44.0
O RING PART NO.	4001-16
MATERIAL	STAINLESS STEEL
