O-Rings and Seals

4005

Scraped 2026-02-15 08:27:27

Description

Description

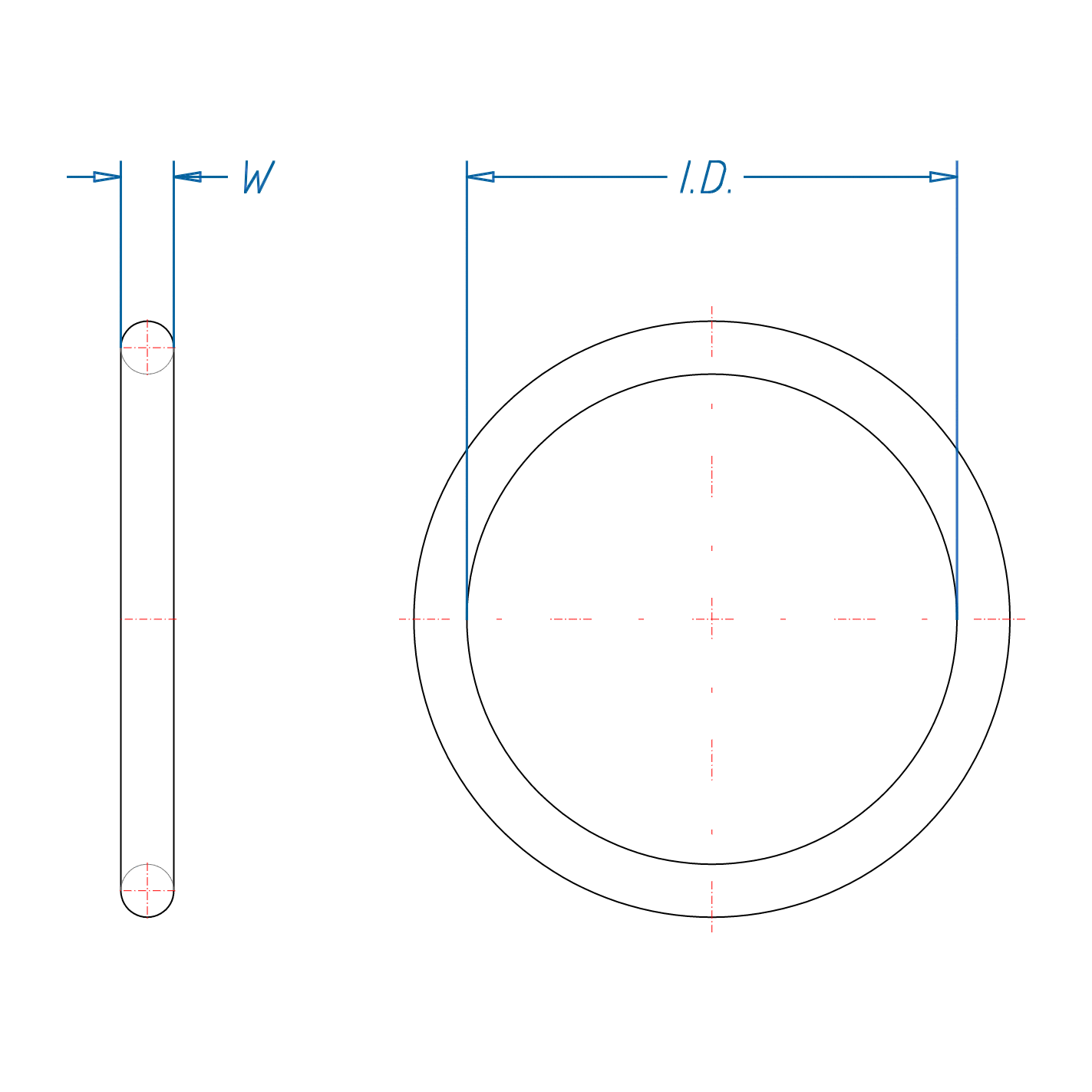

Flange O-Ring

Variations (8)

4005-08

$0.90

Attribute: 4005-08 (08 Flange Head O-Ring, ...)

Stock Status: True

TUBE O.D.1/2
W WIDTH0.14
I.D.0.734
MATERIALBUNA-N

4005-10

$0.93

Attribute: 4005-10 (10 Flange Head O-Ring, ...)

Stock Status: True

TUBE O.D.5/8
W WIDTH0.14
I.D.0.859
MATERIALBUNA-N

4005-12

$1.03

Attribute: 4005-12 (12 Flange Head O-Ring, ...)

Stock Status: True

TUBE O.D.3/4
W WIDTH0.14
I.D.0.984
MATERIALBUNA-N

4005-16

$1.45

Attribute: 4005-16 (16 Flange Head O-Ring, ...)

Stock Status: True

TUBE O.D.1
W WIDTH0.14
I.D.1.296
MATERIALBUNA-N

4005-20

$1.76

Attribute: 4005-20 (20 Flange Head O-Ring, ...)

Stock Status: True

TUBE O.D.1 1/4
W WIDTH0.14
I.D.1.484
MATERIALBUNA-N

4005-24

$2.14

Attribute: 4005-24 (24 Flange Head O-Ring, ...)

Stock Status: True

TUBE O.D.1 1/2
W WIDTH0.14
I.D.1.859
MATERIALBUNA-N

4005-32

$2.66

Attribute: 4005-32 (32 Flange Head O-Ring, ...)

Stock Status: True

TUBE O.D.2
W WIDTH0.14
I.D.2.234
MATERIALBUNA-N

4005-40

$3.41

Attribute: 4005-40 (40 Flange Head O-Ring, ...)

Stock Status: True

TUBE O.D.2 1/2
W WIDTH0.14
I.D.2.734
MATERIALBUNA-N

General Attributes

Connections Other
Shape Other

PDF Documents

Download CAD and Drawings Open PDF
