Description

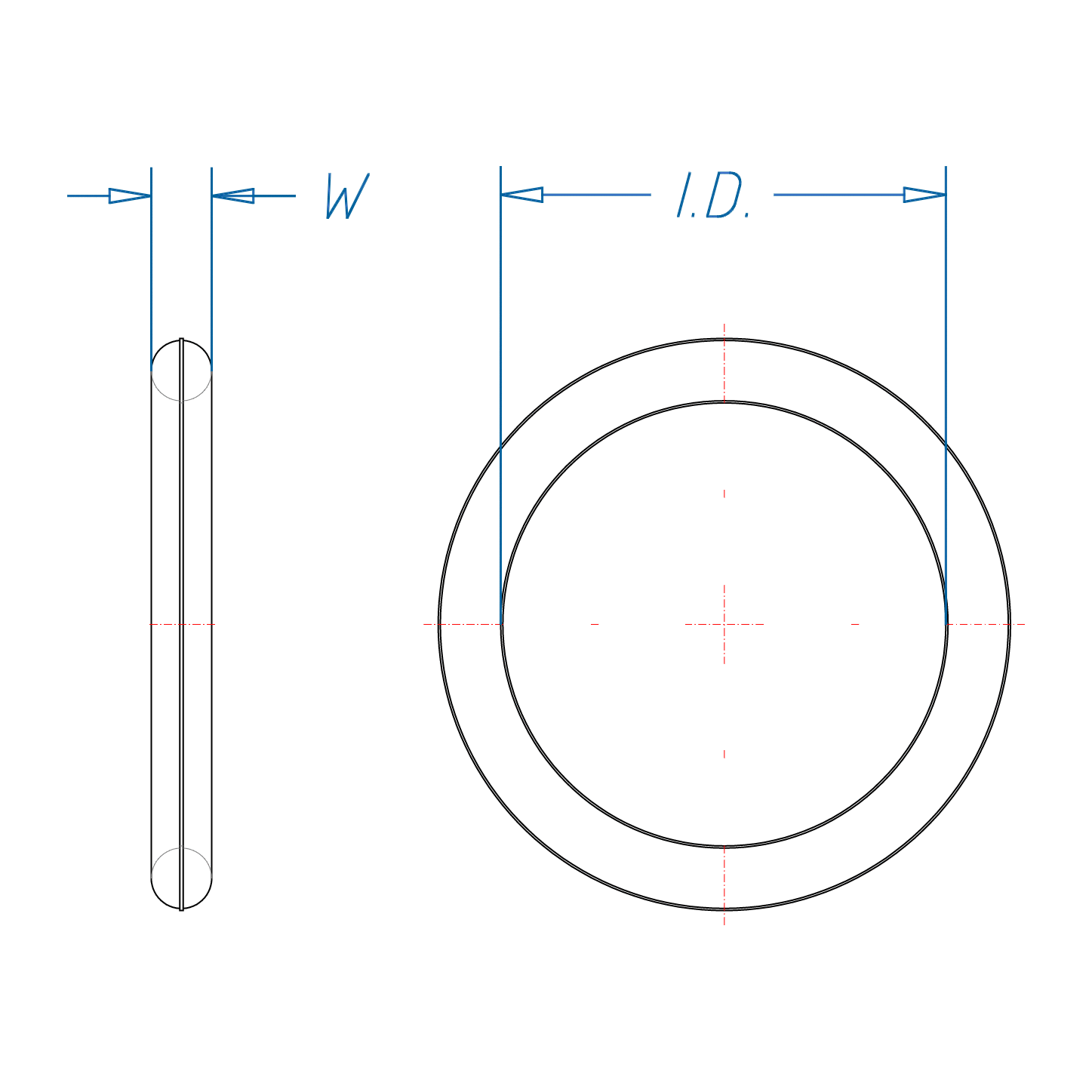

Viton O-Ring
Description
Variations (13)
4001-02
$0.62Attribute: 4001-02 (02 MORB/SAE Port O-Ring...)
Stock Status: True
| THREAD B1 TYPE | O-RING |
|---|---|
| THREAD B1 SIZE | TUBE OD 1/8 |
| THREAD B1 DRILL IN | ID 0.239 |
| THREAD B1 SPECIFICATION | VITON |
| OVERALL LENGTH L IN | 0.064 |
| SHAPE | O-RING |
| BODY MATERIAL | VITON |
| RAW MATERIAL TYPE | VITON |
| O-RING / SEAL MATERIAL | VITON |
| WEIGHT LBS | 0.0001 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
4001-03
$0.66Attribute: 4001-03 (03 MORB/SAE Port O-Ring...)
Stock Status: True
| THREAD B1 TYPE | O-RING |
|---|---|
| THREAD B1 SIZE | TUBE OD 3/16 |
| THREAD B1 DRILL IN | ID 0.301 |
| THREAD B1 SPECIFICATION | VITON |
| OVERALL LENGTH L IN | 0.064 |
| SHAPE | O-RING |
| BODY MATERIAL | VITON |
| RAW MATERIAL TYPE | VITON |
| O-RING / SEAL MATERIAL | VITON |
| WEIGHT LBS | 0.0002 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
4001-04
$0.69Attribute: 4001-04 (04 MORB/SAE Port O-Ring...)
Stock Status: True
| THREAD B1 TYPE | O-RING |
|---|---|
| THREAD B1 SIZE | TUBE OD 1/4 |
| THREAD B1 DRILL IN | ID 0.351 |
| THREAD B1 SPECIFICATION | VITON |
| OVERALL LENGTH L IN | 0.072 |
| SHAPE | O-RING |
| BODY MATERIAL | VITON |
| RAW MATERIAL TYPE | VITON |
| O-RING / SEAL MATERIAL | VITON |
| WEIGHT LBS | 0.0004 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
4001-05
$0.76Attribute: 4001-05 (05 MORB/SAE Port O-Ring...)
Stock Status: True
| THREAD B1 TYPE | O-RING |
|---|---|
| THREAD B1 SIZE | TUBE OD 5/16 |
| THREAD B1 DRILL IN | ID 0.351 |
| THREAD B1 SPECIFICATION | VITON |
| OVERALL LENGTH L IN | 0.072 |
| SHAPE | O-RING |
| BODY MATERIAL | VITON |
| RAW MATERIAL TYPE | VITON |
| O-RING / SEAL MATERIAL | VITON |
| WEIGHT LBS | 0.0001 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
4001-06
$0.93Attribute: 4001-06 (06 MORB/SAE Port O-Ring...)
Stock Status: True
| THREAD B1 TYPE | O-RING |
|---|---|
| THREAD B1 SIZE | TUBE OD 3/8 |
| THREAD B1 DRILL IN | ID 0.468 |
| THREAD B1 SPECIFICATION | VITON |
| OVERALL LENGTH L IN | 0.078 |
| SHAPE | O-RING |
| BODY MATERIAL | VITON |
| RAW MATERIAL TYPE | VITON |
| O-RING / SEAL MATERIAL | VITON |
| WEIGHT LBS | 0.0005 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
4001-08
$0.97Attribute: 4001-08 (08 MORB/SAE Port O-Ring...)
Stock Status: True
| THREAD B1 TYPE | O-RING |
|---|---|
| THREAD B1 SIZE | TUBE OD 1/2 |
| THREAD B1 DRILL IN | ID 0.644 |
| THREAD B1 SPECIFICATION | VITON |
| OVERALL LENGTH L IN | 0.087 |
| SHAPE | O-RING |
| BODY MATERIAL | VITON |
| RAW MATERIAL TYPE | VITON |
| O-RING / SEAL MATERIAL | VITON |
| WEIGHT LBS | 0.0009 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
4001-10
$1.31Attribute: 4001-10 (10 MORB/SAE Port O-Ring...)
Stock Status: True
| THREAD B1 TYPE | O-RING |
|---|---|
| THREAD B1 SIZE | TUBE OD 5/8 |
| THREAD B1 DRILL IN | ID 0.755 |
| THREAD B1 SPECIFICATION | VITON |
| OVERALL LENGTH L IN | 0.097 |
| SHAPE | O-RING |
| BODY MATERIAL | VITON |
| RAW MATERIAL TYPE | VITON |
| O-RING / SEAL MATERIAL | VITON |
| WEIGHT LBS | 0.0013 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
4001-12
$2.07Attribute: 4001-12 (12 MORB/SAE Port O-Ring...)
Stock Status: True
| THREAD B1 TYPE | O-RING |
|---|---|
| THREAD B1 SIZE | TUBE OD 3/4 |
| THREAD B1 DRILL IN | ID 0.924 |
| THREAD B1 SPECIFICATION | VITON |
| OVERALL LENGTH L IN | 0.116 |
| SHAPE | O-RING |
| BODY MATERIAL | VITON |
| RAW MATERIAL TYPE | VITON |
| O-RING / SEAL MATERIAL | VITON |
| WEIGHT LBS | 0.0023 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
4001-14
$2.93Attribute: 4001-14 (14 MORB/SAE Port O-Ring...)
Stock Status: True
| THREAD B1 TYPE | O-RING |
|---|---|
| THREAD B1 SIZE | TUBE OD 7/8 |
| THREAD B1 DRILL IN | ID 1.048 |
| THREAD B1 SPECIFICATION | VITON |
| OVERALL LENGTH L IN | 0.116 |
| SHAPE | O-RING |
| BODY MATERIAL | VITON |
| RAW MATERIAL TYPE | VITON |
| O-RING / SEAL MATERIAL | VITON |
| WEIGHT LBS | 0.0027 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
4001-16
$3.55Attribute: 4001-16 (16 MORB/SAE Port O-Ring...)
Stock Status: True
| THREAD B1 TYPE | O-RING |
|---|---|
| THREAD B1 SIZE | TUBE OD 1 |
| THREAD B1 DRILL IN | ID 1.171 |
| THREAD B1 SPECIFICATION | VITON |
| OVERALL LENGTH L IN | 0.116 |
| SHAPE | O-RING |
| BODY MATERIAL | VITON |
| RAW MATERIAL TYPE | VITON |
| O-RING / SEAL MATERIAL | VITON |
| WEIGHT LBS | 0.0032 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
4001-20
$4.17Attribute: 4001-20 (20 MORB/SAE Port O-Ring...)
Stock Status: True
| THREAD B1 TYPE | O-RING |
|---|---|
| THREAD B1 SIZE | TUBE OD 1-1/4 |
| THREAD B1 DRILL IN | ID 1.475 |
| THREAD B1 SPECIFICATION | VITON |
| OVERALL LENGTH L IN | 0.118 |
| SHAPE | O-RING |
| BODY MATERIAL | VITON |
| RAW MATERIAL TYPE | VITON |
| O-RING / SEAL MATERIAL | VITON |
| WEIGHT LBS | 0.0035 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
4001-24
$4.45Attribute: 4001-24 (24 MORB/SAE Port O-Ring...)
Stock Status: True
| THREAD B1 TYPE | O-RING |
|---|---|
| THREAD B1 SIZE | TUBE OD 1-1/2 |
| THREAD B1 DRILL IN | ID 1.720 |
| THREAD B1 SPECIFICATION | VITON |
| OVERALL LENGTH L IN | 0.118 |
| SHAPE | O-RING |
| BODY MATERIAL | VITON |
| RAW MATERIAL TYPE | VITON |
| O-RING / SEAL MATERIAL | VITON |
| WEIGHT LBS | 0.01 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
4001-32
$6.93Attribute: 4001-32 (32 MORB/SAE Port O-Ring...)
Stock Status: True
| THREAD B1 TYPE | O-RING |
|---|---|
| THREAD B1 SIZE | TUBE OD 2 |
| THREAD B1 DRILL IN | ID 2.337 |
| THREAD B1 SPECIFICATION | VITON |
| OVERALL LENGTH L IN | 0.118 |
| SHAPE | O-RING |
| BODY MATERIAL | VITON |
| RAW MATERIAL TYPE | VITON |
| O-RING / SEAL MATERIAL | VITON |
| WEIGHT LBS | 0.01 |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | Other |
|---|---|
| Shape | Other |
PDF Documents
Download CAD and Drawings
Open PDF
