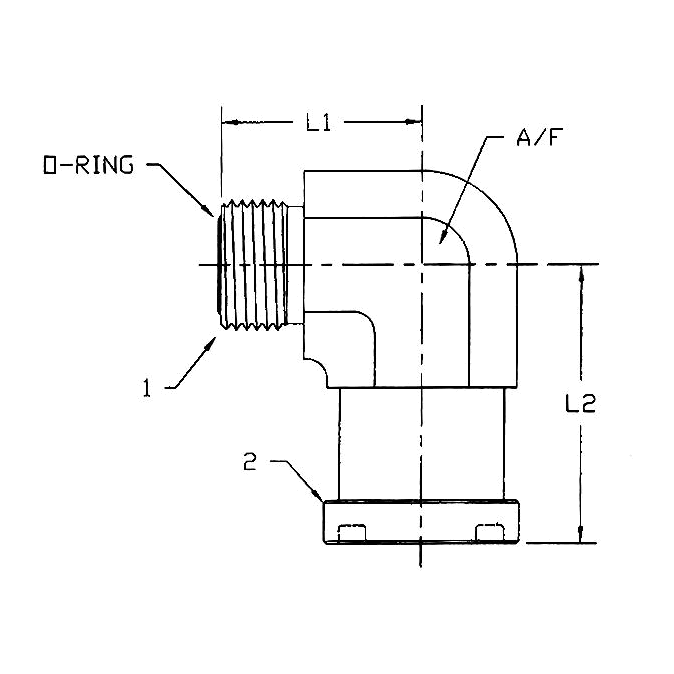

FS1804-FG

Attribute: FS1804-12-12-FG (12MFS-12Flange ...)

Stock Status: True

TUBE O.D.	3/4
1 THREAD	1-3/16-12
2 FLANGE	3/4
L1 (IN.)	1.660
L2 (IN.)	2.130
A/F (IN.)	1.062
MATERIAL	STEEL FORGED

Attribute: FS1804-12-16-FG (12MFS-16Flange ...)

Stock Status: True

TUBE O.D.	3/4
1 THREAD	1-3/16-12
2 FLANGE	1
L1 (IN.)	1.810
L2 (IN.)	2.370
A/F (IN.)	1.312
MATERIAL	STEEL FORGED

Attribute: FS1804-16-12-FG (16MFS-12Flange ...)

Stock Status: True

TUBE O.D.	1
1 THREAD	1-7/16-12
2 FLANGE	3/4
L1 (IN.)	1.660
L2 (IN.)	2.130
A/F (IN.)	1.062
MATERIAL	STEEL FORGED

Attribute: FS1804-16-16-FG (16MFS-16Flange ...)

Stock Status: True

TUBE O.D.	1
1 THREAD	1-7/16-12
2 FLANGE	1
L1 (IN.)	1.810
L2 (IN.)	2.370
A/F (IN.)	1.312
MATERIAL	STEEL FORGED

Attribute: FS1804-16-20-FG (16MFS-20Flange ...)

Stock Status: True

TUBE O.D.	1
1 THREAD	1 7/16-12 UN
2 FLANGE	1 1/4
L1 (IN.)	2.100
L2 (IN.)	2.760
A/F (IN.)	1.625
MATERIAL	STEEL FORGED

Attribute: FS1804-20-16-FG (20MFS-16Flange ...)

Stock Status: True

TUBE O.D.	1-1/4
1 THREAD	1-11/16-12
2 FLANGE	1
L1 (IN.)	1.810
L2 (IN.)	2.370
A/F (IN.)	1.312
MATERIAL	STEEL FORGED

Attribute: FS1804-20-20-FG (20MFS-20Flange ...)

Stock Status: True

TUBE O.D.	1-1/4
1 THREAD	1-11/16-12
2 FLANGE	1-1/4
L1 (IN.)	2.060
L2 (IN.)	2.750
A/F (IN.)	1.625
MATERIAL	STEEL FORGED

Attribute: FS1804-20-24-FG (20MFS-24Flange ...)

Stock Status: True

TUBE O.D.	1-1/4
1 THREAD	1-11/16-12
2 FLANGE	1-1/2
L1 (IN.)	2.330
L2 (IN.)	3.150
A/F (IN.)	1.875
MATERIAL	STEEL FORGED

Attribute: FS1804-24-20-FG (24MFS-20Flange ...)

Stock Status: True

TUBE O.D.	1-1/2
1 THREAD	2-12
2 FLANGE	1-1/4
L1 (IN.)	2.060
L2 (IN.)	2.760
A/F (IN.)	1.875
MATERIAL	STEEL FORGED

Attribute: FS1804-24-24-FG (24MFS-24Flange ...)

Stock Status: True

TUBE O.D.	1-1/2
1 THREAD	2-12
2 FLANGE	1-1/2
L1 (IN.)	2.330
L2 (IN.)	3.150
A/F (IN.)	1.875
MATERIAL	STEEL FORGED
