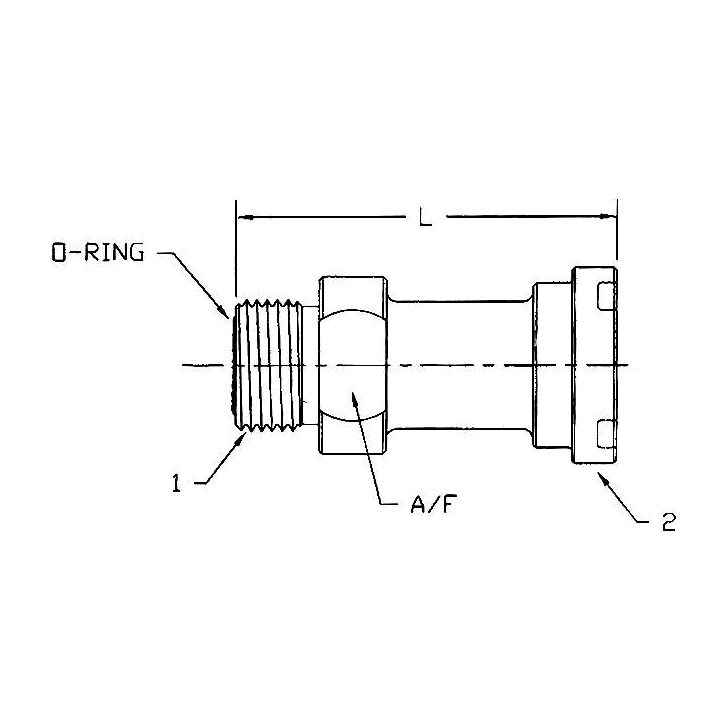

FS1800

Attribute: FS1800-08-08 (08MFS-08Flange Str...)

Stock Status: True

TUBE O.D.	1/2
1 THREAD	13/16-16
2 FLANGE	1/2
L (IN.)	2.580
A/F (IN.)	0.875
MATERIAL	STEEL FACE SEAL

Attribute: FS1800-12-12 (12MFS-12Flange Str...)

Stock Status: True

TUBE O.D.	3/4
1 THREAD	1-3/16-12
2 FLANGE	3/4
L (IN.)	2.750
A/F (IN.)	1.375
MATERIAL	STEEL FACE SEAL

Attribute: FS1800-12-16 (12MFS-16Flange Str...)

Stock Status: True

TUBE O.D.	3/4
1 THREAD	1-3/16-12
2 FLANGE	1
L (IN.)	2.800
A/F (IN.)	1.625
MATERIAL	STEEL FACE SEAL

Attribute: FS1800-16-12 (16MFS-12Flange Str...)

Stock Status: True

TUBE O.D.	1
1 THREAD	1-7/16-12
2 FLANGE	3/4
L (IN.)	2.750
A/F (IN.)	1.625
MATERIAL	STEEL FACE SEAL

Attribute: FS1800-16-16 (16MFS-16Flange Str...)

Stock Status: True

TUBE O.D.	1
1 THREAD	1-7/16-12
2 FLANGE	1
L (IN.)	2.280
A/F (IN.)	1.625
MATERIAL	STEEL FACE SEAL

Attribute: FS1800-16-20 (16MFS-20Flange Str...)

Stock Status: True

TUBE O.D.	1
1 THREAD	1-7/16-12
2 FLANGE	1-1/4
L (IN.)	3.050
A/F (IN.)	1.500
MATERIAL	STEEL FACE SEAL

Attribute: FS1800-20-16 (20MFS-16Flange Str...)

Stock Status: True

TUBE O.D.	1-1/4
1 THREAD	1-11/16-12
2 FLANGE	1
L (IN.)	3.200
A/F (IN.)	1.750
MATERIAL	STEEL FACE SEAL

Attribute: FS1800-20-20 (20MFS-20Flange Str...)

Stock Status: True

TUBE O.D.	1-1/4
1 THREAD	1-11/16-12
2 FLANGE	1-1/4
L (IN.)	3.050
A/F (IN.)	1.875
MATERIAL	STEEL FACE SEAL

Attribute: FS1800-20-24 (20MFS-24Flange Str...)

Stock Status: True

TUBE O.D.	1-1/4
1 THREAD	1-11/16-12
2 FLANGE	1-1/2
L (IN.)	3.500
A/F (IN.)	2.125
MATERIAL	STEEL FACE SEAL

Attribute: FS1800-24-24 (24MFS-24Flange Str...)

Stock Status: True

TUBE O.D.	1-1/2
1 THREAD	2-12
2 FLANGE	1-1/2
L (IN.)	3.500
A/F (IN.)	2.125
MATERIAL	STEEL FACE SEAL
