Flange Fittings

FS1703-FG

Scraped 2026-02-15 08:27:27

Description

Description

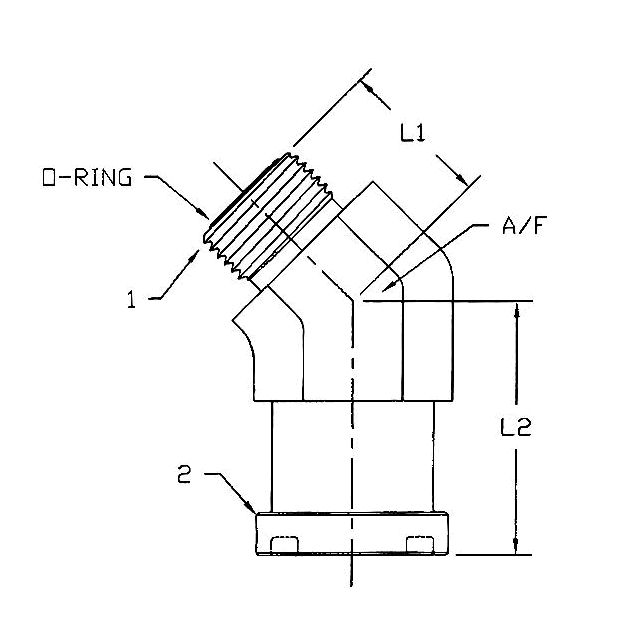

MJ-Flange 45 Code 61

Variations (5)

FS1703-12-12-FG

$99.93

Attribute: FS1703-12-12-FG (12MFS-12Flange ...)

Stock Status: True

TUBE O.D.3/4
1 THREAD1-3/16-12
2 FLANGE3/4
L1 (IN.)1.280
L2 (IN.)1.580
A/F (IN.)1.062
MATERIALSTEEL FORGED

FS1703-12-16-FG

$117.94

Attribute: FS1703-12-16-FG (12MFS-16Flange ...)

Stock Status: True

TUBE O.D.3/4
1 THREAD1-3/16-12
2 FLANGE1
L1 (IN.)1.470
L2 (IN.)1.850
A/F (IN.)1.311
MATERIALSTEEL FORGED

FS1703-16-16-FG

$105.93

Attribute: FS1703-16-16-FG (16MFS-16Flange ...)

Stock Status: True

TUBE O.D.1
1 THREAD1-7/16-12
2 FLANGE1
L1 (IN.)1.470
L2 (IN.)1.850
A/F (IN.)1.311
MATERIALSTEEL FORGED

FS1703-20-20-FG

$139.67

Attribute: FS1703-20-20-FG (20MFS-20Flange ...)

Stock Status: True

TUBE O.D.1-1/4
1 THREAD1-11/16-12
2 FLANGE1-1/4
L1 (IN.)1.590
L2 (IN.)2.040
A/F (IN.)1.625
MATERIALSTEEL FORGED

FS1703-24-24-FG

$151.34

Attribute: FS1703-24-24-FG (24MFS-24Flange ...)

Stock Status: True

TUBE O.D.1-1/2
1 THREAD2-12
2 FLANGE1-1/2
L1 (IN.)1.780
L2 (IN.)2.380
A/F (IN.)1.875
MATERIALSTEEL FORGED

General Attributes

Connections JIC, Flange
Shape Elbow

PDF Documents

Download CAD and Drawings Open PDF
