1952

Attribute: 1952-08 (08 Code 62 Split Flange...)

Stock Status: True

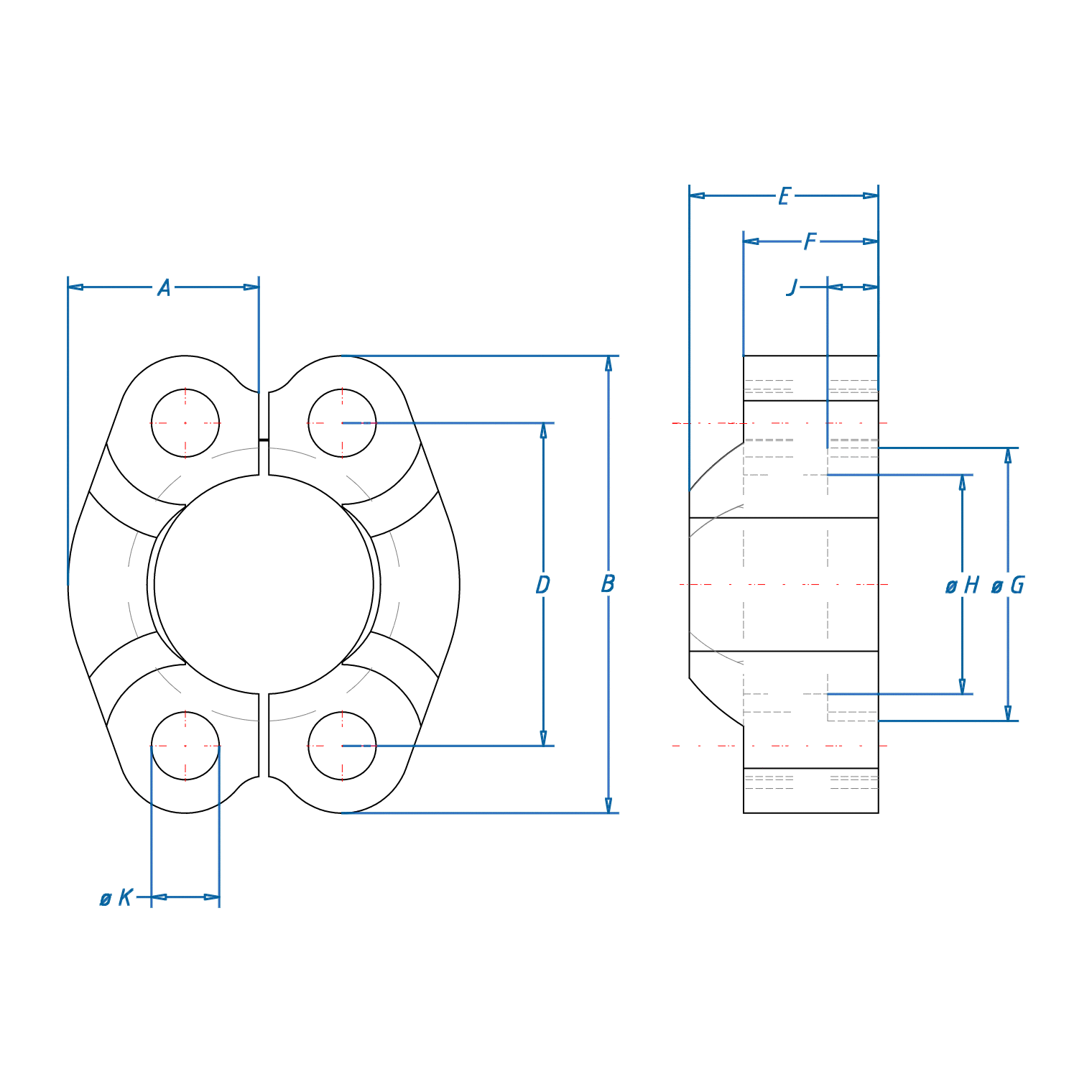

FLANGE KIT	1902-08-H
FLANGE SIZE	1/2
A .030	0.89
B .030	2.22
D .010	1.59
E .030	0.88
F .016	0.62
G .010	1.28
H .010	0.97
J .005	0.29
K .005	0.34
MATERIAL	STEEL

Attribute: 1952-12 (12 Code 62 Split Flange...)

Stock Status: True

FLANGE KIT	1902-12
FLANGE SIZE	3/4
A .030	1.14
B .030	2.81
D .010	2.00
E .030	1.12
F .016	0.75
G .010	1.66
H .010	1.28
J .005	0.33
K .005	0.41
MATERIAL	STEEL

Attribute: 1952-16 (16 Code 62 Split Flange...)

Stock Status: True

FLANGE KIT	1902-16
FLANGE SIZE	1
A .030	1.33
B .030	3.19
D .010	2.25
E .030	1.31
F .016	0.94
G .010	1.91
H .010	1.53
J .005	0.36
K .005	0.47
MATERIAL	STEEL

Attribute: 1952-20 (20 Code 62 Split Flange...)

Stock Status: True

FLANGE KIT	1902-20
FLANGE SIZE	1-1/4
A .030	1.48
B .030	3.75
D .010	2.63
E .030	1.50
F .016	1.06
G .010	2.16
H .010	1.75
J .005	0.39
K .005	0.53
MATERIAL	STEEL

Attribute: 1952-24 (24 Code 62 Split Flange...)

Stock Status: True

FLANGE KIT	1902-24
FLANGE SIZE	1-1/2
A .030	1.83
B .030	4.44
D .010	3.13
E .030	1.69
F .016	1.19
G .010	2.53
H .010	2.03
J .005	0.48
K .005	0.66
MATERIAL	STEEL

Attribute: 1952-32 (32 Code 62 Split Flange...)

Stock Status: True

FLANGE KIT	1902-32
FLANGE SIZE	2
A .030	2.20
B .030	5.25
D .010	3.81
E .030	2.06
F .016	1.44
G .010	3.16
H .010	2.66
J .005	0.48
K .005	0.78
MATERIAL	STEEL
