1933

Attribute: 1933-48-48 (48FSWP-48ORF Flange,...)

Stock Status: True

PIPE SIZE	3
FLANGE SIZE	3

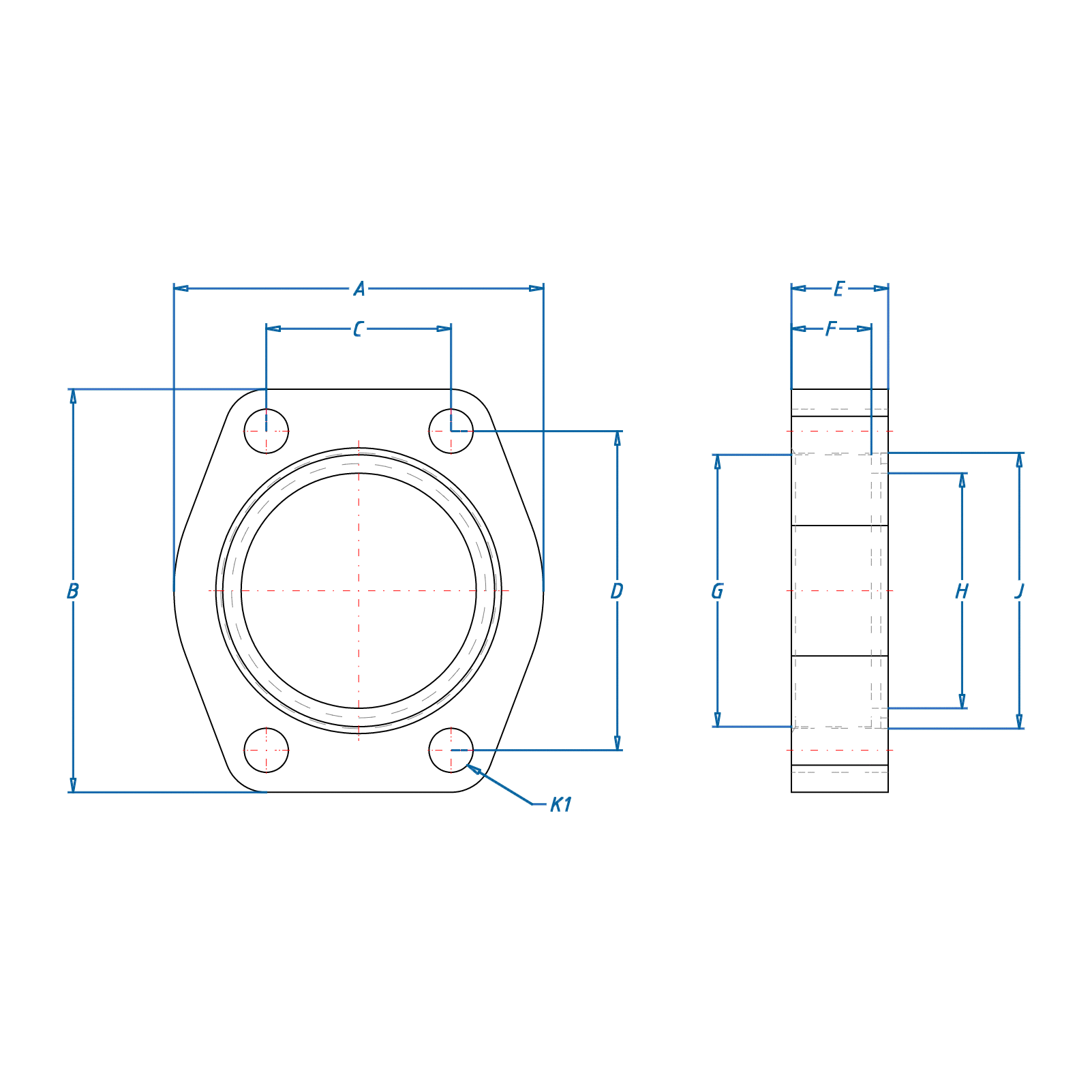

A	5.12
B	5.31
C	2.438
D	4.188
E	1.38
F	1.120
G	3.547
H	3.00
J MIN	3.615
J MAX	3.625
K1 DRILL	0.656
MATERIAL	STEEL

Attribute: 1933-56-56 (56FSWP-56ORF Flange,...)

Stock Status: True

PIPE SIZE	3-1/2
FLANGE SIZE	3-1/2
A	5.50
B	6.00
C	2.750
D	4.750
E	1.44
F	1.190
G	4.047
H	3.50
J MIN	4.095
J MAX	4.115
K1 DRILL	0.656
MATERIAL	STEEL

Attribute: 1933-64-64 (64FSWP-64ORF Flange,...)

Stock Status: True

PIPE SIZE	4
FLANGE SIZE	4
A	6.00
B	6.38
C	3.062
D	5.125
E	1.50
F	1.250
G	4.578
H	4.00
J MIN	4.595
J MAX	4.615
K1 DRILL	0.656
MATERIAL	STEEL

Attribute: 1933-80-80 (80FSWP-80ORF Flange,...)

Stock Status: True

PIPE SIZE	5
FLANGE SIZE	5
A	7.12
B	7.25
C	3.625
D	6.000
E	1.75
F	1.380
G	5.641
H	5.00
J MIN	5.595
J MAX	5.615
K1 DRILL	0.656
MATERIAL	STEEL
