1929-61

Attribute: 1929-61-08-08 (08FORB-08ORF Flan...)

Stock Status: True

PIPE SIZE	1/2
FLANGE SIZE	1/2

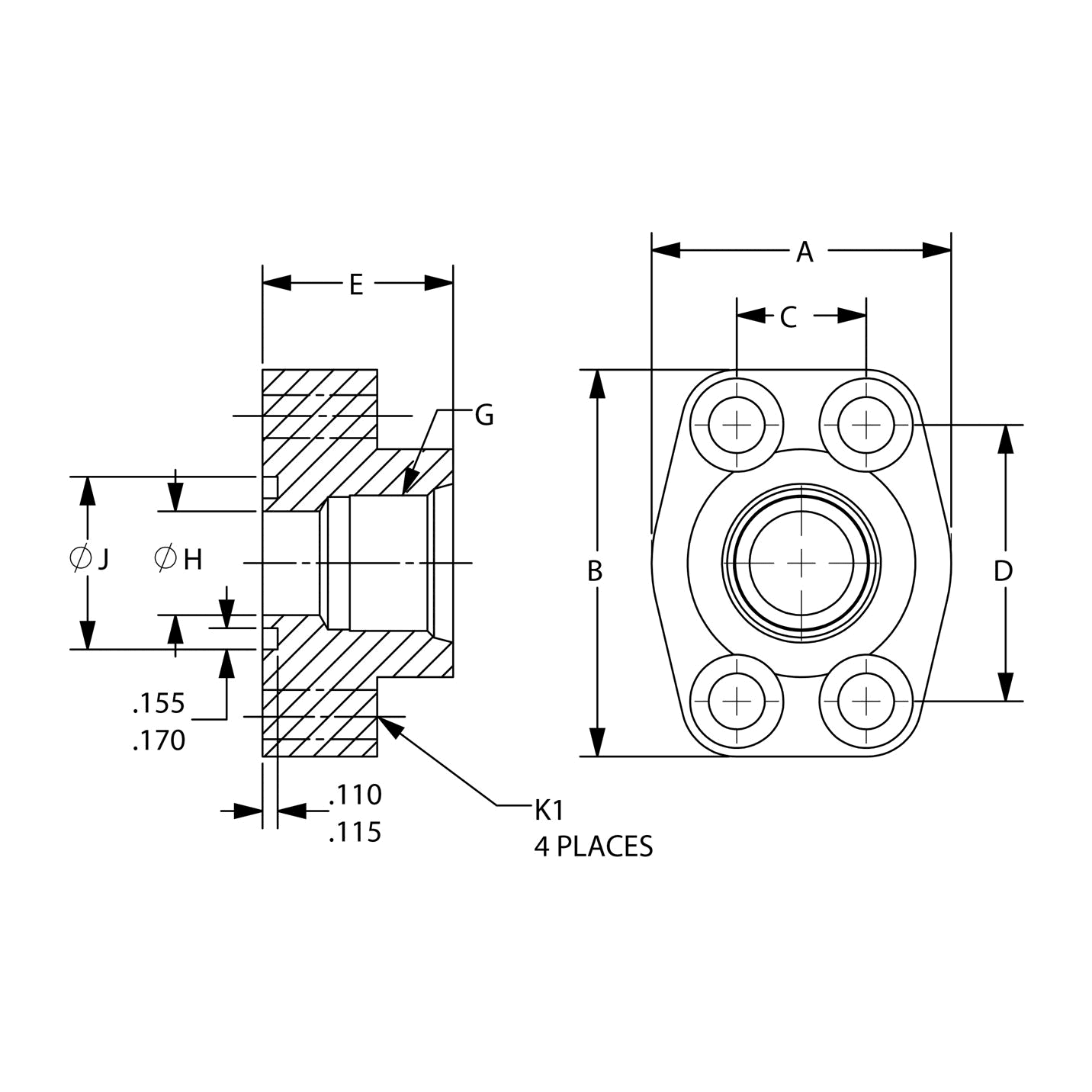

A	1.820
B	2.17
C	0.688
D	1.500
E	1.25
G THREAD	3/4-16
H	0.50
J MIN	1.000
J MAX	1.005
K1 DRILL	0.344
K2 THD.	5/16-18
MATERIAL	STEEL

Attribute: 1929-61-12-12 (12FORB-12ORF Flan...)

Stock Status: True

PIPE SIZE	3/4
FLANGE SIZE	3/4
A	2.060
B	2.69
C	0.875
D	1.875
E	1.25
G THREAD	1 1/16-12
H	0.75
J MIN	1.250
J MAX	1.255
K1 DRILL	0.406
K2 THD.	3/8-16
MATERIAL	STEEL

Attribute: 1929-61-16-16 (16FORB-16ORF Flan...)

Stock Status: True

PIPE SIZE	1
FLANGE SIZE	1
A	2.310
B	2.88
C	1.031
D	2.062
E	1.50
G THREAD	1 5/16-12
H	1.00
J MIN	1.560
J MAX	1.565
K1 DRILL	0.406
K2 THD.	3/8-16
MATERIAL	STEEL

Attribute: 1929-61-20-20 (20FORB-20ORF Flan...)

Stock Status: True

PIPE SIZE	1 1/4
FLANGE SIZE	1 1/4
A	2.880
B	3.25
C	1.188
D	2.312
E	1.50
G THREAD	1 5/8-12
H	1.25
J MIN	1.750
J MAX	1.755
K1 DRILL	0.469
K2 THD.	7/16-14
MATERIAL	STEEL

Attribute: 1929-61-24-24 (24FORB-24ORF Flan...)

Stock Status: True

PIPE SIZE	1 1/2
FLANGE SIZE	1 1/2
A	3.250
B	3.81
C	1.406
D	2.750
E	1.75
G THREAD	1 7/8-12
H	1.50
J MIN	2.115
J MAX	2.125
K1 DRILL	0.531
K2 THD.	1/2-13
MATERIAL	STEEL

Attribute: 1930-61-24-24 (24FORB-24FF Flang...)

Stock Status: True

PIPE SIZE	1 1/2
FLANGE SIZE	1 1/2
A	3.250
B	3.81
C	1.406
D	2.750
E	1.75
G THREAD	1 7/8-12
H	1.50
J MIN	2.115
J MAX	2.125
K1 DRILL	0.531
K2 THD.	1/2-13
MATERIAL	STEEL
