1928-61

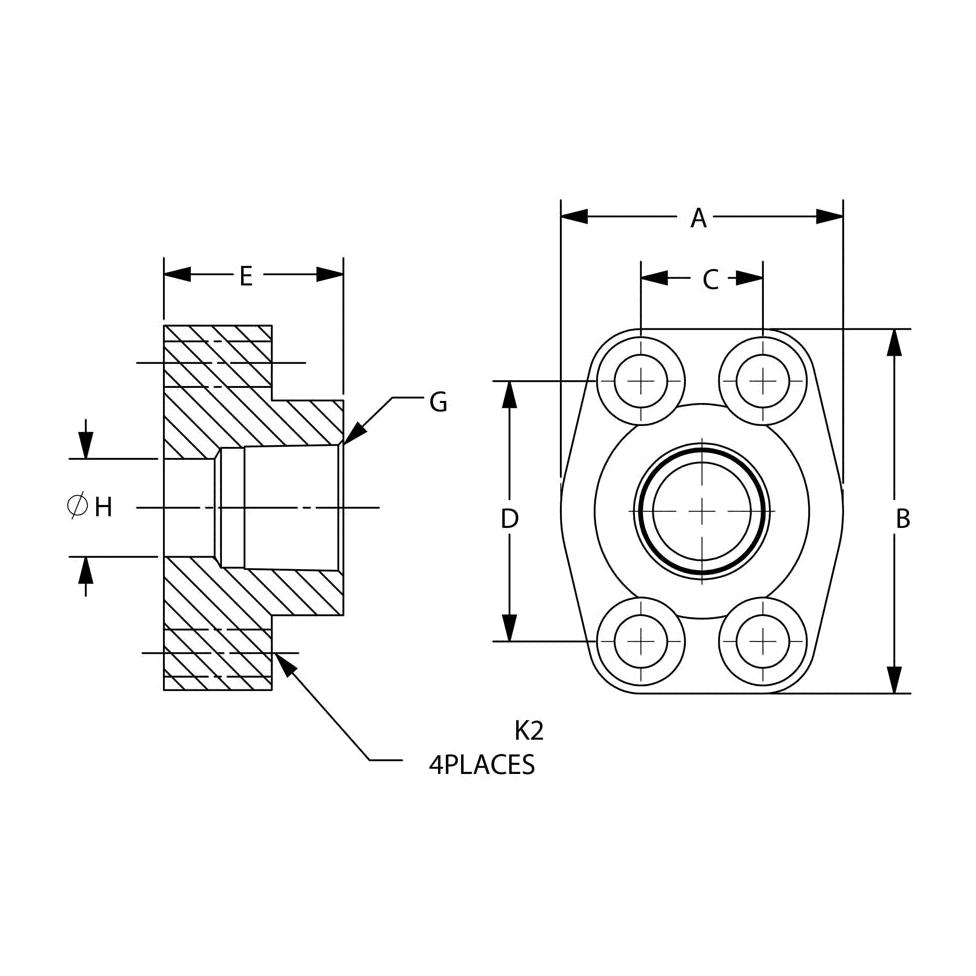

Attribute: 1928-61-08-08 (08FP-08CD61 Flat ...)

Stock Status: True

PIPE SIZE	1/2
FLANGE SIZE	1/2
A	1.82
B	2.17
C	0.688
D	1.500
E	1.25
G NPTF	1/2-14
H	0.50
J MIN	1.000
J MAX	1.005
K1 DRILL	0.344
K2 THD.	5/16-18
MATERIAL	STEEL

Attribute: 1928-61-12-12 (12FP-12CD61 Flat ...)

Stock Status: True

PIPE SIZE	3/4
FLANGE SIZE	3/4
A	2.06
B	2.69
C	0.875
D	1.875
E	1.25
G NPTF	3/4-14
H	0.75
J MIN	1.250
J MAX	1.255
K1 DRILL	0.406
K2 THD.	3/8-16
MATERIAL	STEEL

Attribute: 1928-61-16-16 (16FP-16CD61 Flat ...)

Stock Status: True

PIPE SIZE	1
FLANGE SIZE	1
A	2.31
B	2.88
C	1.031
D	2.062
E	1.50
G NPTF	1-11 1/2
H	1.00
J MIN	1.560
J MAX	1.565
K1 DRILL	0.406
K2 THD.	3/8-16
MATERIAL	STEEL

Attribute: 1928-61-20-20 (20FP-20CD61 Flat ...)

Stock Status: True

PIPE SIZE	1 1/4
FLANGE SIZE	1 1/4
A	2.88
B	3.25
C	1.188
D	2.312
E	1.50
G NPTF	1 1/4-11 1/2
H	1.25
J MIN	1.750
J MAX	1.755
K1 DRILL	0.469
K2 THD.	7/16-14
MATERIAL	STEEL

Attribute: 1928-61-24-24 (24FP-24CD61 Flat ...)

Stock Status: True

PIPE SIZE	1 1/2
FLANGE SIZE	1 1/2
A	3.25
B	3.81
C	1.406
D	2.750
E	1.75
G NPTF	1 1/2-11 1/2
H	1.50
J MIN	2.115
J MAX	2.125
K1 DRILL	0.531
K2 THD.	1/2-13
MATERIAL	STEEL

Attribute: 1928-61-32-32 (32FP-32CD61 Flat ...)

Stock Status: True

PIPE SIZE	2
FLANGE SIZE	2
A	3.81
B	4.13
C	1.688
D	3.062
E	1.75
G NPTF	2-11 1/2
H	2.00
J MIN	2.490
J MAX	2.500
K1 DRILL	0.531
K2 THD.	1/2-13
MATERIAL	STEEL

Attribute: 1928-61-40-40 (40FP-40CD61 Flat ...)

Stock Status: True

PIPE SIZE	2 1/2
FLANGE SIZE	2 1/2
A	4.28
B	4.63
C	2.000
D	3.500
E	2.00
G NPTF	2 1/2-8
H	2.50
J MIN	2.995
J MAX	3.005
K1 DRILL	0.531
K2 THD.	1/2-13
MATERIAL	STEEL

Attribute: 1928-61-48-48 (48FP-48CD61 Flat ...)

Stock Status: True

PIPE SIZE	3
FLANGE SIZE	3
A	5.16
B	5.44
C	2.438
D	4.188
E	2.25
G NPTF	3-8
H	3.00
J MIN	3.615
J MAX	3.625
K1 DRILL	0.656
K2 THD.	5/8-11
MATERIAL	STEEL
