1927-62

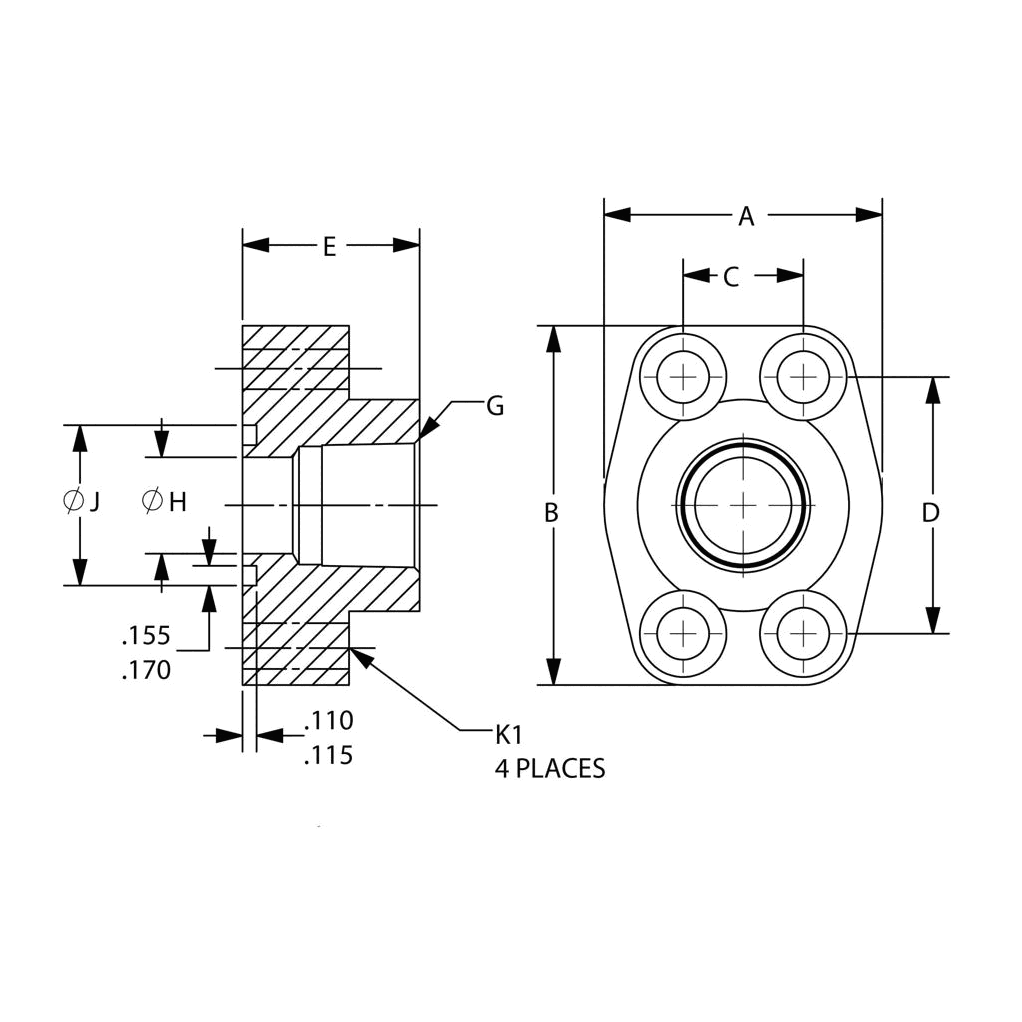

Attribute: 1927-62-08-08 (08FP-08ORF Flange...)

Stock Status: True

PIPE SIZE	1/2
FLANGE SIZE	1/2
A	1.94
B	2.30
C	0.718
D	1.594
E	1.25
G NPTF	1/2-14
H	0.50
J MIN	1.000
J MAX	1.005
K1 DRILL	0.344
K2 THD.	5/16-18
MATERIAL	STEEL

Attribute: 1927-62-12-12 (12FP-12ORF Flange...)

Stock Status: True

PIPE SIZE	3/4
FLANGE SIZE	3/4
A	2.38
B	2.81
C	0.937
D	2.000
E	1.25
G NPTF	3/4-14
H	0.75
J MIN	1.250
J MAX	1.255
K1 DRILL	0.406
K2 THD.	3/8-16
MATERIAL	STEEL

Attribute: 1927-62-16-16 (16FP-16ORF Flange...)

Stock Status: True

PIPE SIZE	1
FLANGE SIZE	1
A	2.75
B	3.19
C	1.093
D	2.250
E	1.50
G NPTF	1-11 1/2
H	1.00
J MIN	1.560
J MAX	1.565
K1 DRILL	0.469
K2 THD.	7/16-14
MATERIAL	STEEL

Attribute: 1927-62-16-20 (16FP-20ORF Flange...)

Stock Status: True

MATERIAL	STEEL

Attribute: 1927-62-20-20 (20FP-20ORF Flange...)

Stock Status: True

PIPE SIZE	1 1/4
FLANGE SIZE	1 1/4
A	3.06
B	3.75
C	1.25
D	2.625
E	1.50
G NPTF	1 1/4-11 1/2
H	1.25
J MIN	1.750
J MAX	1.755
K1 DRILL	0.531
K2 THD.	1/2-13
MATERIAL	STEEL

Attribute: 1927-62-24-24 (24FP-24ORF Flange...)

Stock Status: True

PIPE SIZE	1 1/2
FLANGE SIZE	1 1/2
A	3.75
B	4.44
C	1.437
D	3.125
E	1.75
G NPTF	1 1/2-11 1/2
H	1.50
J MIN	2.115
J MAX	2.125
K1 DRILL	0.656
K2 THD.	5/8-11
MATERIAL	STEEL

Attribute: 1927-62-24-32 (24FP-32ORF Flange...)

Stock Status: True

MATERIAL	STEEL

Attribute: 1927-62-32-32 (32FP-32ORF Flange...)

Stock Status: True

PIPE SIZE	2
FLANGE SIZE	2
A	4.50
B	5.25
C	1.750
D	3.812
E	1.75
G NPTF	2-11 1/2
H	2.00
J MIN	2.490
J MAX	2.500
K1 DRILL	0.781
K2 THD.	3/4-10
MATERIAL	STEEL
