Flange Fittings

1810

Scraped 2026-02-15 08:27:27

Description

Description

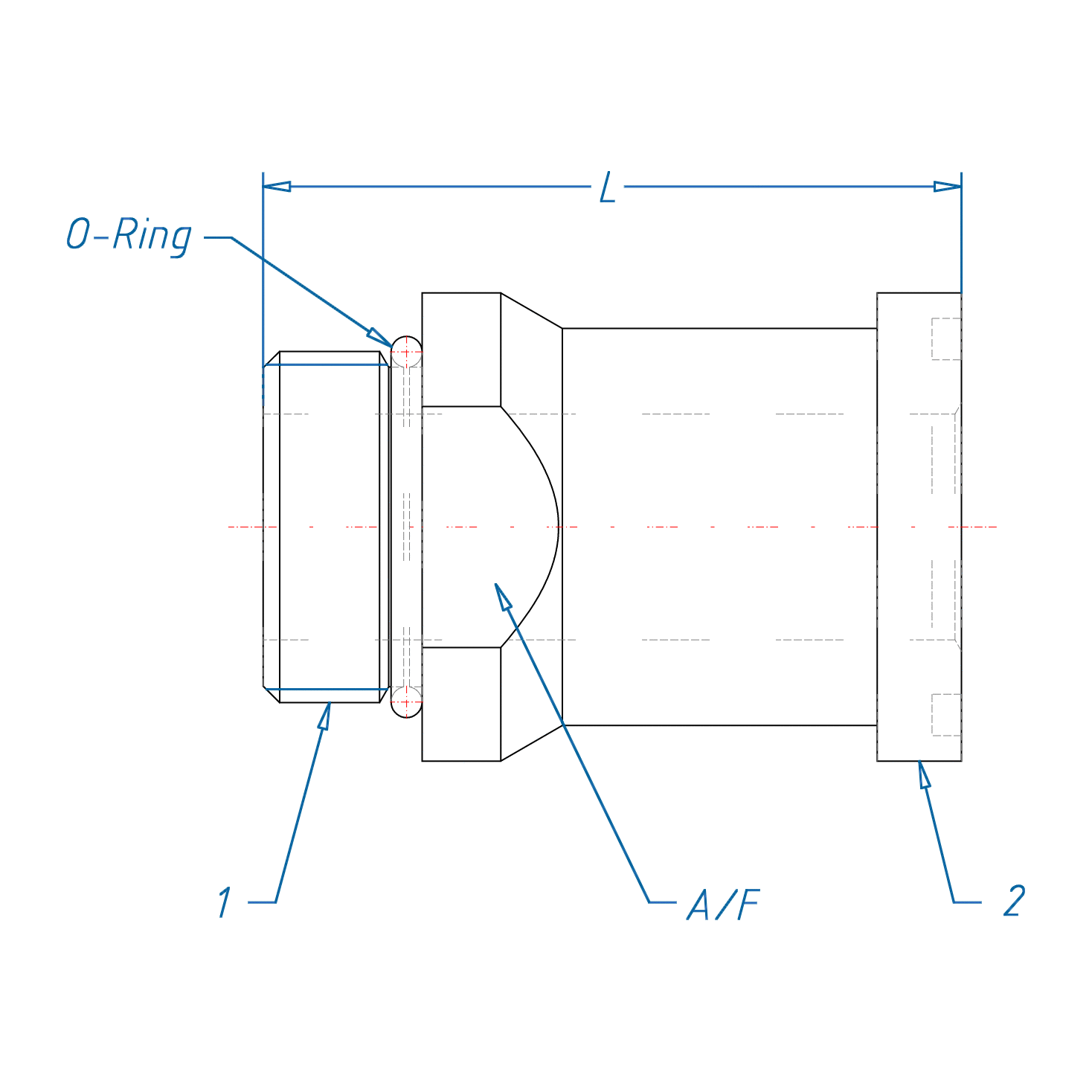

MB-Flange Straight Code 62

Variations (6)

1810-08-08

$57.56

Attribute: 1810-08-08 (08MORB-08Flange Stra...)

Stock Status: True

TUBE O.D.1/2
1 THREAD3/4-16 UNF
2 FLANGE1/2
L1 (IN.)2.50
A/F (IN.)7/8
MATERIALSTEEL

1810-12-12

$62.61

Attribute: 1810-12-12 (12MORB-12Flange Stra...)

Stock Status: True

TUBE O.D.3/4
1 THREAD1-1/16-12
2 FLANGE3/4
L1 (IN.)2.620
A/F (IN.)1.375
MATERIALSTEEL

1810-16-16

$71.38

Attribute: 1810-16-16 (16MORB-16Flange Stra...)

Stock Status: True

TUBE O.D.1
1 THREAD1-5/16-12
2 FLANGE1
L1 (IN.)2.625
A/F (IN.)1.625
MATERIALSTEEL

1810-20-20

$81.62

Attribute: 1810-20-20 (20MORB-20Flange Stra...)

Stock Status: True

TUBE O.D.1 1/4
1 THREAD1 5/8-12 UN
2 FLANGE1 1/4
L1 (IN.)3.00
A/F (IN.)1 7/8
MATERIALSTEEL

1810-24-24

$130.70

Attribute: 1810-24-24 (24MORB-24Flange Stra...)

Stock Status: True

TUBE O.D.1 1/2
1 THREAD1 7/8-12 UN
2 FLANGE1 1/2
L1 (IN.)3.40
A/F (IN.)2 1/8
MATERIALSTEEL

1810-32-32

$203.10

Attribute: 1810-32-32 (32MORB-32Flange Stra...)

Stock Status: True

TUBE O.D.2
1 THREAD2 1/2-12 UN
2 FLANGE2
L1 (IN.)3.75
A/F (IN.)2 3/4
MATERIALSTEEL

General Attributes

Connections ORB, Flange
Shape Straight

PDF Documents

Download CAD and Drawings Open PDF
