1804

1804-08-08

$151.47

Attribute: 1804-08-08 (08MJ-08Flange 90 Elb...)

Stock Status: True

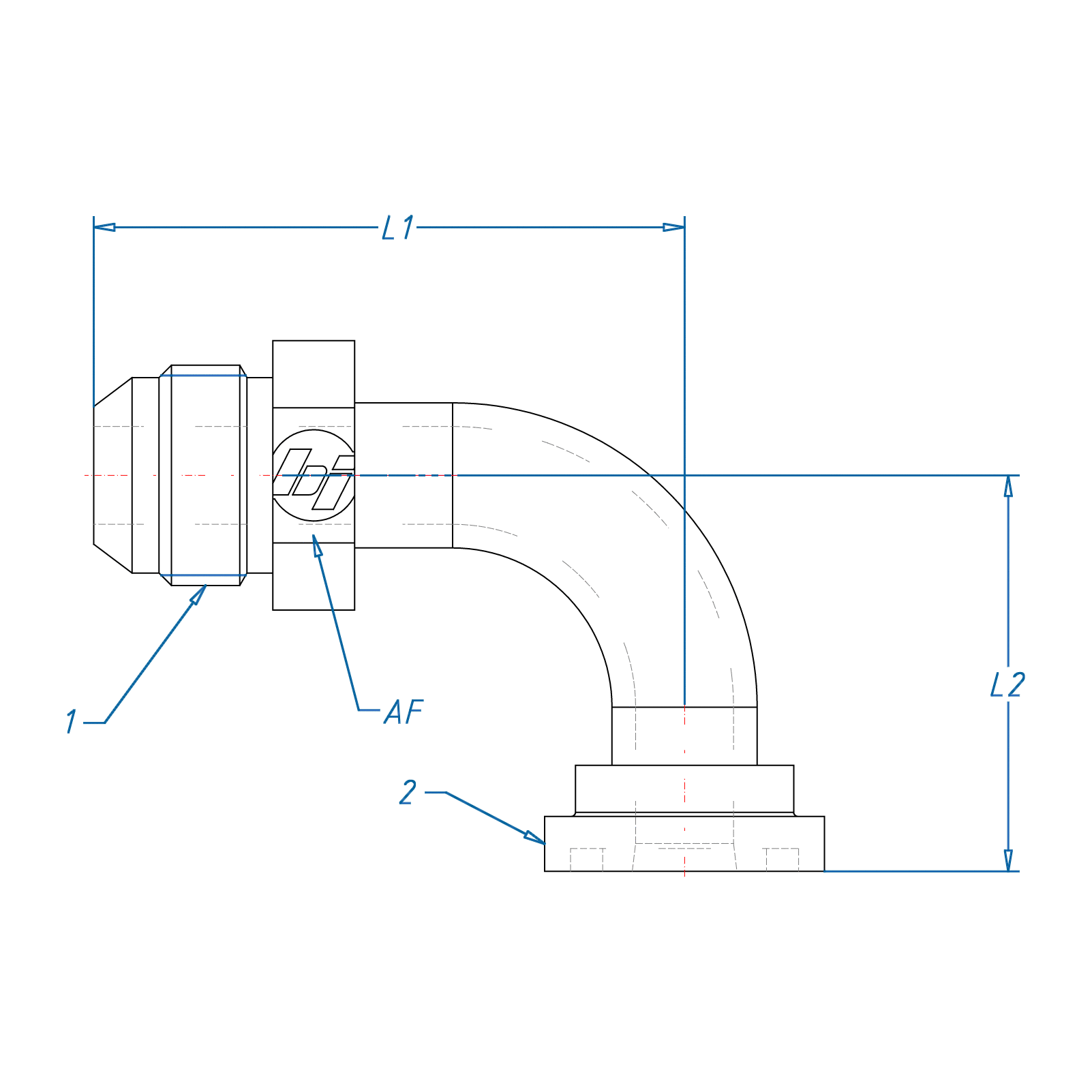

TUBE O.D.	1/2
1 THREAD	3/4-16 UNF
2 FLANGE	1/2
L1 (IN.)	2.32
L2 (IN.)	1.85
A/F (IN.)	7/8
MATERIAL	STEEL

1804-10-10

$66.72

Attribute: 1804-10-10 (10MJ-10Flange 90 Elb...)

Stock Status: True

TUBE O.D.	5/8
1 THREAD	7/8-14
2 FLANGE	5/8
L1 (IN.)	2.610
L2 (IN.)	2.090
A/F (IN.)	1
MATERIAL	STEEL

1804-12-12

$135.34

Attribute: 1804-12-12 (12MJ-12Flange 90 Elb...)

Stock Status: True

TUBE O.D.	3/4
1 THREAD	1 1/16-12 UN
2 FLANGE	3/4
L1 (IN.)	2.83
L2 (IN.)	2.28
A/F (IN.)	1 1/8
MATERIAL	STEEL

1804-12-12-SS

$163.15

Attribute: 1804-12-12-SS (12MJ-12Flange 90 ...)

Stock Status: True

TUBE O.D.	3/4
1 THREAD	1 1/16-12 UN
2 FLANGE	3/4
L1 (IN.)	2.83
L2 (IN.)	2.28
A/F (IN.)	1 1/8
MATERIAL	STAINLESS STEEL

1804-12-16

$168.67

Attribute: 1804-12-16 (12MJ-16Flange 90 Elb...)

Stock Status: True

TUBE O.D.	3/4
1 THREAD	1 1/16-12 UN
2 FLANGE	1
L1 (IN.)	2.83
L2 (IN.)	2.40
A/F (IN.)	1 1/8
MATERIAL	STEEL

1804-12-16-SS

$287.80

Attribute: 1804-12-16-SS (12MJ-16Flange 90 ...)

Stock Status: True

TUBE O.D.	3/4
1 THREAD	1 1/16-12 UN
2 FLANGE	1
L1 (IN.)	2.83
L2 (IN.)	2.40
A/F (IN.)	1 1/8
MATERIAL	STAINLESS STEEL

1804-12-20

$233.75

Attribute: 1804-12-20 (12MJ-20Flange 90 Elb...)

Stock Status: True

TUBE O.D.	3/4
1 THREAD	1 1/16-12 UN
2 FLANGE	1 1/4
L1 (IN.)	2.83
L2 (IN.)	2.76
A/F (IN.)	1 1/8
MATERIAL	STEEL

1804-12-20-SS

$437.54

Attribute: 1804-12-20-SS (12MJ-20Flange 90 ...)

Stock Status: True

TUBE O.D.	3/4
1 THREAD	1 1/16-12 UN
2 FLANGE	1 1/4
L1 (IN.)	2.83
L2 (IN.)	2.76
A/F (IN.)	1 1/8
MATERIAL	STAINLESS STEEL

1804-16-12

$152.91

Attribute: 1804-16-12 (16MJ-12Flange 90 Elb...)

Stock Status: True

TUBE O.D.	1
1 THREAD	1 5/16-12 UN
2 FLANGE	3/4
L1 (IN.)	2.93
L2 (IN.)	2.28
A/F (IN.)	1 3/8
MATERIAL	STEEL

1804-16-12-SS

$443.72

Attribute: 1804-16-12-SS (16MJ-12Flange 90 ...)

Stock Status: True

TUBE O.D.	1
1 THREAD	1 5/16-12 UN
2 FLANGE	3/4
L1 (IN.)	2.93
L2 (IN.)	2.28
A/F (IN.)	1 3/8
MATERIAL	STAINLESS STEEL

1804-16-16

$137.40

Attribute: 1804-16-16 (16MJ-16Flange 90 Elb...)

Stock Status: True

TUBE O.D.	1
1 THREAD	1 5/16-12 UN
2 FLANGE	1
L1 (IN.)	3.39
L2 (IN.)	2.87
A/F (IN.)	1 3/8
MATERIAL	STEEL

1804-16-16-SS

$347.25

Attribute: 1804-16-16-SS (16MJ-16Flange 90 ...)

Stock Status: True

TUBE O.D.	1
1 THREAD	1 5/16-12 UN
2 FLANGE	1
L1 (IN.)	3.39
L2 (IN.)	2.87
A/F (IN.)	1 3/8
MATERIAL	STAINLESS STEEL

1804-16-20

$161.35

Attribute: 1804-16-20 (16MJ-20Flange 90 Elb...)

Stock Status: True

TUBE O.D.	1
1 THREAD	1 5/16-12 UN
2 FLANGE	1 1/4
L1 (IN.)	3.39
L2 (IN.)	3.03
A/F (IN.)	1 3/8
MATERIAL	STEEL

1804-16-20-SS

$449.28

Attribute: 1804-16-20-SS (16MJ-20Flange 90 ...)

Stock Status: True

TUBE O.D.	1
1 THREAD	1 5/16-12 UN
2 FLANGE	1 1/4
L1 (IN.)	3.39
L2 (IN.)	3.03
A/F (IN.)	1 3/8
MATERIAL	STAINLESS STEEL

1804-16-24

$250.30

Attribute: 1804-16-24 (16MJ-24Flange 90 Elb...)

Stock Status: True

TUBE O.D.	1
1 THREAD	1 5/16-12 UN
2 FLANGE	1 1/2
L1 (IN.)	3.39
L2 (IN.)	3.23
A/F (IN.)	1 3/8
MATERIAL	STEEL

1804-16-24-SS

$464.65

Attribute: 1804-16-24-SS (16MJ-24Flange 90 ...)

Stock Status: True

TUBE O.D.	1
1 THREAD	1 5/16-12 UN
2 FLANGE	1 1/2
L1 (IN.)	3.39
L2 (IN.)	3.23
A/F (IN.)	1 3/8
MATERIAL	STAINLESS STEEL

1804-20-12

$179.19

Attribute: 1804-20-12 (20MJ-12Flange 90 Elb...)

Stock Status: True

TUBE O.D.	1 1/4
1 THREAD	1-5/8-12
2 FLANGE	3/4
L1 (IN.)	3.22
L2 (IN.)	2.60
A/F (IN.)	2
MATERIAL	STEEL

1804-20-16

$188.79

Attribute: 1804-20-16 (20MJ-16Flange 90 Elb...)

Stock Status: True

TUBE O.D.	1 1/4
1 THREAD	1 5/8-12 UN
2 FLANGE	1
L1 (IN.)	3.54
L2 (IN.)	2.87
A/F (IN.)	1 11/16
MATERIAL	STEEL

1804-20-16-SS

$488.80

Attribute: 1804-20-16-SS (20MJ-16Flange 90 ...)

Stock Status: True

TUBE O.D.	1 1/4
1 THREAD	1 5/8-12 UN
2 FLANGE	1
L1 (IN.)	3.57
L2 (IN.)	2.87
A/F (IN.)	1 11/16
MATERIAL	STAINLESS STEEL

1804-20-20

$235.15

Attribute: 1804-20-20 (20MJ-20Flange 90 Elb...)

Stock Status: True

TUBE O.D.	1 1/4
1 THREAD	1 5/8-12 UN
2 FLANGE	1 1/4
L1 (IN.)	3.98
L2 (IN.)	3.46
A/F (IN.)	1 11/16
MATERIAL	STEEL

1804-20-20-SS

$508.15

Attribute: 1804-20-20-SS (20MJ-20Flange 90 ...)

Stock Status: True

TUBE O.D.	1 1/4
1 THREAD	1 5/8-12 UN
2 FLANGE	1 1/4
L1 (IN.)	3.98
L2 (IN.)	3.46
A/F (IN.)	1 11/16
MATERIAL	STAINLESS STEEL

1804-20-24

$233.95

Attribute: 1804-20-24 (20MJ-24Flange 90 Elb...)

Stock Status: True

TUBE O.D.	1 1/4
1 THREAD	1 5/8-12 UN
2 FLANGE	1 1/2
L1 (IN.)	3.98
L2 (IN.)	3.66
A/F (IN.)	1 11/16
MATERIAL	STEEL

1804-20-24-SS

$652.87

Attribute: 1804-20-24-SS (20MJ-24Flange 90 ...)

Stock Status: True

TUBE O.D.	1 1/4
1 THREAD	1 5/8-12 UN
2 FLANGE	1 1/2
L1 (IN.)	3.98
L2 (IN.)	3.66
A/F (IN.)	1 11/16
MATERIAL	STAINLESS STEEL

1804-24-16

$165.50

Attribute: 1804-24-16 (24MJ-16Flange 90 Elb...)

Stock Status: True

TUBE O.D.	1 1/2
1 THREAD	1 7/8-12 UN
2 FLANGE	1
L1 (IN.)	3.94
L2 (IN.)	2.87
A/F (IN.)	2
MATERIAL	STEEL

1804-24-16-SS

$643.49

Attribute: 1804-24-16-SS (24MJ-16Flange 90 ...)

Stock Status: True

TUBE O.D.	1 1/2
1 THREAD	1 7/8-12 UN
2 FLANGE	1
L1 (IN.)	3.94
L2 (IN.)	2.87
A/F (IN.)	2
MATERIAL	STAINLESS STEEL

1804-24-20

$219.88

Attribute: 1804-24-20 (24MJ-20Flange 90 Elb...)

Stock Status: True

TUBE O.D.	1 1/2
1 THREAD	1 7/8-12 UN
2 FLANGE	1 1/4
L1 (IN.)	4.33
L2 (IN.)	3.46
A/F (IN.)	2
MATERIAL	STEEL

1804-24-20-SS

$808.32

Attribute: 1804-24-20-SS (24MJ-20Flange 90 ...)

Stock Status: True

TUBE O.D.	1 1/2
1 THREAD	1 7/8-12 UN
2 FLANGE	1 1/4
L1 (IN.)	4.33
L2 (IN.)	3.46
A/F (IN.)	2
MATERIAL	STAINLESS STEEL

1804-24-24

$341.40

Attribute: 1804-24-24 (24MJ-24Flange 90 Elb...)

Stock Status: True

TUBE O.D.	1 1/2
1 THREAD	1 7/8-12 UN
2 FLANGE	1 1/2
L1 (IN.)	4.57
L2 (IN.)	4.02
A/F (IN.)	2
MATERIAL	STEEL

1804-24-24-SS

$916.73

Attribute: 1804-24-24-SS (24MJ-24Flange 90 ...)

Stock Status: True

TUBE O.D.	1 1/2
1 THREAD	1 7/8-12 UN
2 FLANGE	1 1/2
L1 (IN.)	4.57
L2 (IN.)	4.02
A/F (IN.)	2
MATERIAL	STAINLESS STEEL

1804-24-32

$537.10

Attribute: 1804-24-32 (24MJ-32Flange 90 Elb...)

Stock Status: True

TUBE O.D.	1-1/2
1 THREAD	1-7/8-12
2 FLANGE	2
L1 (IN.)	4.833
L2 (IN.)	4.303
A/F (IN.)	2.000
MATERIAL	STEEL

1804-24-32-SS

$1,614.35

Attribute: 1804-24-32-SS (24MJ-32Flange 90 ...)

Stock Status: True

TUBE O.D.	1 1/2
1 THREAD	1 7/8-12 UN
2 FLANGE	2
L1 (IN.)	4.833
L2 (IN.)	4.303
A/F (IN.)	2.000
MATERIAL	STAINLESS STEEL

1804-32-32

$677.31

Attribute: 1804-32-32 (32MJ-32Flange 90 Elb...)

Stock Status: True

TUBE O.D.	2
1 THREAD	2 1/2-12 UN
2 FLANGE	2
L1 (IN.)	5.79
L2 (IN.)	5.31
A/F (IN.)	2 3/4
MATERIAL	STEEL

1804-32-32-SS

$1,676.06

Attribute: 1804-32-32-SS (32MJ-32Flange 90 ...)

Stock Status: True

TUBE O.D.	2
1 THREAD	2 1/2-12 UN
2 FLANGE	2
L1 (IN.)	5.79
L2 (IN.)	5.31
A/F (IN.)	2 3/4
MATERIAL	STAINLESS STEEL

Connections	JIC, Flange
Shape	Elbow

ID	10151835
Category	Flange Fittings
