Flange Fittings

1803

Scraped 2026-02-15 08:27:29

Description

Description

MJ-Flange 45 Code 62

Variations (29)

1803-08-08

$66.02

Attribute: 1803-08-08 (08MJ-08Flange 45 Elb...)

Stock Status: True

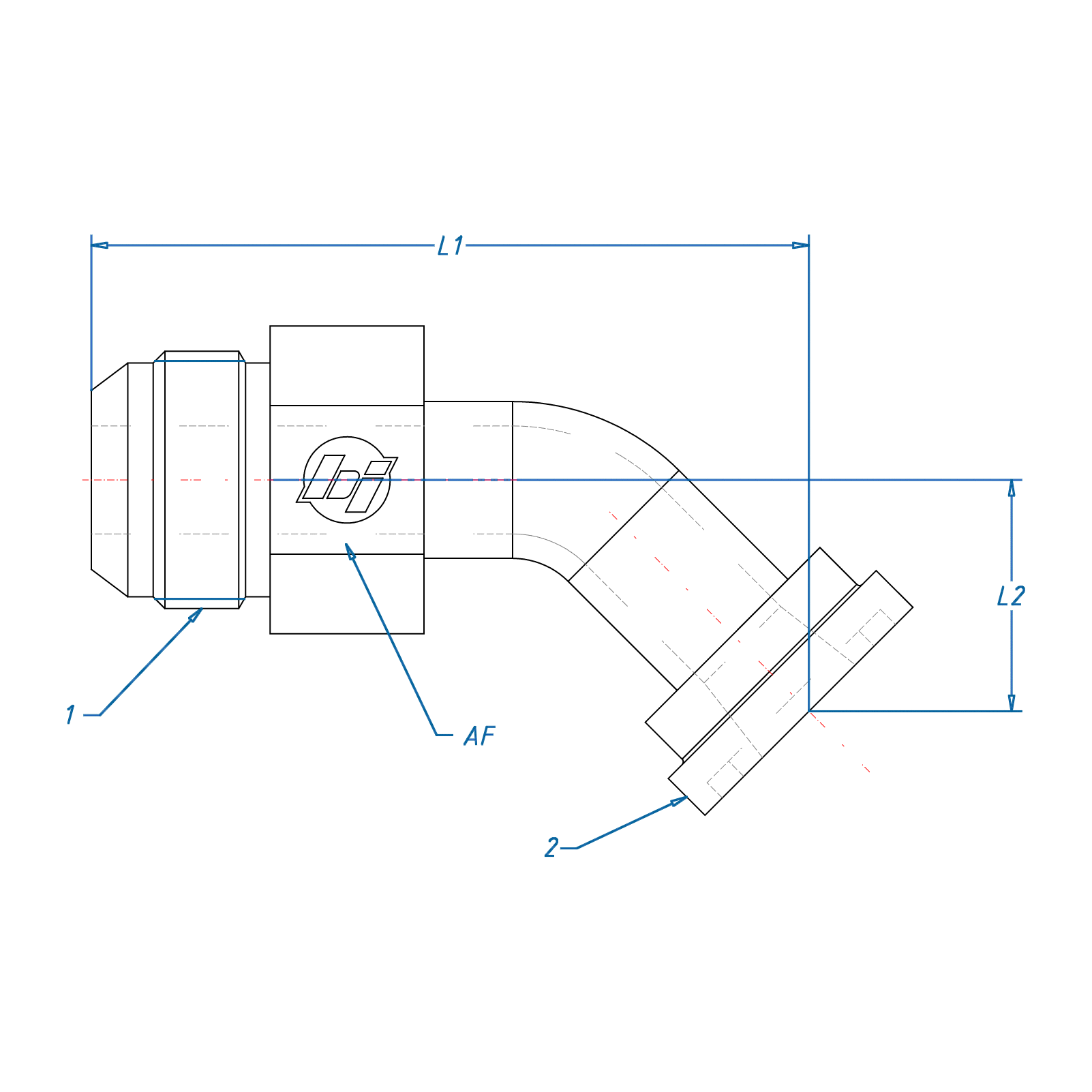

TUBE O.D.1/2
1 THREAD3/4-16 UNF
2 FLANGE1/2
L1 (IN.)2.76
L2 (IN.)0.94
A/F (IN.)7/8
MATERIALSTEEL

1803-12-12

$117.78

Attribute: 1803-12-12 (12MJ-12Flange 45 Elb...)

Stock Status: True

TUBE O.D.3/4
1 THREAD1 1/16-12 UN
2 FLANGE3/4
L1 (IN.)3.31
L2 (IN.)1.14
A/F (IN.)1 1/8
MATERIALSTEEL

1803-12-12-SS

$288.10

Attribute: 1803-12-12-SS (12MJ-12Flange 45 ...)

Stock Status: True

TUBE O.D.3/4
1 THREAD1 1/16-12 UN
2 FLANGE3/4
L1 (IN.)3.31
L2 (IN.)1.14
A/F (IN.)1 1/16
MATERIALSTAINLESS STEEL

1803-12-16

$126.26

Attribute: 1803-12-16 (12MJ-16Flange 45 Elb...)

Stock Status: True

TUBE O.D.3/4
1 THREAD1 1/16-12 UN
2 FLANGE1
L1 (IN.)3.35
L2 (IN.)1.22
A/F (IN.)1 1/8
MATERIALSTEEL

1803-12-16-SS

$354.91

Attribute: 1803-12-16-SS (12MJ-16Flange 45 ...)

Stock Status: True

TUBE O.D.3/4
1 THREAD1 1/16-12 UN
2 FLANGE1
L1 (IN.)3.35
L2 (IN.)1.22
A/F (IN.)1 1/8
MATERIALSTAINLESS STEEL

1803-12-20

$194.67

Attribute: 1803-12-20 (12MJ-20Flange 45 Elb...)

Stock Status: True

TUBE O.D.3/4
1 THREAD1-1/16-12
2 FLANGE1-1/4
L1 (IN.)3.75
L2 (IN.)1.62
A/F (IN.)1.125
MATERIALSTEEL

1803-12-20-SS

$335.69

Attribute: 1803-12-20-SS (12MJ-20Flange 45 ...)

Stock Status: True

TUBE O.D.3/4
1 THREAD1-1/16-12
2 FLANGE1-1/4
L1 (IN.)3.75
L2 (IN.)1.62
A/F (IN.)1.125
MATERIALSTAINLESS STEEL

1803-16-12

$177.40

Attribute: 1803-16-12 (16MJ-12Flange 45 Elb...)

Stock Status: True

TUBE O.D.1
1 THREAD1 5/16-12 UN
2 FLANGE3/4
L1 (IN.)3.46
L2 (IN.)1.18
A/F (IN.)1 3/8
MATERIALSTEEL

1803-16-12-SS

$296.45

Attribute: 1803-16-12-SS (16MJ-12Flange 45 ...)

Stock Status: True

TUBE O.D.1
1 THREAD1 5/16-12 UN
2 FLANGE3/4
L1 (IN.)3.46
L2 (IN.)1.18
A/F (IN.)1 3/8
MATERIALSTAINLESS STEEL

1803-16-16

$147.56

Attribute: 1803-16-16 (16MJ-16Flange 45 Elb...)

Stock Status: True

TUBE O.D.1
1 THREAD1 5/16-12 UN
2 FLANGE1
L1 (IN.)3.86
L2 (IN.)1.38
A/F (IN.)1 3/8
MATERIALSTEEL

1803-16-16-SS

$233.21

Attribute: 1803-16-16-SS (16MJ-16Flange 45 ...)

Stock Status: True

TUBE O.D.1
1 THREAD1 5/16-12 UN
2 FLANGE1
L1 (IN.)3.86
L2 (IN.)1.38
A/F (IN.)1 5/16
MATERIALSTAINLESS STEEL

1803-16-20

$211.53

Attribute: 1803-16-20 (16MJ-20Flange 45 Elb...)

Stock Status: True

TUBE O.D.1
1 THREAD1 5/16-12 UN
2 FLANGE1 1/4
L1 (IN.)3.98
L2 (IN.)1.50
A/F (IN.)1 3/8
MATERIALSTEEL

1803-16-20-SS

$265.80

Attribute: 1803-16-20-SS (16MJ-20Flange 45 ...)

Stock Status: True

TUBE O.D.1
1 THREAD1 5/16-12 UN
2 FLANGE1 1/4
L1 (IN.)3.98
L2 (IN.)1.50
A/F (IN.)1 3/8
MATERIALSTAINLESS STEEL

1803-16-24

$258.73

Attribute: 1803-16-24 (16MJ-24Flange 45 Elb...)

Stock Status: True

TUBE O.D.1
1 THREAD1 5/16-12 UN
2 FLANGE1 1/2
L1 (IN.)4.13
L2 (IN.)1.61
A/F (IN.)1 3/8
MATERIALSTEEL

1803-16-24-SS

$710.80

Attribute: 1803-16-24-SS (16MJ-24Flange 45 ...)

Stock Status: True

TUBE O.D.1
1 THREAD1 5/16-12 UN
2 FLANGE1 1/2
L1 (IN.)4.13
L2 (IN.)1.61
A/F (IN.)1 3/8
MATERIALSTAINLESS STEEL

1803-20-12

$251.97

Attribute: 1803-20-12 (20MJ-12Flange 45 Elb...)

Stock Status: True

TUBE O.D.1 1/4
1 THREAD1-5/8-12 UN
2 FLANGE3/4
L1 (IN.)4.13
L2 (IN.)1.42
A/F (IN.)1 1/2
MATERIALSTEEL

1803-20-12-SS

$302.37

Attribute: 1803-20-12-SS (20MJ-12Flange 45 ...)

Stock Status: True

TUBE O.D.1 1/4
1 THREAD1 5/8-12
2 FLANGE3/4
L1 (IN.)4.13
L2 (IN.)1.42
A/F (IN.)1 1/2
MATERIALSTAINLESS STEEL

1803-20-16

$245.72

Attribute: 1803-20-16 (20MJ-16Flange 45 Elb...)

Stock Status: True

TUBE O.D.1 1/4
1 THREAD1 5/8-12 UN
2 FLANGE1
L1 (IN.)4.13
L2 (IN.)1.42
A/F (IN.)1 11/16
MATERIALSTEEL

1803-20-16-SS

$415.79

Attribute: 1803-20-16-SS (20MJ-16Flange 45 ...)

Stock Status: True

TUBE O.D.1 1/4
1 THREAD1 5/8-12 UN
2 FLANGE1
L1 (IN.)4.13
L2 (IN.)1.42
A/F (IN.)1 11/16
MATERIALSTAINLESS STEEL

1803-20-20

$222.15

Attribute: 1803-20-20 (20MJ-20Flange 45 Elb...)

Stock Status: True

TUBE O.D.1 1/4
1 THREAD1 5/8-12 UN
2 FLANGE1 1/4
L1 (IN.)4.53
L2 (IN.)1.65
A/F (IN.)1 11/16
MATERIALSTEEL

1803-20-20-SS

$583.50

Attribute: 1803-20-20-SS (20MJ-20Flange 45 ...)

Stock Status: True

TUBE O.D.1 1/4
1 THREAD1 5/8-12 UN
2 FLANGE1 1/4
L1 (IN.)4.53
L2 (IN.)1.65
A/F (IN.)1 5/8
MATERIALSTAINLESS STEEL

1803-20-24

$301.74

Attribute: 1803-20-24 (20MJ-24Flange 45 Elb...)

Stock Status: True

TUBE O.D.1 1/4
1 THREAD1 5/8-12 UN
2 FLANGE1 1/2
L1 (IN.)4.65
L2 (IN.)1.81
A/F (IN.)1 11/16
MATERIALSTEEL

1803-20-24-SS

$816.56

Attribute: 1803-20-24-SS (20MJ-24Flange 45 ...)

Stock Status: True

TUBE O.D.1 1/4
1 THREAD1 5/8-12 UN
2 FLANGE1 1/2
L1 (IN.)4.65
L2 (IN.)1.81
A/F (IN.)1 11/16
MATERIALSTAINLESS STEEL

1803-24-20

$344.17

Attribute: 1803-24-20 (24MJ-20Flange 45 Elb...)

Stock Status: True

TUBE O.D.1-1/2
1 THREAD1-7/8-12
2 FLANGE1-1/4
L1 (IN.)4.875
L2 (IN.)1.400
A/F (IN.)2.000
MATERIALSTEEL

1803-24-20-SS

$646.07

Attribute: 1803-24-20-SS (24MJ-20Flange 45 ...)

Stock Status: True

TUBE O.D.1-1/2
1 THREAD1-7/8-12
2 FLANGE1-1/4
L1 (IN.)4.875
L2 (IN.)1.400
A/F (IN.)2.000
MATERIALSTAINLESS STEEL

1803-24-24

$302.99

Attribute: 1803-24-24 (24MJ-24Flange 45 Elb...)

Stock Status: True

TUBE O.D.1 1/2
1 THREAD1 7/8-12 UN
2 FLANGE1 1/2
L1 (IN.)5.16
L2 (IN.)1.93
A/F (IN.)2
MATERIALSTEEL

1803-24-24-SS

$478.23

Attribute: 1803-24-24-SS (24MJ-24Flange 45 ...)

Stock Status: True

TUBE O.D.1 1/2
1 THREAD1 7/8-12 UN
2 FLANGE1 1/2
L1 (IN.)5.16
L2 (IN.)1.93
A/F (IN.)1 7/8
MATERIALSTAINLESS STEEL

1803-32-32

$533.57

Attribute: 1803-32-32 (32MJ-32Flange 45 Elb...)

Stock Status: True

TUBE O.D.2
1 THREAD2 1/2-12 UN
2 FLANGE2
L1 (IN.)6.54
L2 (IN.)2.48
A/F (IN.)2 3/4
MATERIALSTEEL

1803-32-32-SS

$1,796.47

Attribute: 1803-32-32-SS (32MJ-32Flange 45 ...)

Stock Status: True

TUBE O.D.2
1 THREAD2 1/2-12 UN
2 FLANGE2
L1 (IN.)6.54
L2 (IN.)2.48
A/F (IN.)2-5/8
MATERIALSTAINLESS STEEL

General Attributes

Connections JIC, Flange
Shape Elbow

PDF Documents

Download CAD and Drawings Open PDF
