Flange Fittings

1710

Scraped 2026-02-15 08:27:29

Description

Description

MB-FLANGE Straight

Variations (6)

1710-08-08

$27.57

Attribute: 1710-08-08 (08MORB-08Flange Stra...)

Stock Status: True

TUBE O.D.1/2
THREAD3/4-16 UNF
FLANGE1/2
L LGTH2.490
A/F0.875
MATERIALSTEEL

1710-12-12

$63.02

Attribute: 1710-12-12 (12MORB-12Flange Stra...)

Stock Status: True

TUBE O.D.3/4
THREAD1 1/16-12 UN
FLANGE3/4
L LGTH2.610
A/F1.250
MATERIALSTEEL

1710-16-16

$69.98

Attribute: 1710-16-16 (16MORB-16Flange Stra...)

Stock Status: True

TUBE O.D.1
THREAD1 5/16-12 UN
FLANGE1
L LGTH2.61
A/F1 1/2
MATERIALSTEEL

1710-20-20

$94.37

Attribute: 1710-20-20 (20MORB-20Flange Stra...)

Stock Status: True

TUBE O.D.1 1/4
THREAD1 5/8-12 UN
FLANGE1 1/4
L LGTH3.13
A/F1 7/8
MATERIALSTEEL

1710-24-24

$111.32

Attribute: 1710-24-24 (24MORB-24Flange Stra...)

Stock Status: True

TUBE O.D.1 1/2
THREAD1 7/8-12 UN
FLANGE1 1/2
L LGTH3.140
A/F2.125
MATERIALSTEEL

1710-32-32

$158.67

Attribute: 1710-32-32 (32MORB-32Flange Stra...)

Stock Status: True

TUBE O.D.2
THREAD2-1/2-12
FLANGE2
L LGTH3.630
A/F2.750
MATERIALSTEEL

General Attributes

Connections ORB, Flange
Shape Straight

PDF Documents

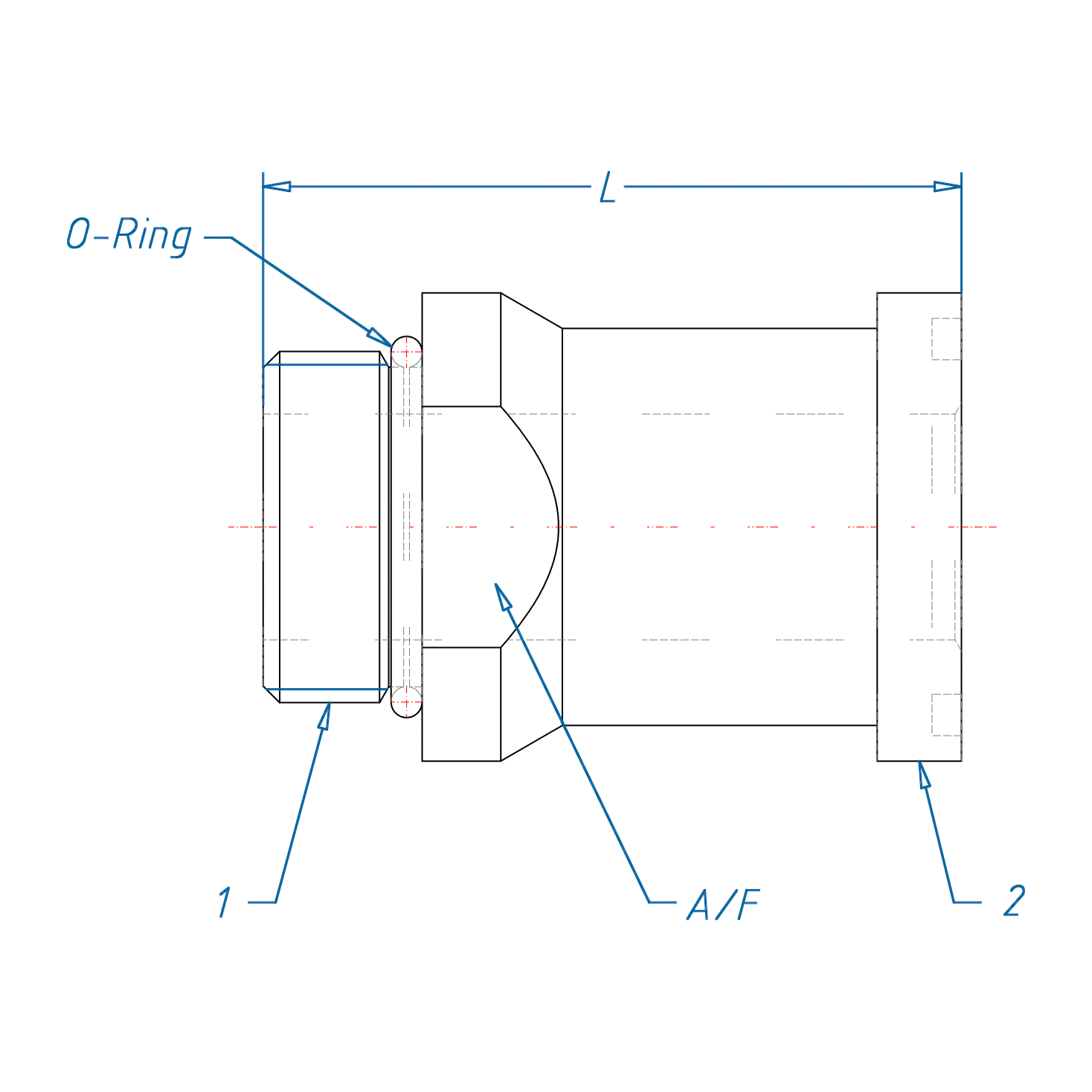

Download CAD and Drawings Open PDF
