Flange Fittings

1704-FG

Scraped 2026-02-15 08:27:29

Description

Description

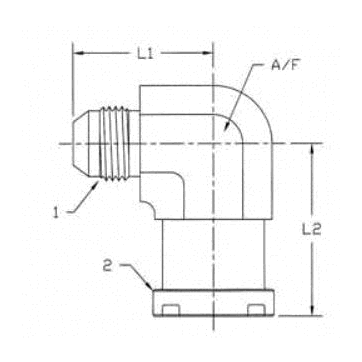

MJ-Flange 90 Code 61

Variations (18)

1704-08-08-FG

$52.62

Attribute: 1704-08-08-FG (08MJ-08Flange 90 ...)

Stock Status: True

TUBE O.D.1/2
1 THREAD3/4-16 UNF
2 FLANGE1/2
L1 (IN.)1.460
L2 (IN.)2.050
A/F (IN.)0.875
MATERIALSTEEL FORGED

1704-08-12-FG

$70.15

Attribute: 1704-08-12-FG (08MJ-12Flange 90 ...)

Stock Status: True

TUBE O.D.1/2
1 THREAD3/4-16
2 FLANGE3/4
L1 (IN.)1.660
L2 (IN.)2.130
A/F (IN.)1.062
MATERIALSTEEL FORGED

1704-08-24-FG

$163.03

Attribute: 1704-08-24-FG (08MJ-24Flange 90 ...)

Stock Status: True

TUBE O.D.1/2
1 THREAD3/4-16 UNF
2 FLANGE1 1/2
L1 (IN.)2.319
L2 (IN.)3.134
A/F (IN.)1.9218
MATERIALSTEEL FORGED

1704-12-12-FG

$66.85

Attribute: 1704-12-12-FG (12MJ-12Flange 90 ...)

Stock Status: True

TUBE O.D.3/4
1 THREAD1 1/16-12 UN
2 FLANGE3/4
L1 (IN.)1.660
L2 (IN.)2.130
A/F (IN.)1.0625
MATERIALSTEEL FORGED

1704-12-16-FG

$83.42

Attribute: 1704-12-16-FG (12MJ-16Flange 90 ...)

Stock Status: True

TUBE O.D.3/4
1 THREAD1 1/16-12 UN
2 FLANGE1
L1 (IN.)1.81
L2 (IN.)2.37
A/F (IN.)1 5/16
MATERIALSTEEL FORGED

1704-12-20-FG

$154.03

Attribute: 1704-12-20-FG (12MJ-20Flange 90 ...)

Stock Status: True

TUBE O.D.3/4
1 THREAD1 1/16-12 UN
2 FLANGE1 1/4
L1 (IN.)2.06
L2 (IN.)2.62
A/F (IN.)1.625
MATERIALSTEEL FORGED

1704-12-24-FG

$205.07

Attribute: 1704-12-24-FG (12MJ-24Flange 90 ...)

Stock Status: True

TUBE O.D.3/4
1 THREAD1 1/16-12 UN
2 FLANGE1 1/2
L1 (IN.)2.20
L2 (IN.)3.15
A/F (IN.)1 5/8
MATERIALSTEEL FORGED

1704-16-12-FG

$82.48

Attribute: 1704-16-12-FG (16MJ-12Flange 90 ...)

Stock Status: True

TUBE O.D.1
1 THREAD1-5/16-12
2 FLANGE3/4
L1 (IN.)1.660
L2 (IN.)2.130
A/F (IN.)1.062
MATERIALSTEEL FORGED

1704-16-16-FG

$105.81

Attribute: 1704-16-16-FG (16MJ-16Flange 90 ...)

Stock Status: True

TUBE O.D.1
1 THREAD1 5/16-12 UN
2 FLANGE1
L1 (IN.)1.811
L2 (IN.)2.370
A/F (IN.)1.3125
MATERIALSTEEL FORGED

1704-16-20-FG

$151.47

Attribute: 1704-16-20-FG (16MJ-20Flange 90 ...)

Stock Status: True

TUBE O.D.1
1 THREAD1 5/16-12 UN
2 FLANGE1 1/4
L1 (IN.)2.060
L2 (IN.)2.620
A/F (IN.)1.625
MATERIALSTEEL FORGED

1704-20-16-FG

$108.15

Attribute: 1704-20-16-FG (20MJ-16Flange 90 ...)

Stock Status: True

TUBE O.D.1-1/4
1 THREAD1-5/8-12
2 FLANGE1
L1 (IN.)1.810
L2 (IN.)2.370
A/F (IN.)1.312
MATERIALSTEEL FORGED

1704-20-20-FG

$172.87

Attribute: 1704-20-20-FG (20MJ-20Flange 90 ...)

Stock Status: True

TUBE O.D.1-1/4
1 THREAD1-5/8-12
2 FLANGE1-1/4
L1 (IN.)2.060
L2 (IN.)2.620
A/F (IN.)1.625
MATERIALSTEEL FORGED

1704-20-24-FG

$177.42

Attribute: 1704-20-24-FG (20MJ-24Flange 90 ...)

Stock Status: True

TUBE O.D.1 1/4
1 THREAD1 5/8-12 UN
2 FLANGE1 1/2
L1 (IN.)2.330
L2 (IN.)3.150
A/F (IN.)1.875
MATERIALSTEEL FORGED

1704-24-20-FG

$179.19

Attribute: 1704-24-20-FG (24MJ-20Flange 90 ...)

Stock Status: True

TUBE O.D.1 1/2
1 THREAD1-7/8-12
2 FLANGE1 1/4
L1 (IN.)2.060
L2 (IN.)2.620
A/F (IN.)1.625
MATERIALSTEEL FORGED

1704-24-24-FG

$191.58

Attribute: 1704-24-24-FG (24MJ-24Flange 90 ...)

Stock Status: True

TUBE O.D.1-1/2
1 THREAD1-7/8-12
2 FLANGE1-1/2
L1 (IN.)2.330
L2 (IN.)3.150
A/F (IN.)1.875
MATERIALSTEEL FORGED

1704-24-32-FG

$423.97

Attribute: 1704-24-32-FG (24MJ-32Flange 90 ...)

Stock Status: True

TUBE O.D.1 1/2
1 THREAD1 7/8-12 UN
2 FLANGE2
L1 (IN.)3.060
L2 (IN.)4.250
A/F (IN.)2.500
MATERIALSTEEL FORGED

1704-32-24-FG

$463.79

Attribute: 1704-32-24-FG (32MJ-24Flange 90 ...)

Stock Status: True

TUBE O.D.2
1 THREAD2-1/2-12
2 FLANGE1-1/2
L1 (IN.)3.060
L2 (IN.)4.250
A/F (IN.)2.500
MATERIALSTEEL FORGED

1704-32-32-FG

$505.38

Attribute: 1704-32-32-FG (32MJ-32Flange 90 ...)

Stock Status: True

TUBE O.D.2
1 THREAD2 1/2-12 UN
2 FLANGE2
L1 (IN.)3.06
L2 (IN.)4.25
A/F (IN.)2.500
MATERIALSTEEL FORGED

General Attributes

Connections JIC, Flange
Shape Elbow

PDF Documents

Download CAD and Drawings Open PDF
