1704

1704-08-08

$69.69

Attribute: 1704-08-08 (08MJ-08Flange 90 Elb...)

Stock Status: True

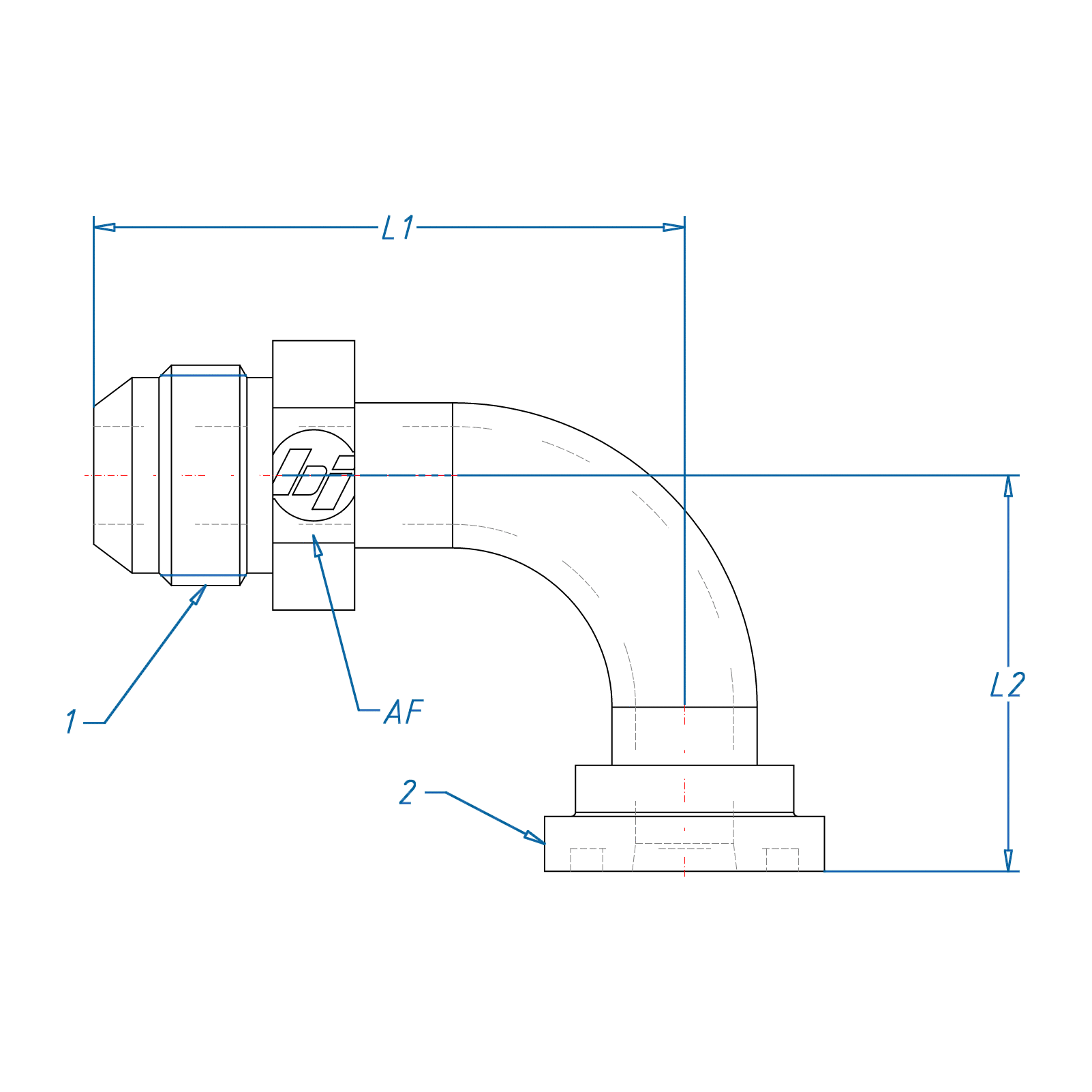

TUBE O.D.	1/2
1 THREAD	3/4-16 UNF
2 FLANGE	1/2
L1 (IN.)	2.32
L2 (IN.)	1.81
A/F (IN.)	7/8
MATERIAL	STEEL

1704-08-08-SS

$112.80

Attribute: 1704-08-08-SS (08MJ-08Flange 90 ...)

Stock Status: True

TUBE O.D.	1/2
1 THREAD	3/4-16
2 FLANGE	1/2
L1 (IN.)	2.32
L2 (IN.)	1.81
A/F (IN.)	.875
MATERIAL	STAINLESS STEEL

1704-08-12

$75.81

Attribute: 1704-08-12 (08MJ-12Flange 90 Elb...)

Stock Status: True

TUBE O.D.	1/2
1 THREAD	3/4-16 UNF
2 FLANGE	3/4
L1 (IN.)	2.32
L2 (IN.)	1.85
A/F (IN.)	7/8
MATERIAL	STEEL

1704-08-12-SS

$242.35

Attribute: 1704-08-12-SS (08MJ-12Flange 90 ...)

Stock Status: True

TUBE O.D.	1/2
1 THREAD	3/4-16 UNF
2 FLANGE	3/4
L1 (IN.)	2.32
L2 (IN.)	1.85
A/F (IN.)	7/8
MATERIAL	STAINLESS STEEL

1704-10-10

$71.20

Attribute: 1704-10-10 (10MJ-10Flange 90 Elb...)

Stock Status: True

TUBE O.D.	5/8
1 THREAD	7/8-14
2 FLANGE	5/8
L1 (IN.)	2.729
L2 (IN.)	2.114
A/F (IN.)	.9375
MATERIAL	STEEL

1704-12-10

$80.84

Attribute: 1704-12-10 (12MJ-10Flange 90 Elb...)

Stock Status: True

TUBE O.D.	3/4
1 THREAD	1-1/16-12
2 FLANGE	5/8
L1 (IN.)	2.850
L2 (IN.)	1.910
A/F (IN.)	1.125
MATERIAL	STEEL

1704-12-12

$76.30

Attribute: 1704-12-12 (12MJ-12Flange 90 Elb...)

Stock Status: True

TUBE O.D.	3/4
1 THREAD	1 1/16-12 UN
2 FLANGE	3/4
L1 (IN.)	2.83
L2 (IN.)	2.13
A/F (IN.)	1 1/8
MATERIAL	STEEL

1704-12-12-SS

$162.49

Attribute: 1704-12-12-SS (12MJ-12Flange 90 ...)

Stock Status: True

TUBE O.D.	3/4
1 THREAD	1 1/16-12 UN
2 FLANGE	3/4
L1 (IN.)	2.83
L2 (IN.)	2.13
A/F (IN.)	1 1/8
MATERIAL	STAINLESS STEEL

1704-12-16

$109.02

Attribute: 1704-12-16 (12MJ-16Flange 90 Elb...)

Stock Status: True

TUBE O.D.	3/4
1 THREAD	1 1/16-12 UN
2 FLANGE	1
L1 (IN.)	2.83
L2 (IN.)	2.13
A/F (IN.)	1 1/8
MATERIAL	STEEL

1704-12-16-SS

$422.08

Attribute: 1704-12-16-SS (12MJ-16Flange 90 ...)

Stock Status: True

TUBE O.D.	3/4
1 THREAD	1 1/16-12 UN
2 FLANGE	1
L1 (IN.)	2.83
L2 (IN.)	2.13
A/F (IN.)	1 1/8
MATERIAL	STAINLESS STEEL

1704-12-20

$100.12

Attribute: 1704-12-20 (12MJ-20Flange 90 Elb...)

Stock Status: True

TUBE O.D.	3/4
1 THREAD	1 1/16-12 UN
2 FLANGE	1 1/4
L1 (IN.)	2.83
L2 (IN.)	2.13
A/F (IN.)	1 1/8
MATERIAL	STEEL

1704-12-20-SS

$509.70

Attribute: 1704-12-20-SS (12MJ-20Flange 90 ...)

Stock Status: True

TUBE O.D.	3/4
1 THREAD	1 1/16-12 UN
2 FLANGE	1 1/4
L1 (IN.)	2.83
L2 (IN.)	2.13
A/F (IN.)	1 1/8
MATERIAL	STAINLESS STEEL

1704-12-24

$133.50

Attribute: 1704-12-24 (12MJ-24Flange 90 Elb...)

Stock Status: True

TUBE O.D.	3/4
1 THREAD	1-1/16-12
2 FLANGE	1-1/2
L1 (IN.)	2.901
L2 (IN.)	2.458
A/F (IN.)	1.125
MATERIAL	STEEL

1704-12-24-SS

$672.70

Attribute: 1704-12-24-SS (12MJ-24Flange 90 ...)

Stock Status: True

TUBE O.D.	3/4
1 THREAD	1 1/16-12 UN
2 FLANGE	1 1/2
L1 (IN.)	2.901
L2 (IN.)	2.458
A/F (IN.)	1.125
MATERIAL	STAINLESS STEEL

1704-16-12

$121.98

Attribute: 1704-16-12 (16MJ-12Flange 90 Elb...)

Stock Status: True

TUBE O.D.	1
1 THREAD	1 5/16-12 UN
2 FLANGE	3/4
L1 (IN.)	2.95
L2 (IN.)	2.13
A/F (IN.)	1 3/8
MATERIAL	STEEL

1704-16-12-SS

$395.00

Attribute: 1704-16-12-SS (16MJ-12Flange 90 ...)

Stock Status: True

TUBE O.D.	1
1 THREAD	1 5/16-12 UN
2 FLANGE	3/4
L1 (IN.)	2.95
L2 (IN.)	2.13
A/F (IN.)	1 3/8
MATERIAL	STAINLESS STEEL

1704-16-16

$105.72

Attribute: 1704-16-16 (16MJ-16Flange 90 Elb...)

Stock Status: True

TUBE O.D.	1
1 THREAD	1 5/16-12 UN
2 FLANGE	1
L1 (IN.)	3.39
L2 (IN.)	2.60
A/F (IN.)	1 3/8
MATERIAL	STEEL

1704-16-16-SS

$327.30

Attribute: 1704-16-16-SS (16MJ-16Flange 90 ...)

Stock Status: True

TUBE O.D.	1
1 THREAD	1 5/16-12 UN
2 FLANGE	1
L1 (IN.)	3.39
L2 (IN.)	2.60
A/F (IN.)	1 3/8
MATERIAL	STAINLESS STEEL

1704-16-20

$129.50

Attribute: 1704-16-20 (16MJ-20Flange 90 Elb...)

Stock Status: True

TUBE O.D.	1
1 THREAD	1 5/16-12 UN
2 FLANGE	1 1/4
L1 (IN.)	3.39
L2 (IN.)	2.60
A/F (IN.)	1 3/8
MATERIAL	STEEL

1704-16-20-SS

$517.31

Attribute: 1704-16-20-SS (16MJ-20Flange 90 ...)

Stock Status: True

TUBE O.D.	1
1 THREAD	1 5/16-12 UN
2 FLANGE	1 1/4
L1 (IN.)	3.39
L2 (IN.)	2.60
A/F (IN.)	1 3/8
MATERIAL	STAINLESS STEEL

1704-16-24

$219.06

Attribute: 1704-16-24 (16MJ-24Flange 90 Elb...)

Stock Status: True

TUBE O.D.	1
1 THREAD	1 5/16-12 UN
2 FLANGE	1 1/2
L1 (IN.)	3.39
L2 (IN.)	2.66
A/F (IN.)	1 3/8
MATERIAL	STEEL

1704-16-24-SS

$705.73

Attribute: 1704-16-24-SS (16MJ-24Flange 90 ...)

Stock Status: True

TUBE O.D.	1
1 THREAD	1 5/16-12 UN
2 FLANGE	1 1/2
L1 (IN.)	3.39
L2 (IN.)	2.66
A/F (IN.)	1 3/8
MATERIAL	STAINLESS STEEL

1704-20-12

$225.84

Attribute: 1704-20-12 (20MJ-12Flange 90 Elb...)

Stock Status: True

TUBE O.D.	1-1/4
1 THREAD	1-5/8-12
2 FLANGE	3/4
L1 (IN.)	3.052
L2 (IN.)	2.26
A/F (IN.)	1.6875
MATERIAL	STEEL

1704-20-12-SS

$541.95

Attribute: 1704-20-12-SS (20MJ-12Flange 90 ...)

Stock Status: True

TUBE O.D.	1-1/4
1 THREAD	1-5/8-12
2 FLANGE	3/4
L1 (IN.)	3.052
L2 (IN.)	2.26
A/F (IN.)	1.6875
MATERIAL	STAINLESS STEEL

1704-20-16

$155.80

Attribute: 1704-20-16 (20MJ-16Flange 90 Elb...)

Stock Status: True

TUBE O.D.	1 1/4
1 THREAD	1 5/8-12 UN
2 FLANGE	1
L1 (IN.)	3.54
L2 (IN.)	2.60
A/F (IN.)	1 11/16
MATERIAL	STEEL

1704-20-16-SS

$558.74

Attribute: 1704-20-16-SS (20MJ-16Flange 90 ...)

Stock Status: True

TUBE O.D.	1 1/4
1 THREAD	1 5/8-12 UN
2 FLANGE	1
L1 (IN.)	3.54
L2 (IN.)	2.60
A/F (IN.)	1 11/16
MATERIAL	STAINLESS STEEL

1704-20-20

$172.41

Attribute: 1704-20-20 (20MJ-20Flange 90 Elb...)

Stock Status: True

TUBE O.D.	1 1/4
1 THREAD	1 5/8-12 UN
2 FLANGE	1 1/4
L1 (IN.)	3.98
L2 (IN.)	3.03
A/F (IN.)	1 11/16
MATERIAL	STEEL

1704-20-20-SS

$410.89

Attribute: 1704-20-20-SS (20MJ-20Flange 90 ...)

Stock Status: True

TUBE O.D.	1 1/4
1 THREAD	1 5/8-12 UN
2 FLANGE	1 1/4
L1 (IN.)	3.98
L2 (IN.)	3.03
A/F (IN.)	1 11/16
MATERIAL	STAINLESS STEEL

1704-20-24

$241.80

Attribute: 1704-20-24 (20MJ-24Flange 90 Elb...)

Stock Status: True

TUBE O.D.	1 1/4
1 THREAD	1 5/8-12 UN
2 FLANGE	1 1/2
L1 (IN.)	3.98
L2 (IN.)	3.11
A/F (IN.)	1 11/16
MATERIAL	STEEL

1704-20-24-SS

$949.87

Attribute: 1704-20-24-SS (20MJ-24Flange 90 ...)

Stock Status: True

TUBE O.D.	1 1/4
1 THREAD	1 5/8-12 UN
2 FLANGE	1 1/2
L1 (IN.)	3.98
L2 (IN.)	3.11
A/F (IN.)	1 11/16
MATERIAL	STAINLESS STEEL

1704-20-32

$343.63

Attribute: 1704-20-32 (20MJ-32Flange 90 Elb...)

Stock Status: True

TUBE O.D.	1-1/4
1 THREAD	1-5/8-12
2 FLANGE	2
L1 (IN.)	3.976
L2 (IN.)	3.504
A/F (IN.)	1.688
MATERIAL	STEEL

1704-20-32-SS

$1,360.41

Attribute: 1704-20-32-SS (20MJ-32Flange 90 ...)

Stock Status: True

TUBE O.D.	1-1/4
1 THREAD	1-5/8-12
2 FLANGE	2
L1 (IN.)	3.976
L2 (IN.)	3.503
A/F (IN.)	1.688
MATERIAL	STAINLESS STEEL

1704-24-16

$183.35

Attribute: 1704-24-16 (24MJ-16Flange 90 Elb...)

Stock Status: True

TUBE O.D.	1-1/2
1 THREAD	1-7/8-12
2 FLANGE	1
L1 (IN.)	4.039
L2 (IN.)	2.849
A/F (IN.)	2.000
MATERIAL	STEEL

1704-24-16-SS

$713.42

Attribute: 1704-24-16-SS (24MJ-16Flange 90 ...)

Stock Status: True

TUBE O.D.	1-1/2
1 THREAD	1-7/8-12
2 FLANGE	1
L1 (IN.)	4.039
L2 (IN.)	2.849
A/F (IN.)	2.000
MATERIAL	STAINLESS STEEL

1704-24-20

$176.81

Attribute: 1704-24-20 (24MJ-20Flange 90 Elb...)

Stock Status: True

TUBE O.D.	1 1/2
1 THREAD	1 7/8-12 UN
2 FLANGE	1 1/4
L1 (IN.)	4.21
L2 (IN.)	3.03
A/F (IN.)	2
MATERIAL	STEEL

1704-24-20-SS

$731.32

Attribute: 1704-24-20-SS (24MJ-20Flange 90 ...)

Stock Status: True

TUBE O.D.	1 1/2
1 THREAD	1 7/8-12 UN
2 FLANGE	1 1/4
L1 (IN.)	4.21
L2 (IN.)	3.03
A/F (IN.)	2
MATERIAL	STAINLESS STEEL

1704-24-24

$183.15

Attribute: 1704-24-24 (24MJ-24Flange 90 Elb...)

Stock Status: True

TUBE O.D.	1 1/2
1 THREAD	1 7/8-12 UN
2 FLANGE	1 1/2
L1 (IN.)	4.57
L2 (IN.)	3.66
A/F (IN.)	2
MATERIAL	STEEL

1704-24-24-SS

$585.32

Attribute: 1704-24-24-SS (24MJ-24Flange 90 ...)

Stock Status: True

TUBE O.D.	1 1/2
1 THREAD	1 7/8-12 UN
2 FLANGE	1 1/2
L1 (IN.)	4.57
L2 (IN.)	3.66
A/F (IN.)	2
MATERIAL	STAINLESS STEEL

1704-24-32

$387.32

Attribute: 1704-24-32 (24MJ-32Flange 90 Elb...)

Stock Status: True

TUBE O.D.	1 1/2
1 THREAD	1 7/8-12 UN
2 FLANGE	2
L1 (IN.)	4.57
L2 (IN.)	3.86
A/F (IN.)	2
MATERIAL	STEEL

1704-24-32-SS

$1,492.21

Attribute: 1704-24-32-SS (24MJ-32Flange 90 ...)

Stock Status: True

TUBE O.D.	1 1/2
1 THREAD	1 7/8-12 UN
2 FLANGE	2
L1 (IN.)	4.57
L2 (IN.)	3.86
A/F (IN.)	2
MATERIAL	STAINLESS STEEL

1704-32-24

$434.42

Attribute: 1704-32-24 (32MJ-24Flange 90 Elb...)

Stock Status: True

TUBE O.D.	2
1 THREAD	2 1/2-12 UN
2 FLANGE	1 1/2
L1 (IN.)	5.04
L2 (IN.)	3.66
A/F (IN.)	2 3/4
MATERIAL	STEEL

1704-32-24-SS

$890.97

Attribute: 1704-32-24-SS (32MJ-24Flange 90 ...)

Stock Status: True

TUBE O.D.	2
1 THREAD	2 1/2-12 UN
2 FLANGE	1 1/2
L1 (IN.)	5.04
L2 (IN.)	3.66
A/F (IN.)	2 5/8
MATERIAL	STAINLESS STEEL

1704-32-32

$431.75

Attribute: 1704-32-32 (32MJ-32Flange 90 Elb...)

Stock Status: True

TUBE O.D.	2
1 THREAD	2 1/2-12 UN
2 FLANGE	2
L1 (IN.)	5.79
L2 (IN.)	4.84
A/F (IN.)	2 3/4
MATERIAL	STEEL

1704-32-32-SS

$1,300.01

Attribute: 1704-32-32-SS (32MJ-32Flange 90 ...)

Stock Status: True

TUBE O.D.	2
1 THREAD	2 1/2-12 UN
2 FLANGE	2
L1 (IN.)	5.79
L2 (IN.)	4.84
A/F (IN.)	2 3/4
MATERIAL	STAINLESS STEEL

1704-32-40

$450.96

Attribute: 1704-32-40 (32MJ-40Flange 90 Elb...)

Stock Status: True

TUBE O.D.	2
1 THREAD	2-1/2-12UN
2 FLANGE	2-1/2
L1 (IN.)	5.91
L2 (IN.)	4.92
A/F (IN.)	2-3/4
MATERIAL	STEEL

1704-32-40-SS

$1,749.33

Attribute: 1704-32-40-SS (32MJ-40Flange 90 ...)

Stock Status: True

TUBE O.D.	2
1 THREAD	2-1/2-12UN
2 FLANGE	2-1/2
L1 (IN.)	5.91
L2 (IN.)	4.92
A/F (IN.)	2-3/4
MATERIAL	STAINLESS STEEL

Connections	JIC, Flange
Shape	Elbow

ID	10151670
Category	Flange Fittings

Description

Description

Variations (46)

1704-08-08

1704-08-08-SS

1704-08-12

1704-08-12-SS

1704-10-10

1704-12-10

1704-12-12

1704-12-12-SS

1704-12-16

1704-12-16-SS

1704-12-20

1704-12-20-SS

1704-12-24

1704-12-24-SS

1704-16-12

1704-16-12-SS

1704-16-16

1704-16-16-SS

1704-16-20

1704-16-20-SS

1704-16-24

1704-16-24-SS

1704-20-12

1704-20-12-SS

1704-20-16

1704-20-16-SS

1704-20-20

1704-20-20-SS

1704-20-24

1704-20-24-SS

1704-20-32

1704-20-32-SS

1704-24-16

1704-24-16-SS

1704-24-20

1704-24-20-SS

1704-24-24

1704-24-24-SS

1704-24-32

1704-24-32-SS

1704-32-24

1704-32-24-SS

1704-32-32

1704-32-32-SS

1704-32-40

1704-32-40-SS

General Attributes

PDF Documents
