Flange Fittings

1703-FG

Scraped 2026-02-15 08:27:29

Description

Description

MJ-FLANGE 45 Code 61

Variations (5)

1703-12-12-FG

$83.72

Attribute: 1703-12-12-FG (12MJ-12Flange 45 ...)

Stock Status: True

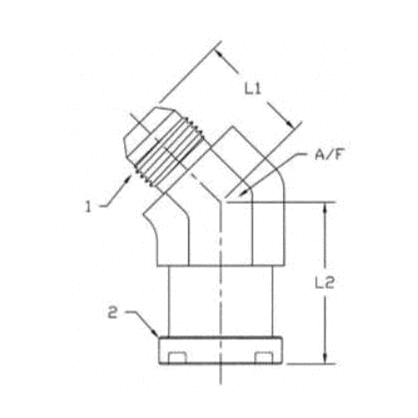

TUBE O.D.3/4
1 THREAD1 1/16-12 UN
2 FLANGE3/4
L1 (IN.)1.280
L2 (IN.)1.580
A/F (IN.)1.0625
MATERIALSTEEL FORGED

1703-16-16-FG

$72.03

Attribute: 1703-16-16-FG (16MJ-16Flange 45 ...)

Stock Status: True

TUBE O.D.1
1 THREAD1 5/16-12 UN
2 FLANGE1
L1 (IN.)1.470
L2 (IN.)1.850
A/F (IN.)1.3125
MATERIALSTEEL FORGED

1703-20-20-FG

$100.80

Attribute: 1703-20-20-FG (20MJ-20Flange 45 ...)

Stock Status: True

TUBE O.D.1 1/4
1 THREAD1 5/8-12 UN
2 FLANGE1 1/4
L1 (IN.)1.590
L2 (IN.)2.040
A/F (IN.)1.625
MATERIALSTEEL FORGED

1703-24-24-FG

$184.83

Attribute: 1703-24-24-FG (24MJ-24Flange 45 ...)

Stock Status: True

TUBE O.D.1 1/2
1 THREAD1 7/8-12 UN
2 FLANGE1 1/2
L1 (IN.)1.78
L2 (IN.)2.38
A/F (IN.)1 7/8
MATERIALSTEEL FORGED

1703-32-32-FG

$323.84

Attribute: 1703-32-32-FG (32MJ-32Flange 45 ...)

Stock Status: True

TUBE O.D.2
1 THREAD2 1/2-12 UN
2 FLANGE2
L1 (IN.)2.220
L2 (IN.)3.000
A/F (IN.)2.500
MATERIALSTEEL FORGED

General Attributes

Connections JIC, Flange
Shape Elbow
