1703

1703-08-08

$64.42

Attribute: 1703-08-08 (08MJ-08Flange 45 Elb...)

Stock Status: True

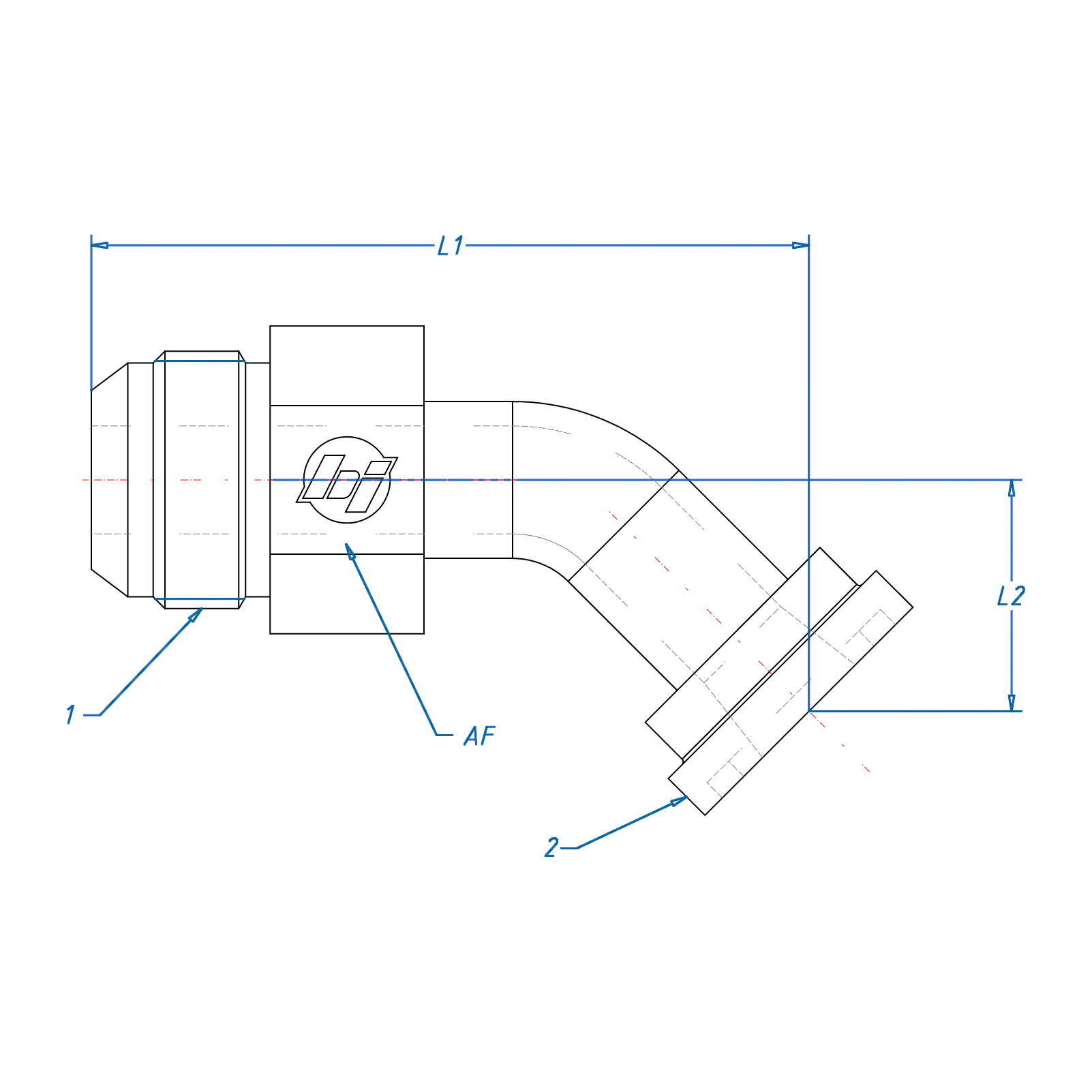

TUBE O.D.	1/2
1 THREAD	3/4-16 UNF
2 FLANGE	1/2
L1 (IN.)	2.72
L2 (IN.)	0.91
A/F (IN.)	7/8
MATERIAL	STEEL

1703-08-08-SS

$149.99

Attribute: 1703-08-08-SS (08MJ-08Flange 45 ...)

Stock Status: True

TUBE O.D.	1/2
1 THREAD	3/4-16 UNF
2 FLANGE	1/2
L1 (IN.)	2.72
L2 (IN.)	0.91
A/F (IN.)	7/8
MATERIAL	STAINLESS STEEL

1703-08-12

$81.25

Attribute: 1703-08-12 (08MJ-12Flange 45 Elb...)

Stock Status: True

TUBE O.D.	1/2
1 THREAD	3/4-16 UNF
2 FLANGE	3/4
L1 (IN.)	2.72
L2 (IN.)	0.94
A/F (IN.)	7/8
MATERIAL	STEEL

1703-08-12-SS

$99.64

Attribute: 1703-08-12-SS (08MJ-12Flange 45 ...)

Stock Status: True

TUBE O.D.	1/2
1 THREAD	3/4-16 UNF
2 FLANGE	3/4
L1 (IN.)	2.72
L2 (IN.)	0.94
A/F (IN.)	7/8
MATERIAL	STAINLESS STEEL

1703-12-12

$92.07

Attribute: 1703-12-12 (12MJ-12Flange 45 Elb...)

Stock Status: True

TUBE O.D.	3/4
1 THREAD	1 1/16-12 UN
2 FLANGE	3/4
L1 (IN.)	3.15
L2 (IN.)	1.02
A/F (IN.)	1 1/8
MATERIAL	STEEL

1703-12-12-SS

$156.78

Attribute: 1703-12-12-SS (12MJ-12Flange 45 ...)

Stock Status: True

TUBE O.D.	3/4
1 THREAD	1 1/16-12 UN
2 FLANGE	3/4
L1 (IN.)	3.150
L2 (IN.)	1.020
A/F (IN.)	1 1/8
MATERIAL	STAINLESS STEEL

1703-12-16

$112.84

Attribute: 1703-12-16 (12MJ-16Flange 45 Elb...)

Stock Status: True

TUBE O.D.	3/4
1 THREAD	1 1/16-12 UN
2 FLANGE	1
L1 (IN.)	3.15
L2 (IN.)	1.02
A/F (IN.)	1 1/8
MATERIAL	STEEL

1703-12-16-SS

$178.05

Attribute: 1703-12-16-SS (12MJ-16Flange 45 ...)

Stock Status: True

TUBE O.D.	3/4
1 THREAD	1 1/16-12 UN
2 FLANGE	1
L1 (IN.)	3.15
L2 (IN.)	1.02
A/F (IN.)	1 1/8
MATERIAL	STAINLESS STEEL

1703-12-20

$174.60

Attribute: 1703-12-20 (12MJ-20Flange 45 Elb...)

Stock Status: True

TUBE O.D.	3/4
1 THREAD	1 1/16-12 UN
2 FLANGE	1 1/4
L1 (IN.)	3.15
L2 (IN.)	1.02
A/F (IN.)	1 1/8
MATERIAL	STEEL

1703-12-20-SS

$233.05

Attribute: 1703-12-20-SS (12MJ-20Flange 45 ...)

Stock Status: True

TUBE O.D.	3/4
1 THREAD	1 1/16-12 UN
2 FLANGE	1 1/4
L1 (IN.)	3.15
L2 (IN.)	1.02
A/F (IN.)	1 1/8
MATERIAL	STAINLESS STEEL

1703-16-12

$151.19

Attribute: 1703-16-12 (16MJ-12Flange 45 Elb...)

Stock Status: True

TUBE O.D.	1
1 THREAD	1 5/16-12 UN
2 FLANGE	3/4
L1 (IN.)	3.66
L2 (IN.)	1.18
A/F (IN.)	1 3/8
MATERIAL	STEEL

1703-16-12-SS

$192.70

Attribute: 1703-16-12-SS (16MJ-12Flange 45 ...)

Stock Status: True

TUBE O.D.	1
1 THREAD	1 5/16-12 UN
2 FLANGE	3/4
L1 (IN.)	3.66
L2 (IN.)	1.18
A/F (IN.)	1 3/8
MATERIAL	STAINLESS STEEL

1703-16-16

$93.87

Attribute: 1703-16-16 (16MJ-16Flange 45 Elb...)

Stock Status: True

TUBE O.D.	1
1 THREAD	1 5/16-12 UN
2 FLANGE	1
L1 (IN.)	3.66
L2 (IN.)	1.18
A/F (IN.)	1 3/8
MATERIAL	STEEL

1703-16-16-SS

$205.36

Attribute: 1703-16-16-SS (16MJ-16Flange 45 ...)

Stock Status: True

TUBE O.D.	1
1 THREAD	1 5/16-12 UN
2 FLANGE	1
L1 (IN.)	3.66
L2 (IN.)	1.18
A/F (IN.)	1 3/8
MATERIAL	STAINLESS STEEL

1703-16-20

$156.70

Attribute: 1703-16-20 (16MJ-20Flange 45 Elb...)

Stock Status: True

TUBE O.D.	1
1 THREAD	1 5/16-12 UN
2 FLANGE	1 1/4
L1 (IN.)	3.66
L2 (IN.)	1.18
A/F (IN.)	1 3/8
MATERIAL	STEEL

1703-16-20-SS

$251.85

Attribute: 1703-16-20-SS (16MJ-20Flange 45 ...)

Stock Status: True

TUBE O.D.	1
1 THREAD	1 5/16-12 UN
2 FLANGE	1 1/4
L1 (IN.)	3.66
L2 (IN.)	1.18
A/F (IN.)	1 3/8
MATERIAL	STAINLESS STEEL

1703-16-24

$201.16

Attribute: 1703-16-24 (16MJ-24Flange 45 Elb...)

Stock Status: True

TUBE O.D.	1
1 THREAD	1 5/16-12 UN
2 FLANGE	1 1/2
L1 (IN.)	3.74
L2 (IN.)	1.26
A/F (IN.)	1 3/8
MATERIAL	STEEL

1703-16-24-SS

$357.90

Attribute: 1703-16-24-SS (16MJ-24Flange 45 ...)

Stock Status: True

TUBE O.D.	1
1 THREAD	1 5/16-12 UN
2 FLANGE	1 1/2
L1 (IN.)	3.74
L2 (IN.)	1.26
A/F (IN.)	1 3/8
MATERIAL	STAINLESS STEEL

1703-20-12

$202.08

Attribute: 1703-20-12 (20MJ-12Flange 45 Elb...)

Stock Status: True

TUBE O.D.	1 1/4
1 THREAD	1 5/8-12 UN
2 FLANGE	3/4
L1 (IN.)	3.78
L2 (IN.)	1.18
A/F (IN.)	1 11/16
MATERIAL	STEEL

1703-20-16

$201.38

Attribute: 1703-20-16 (20MJ-16Flange 45 Elb...)

Stock Status: True

TUBE O.D.	1 1/4
1 THREAD	1 5/8-12 UN
2 FLANGE	1
L1 (IN.)	3.86
L2 (IN.)	1.22
A/F (IN.)	1 11/16
MATERIAL	STEEL

1703-20-16-SS

$248.80

Attribute: 1703-20-16-SS (20MJ-16Flange 45 ...)

Stock Status: True

TUBE O.D.	1 1/4
1 THREAD	1 5/8-12 UN
2 FLANGE	1
L1 (IN.)	3.86
L2 (IN.)	1.22
A/F (IN.)	1 11/16
MATERIAL	STAINLESS STEEL

1703-20-20

$167.93

Attribute: 1703-20-20 (20MJ-20Flange 45 Elb...)

Stock Status: True

TUBE O.D.	1 1/4
1 THREAD	1 5/8-12 UN
2 FLANGE	1 1/4
L1 (IN.)	4.21
L2 (IN.)	1.38
A/F (IN.)	1 11/16
MATERIAL	STEEL

1703-20-20-SS

$290.40

Attribute: 1703-20-20-SS (20MJ-20Flange 45 ...)

Stock Status: True

TUBE O.D.	1 1/4
1 THREAD	1 5/8-12 UN
2 FLANGE	1 1/4
L1 (IN.)	4.21
L2 (IN.)	1.38
A/F (IN.)	1 11/16
MATERIAL	STAINLESS STEEL

1703-20-24

$230.26

Attribute: 1703-20-24 (20MJ-24Flange 45 Elb...)

Stock Status: True

TUBE O.D.	1 1/4
1 THREAD	1 5/8-12 UN
2 FLANGE	1 1/2
L1 (IN.)	4.25
L2 (IN.)	1.42
A/F (IN.)	1 11/16
MATERIAL	STEEL

1703-20-24-SS

$390.85

Attribute: 1703-20-24-SS (20MJ-24Flange 45 ...)

Stock Status: True

TUBE O.D.	1 1/4
1 THREAD	1 5/8-12 UN
2 FLANGE	1 1/2
L1 (IN.)	4.25
L2 (IN.)	1.42
A/F (IN.)	1 11/16
MATERIAL	STAINLESS STEEL

1703-24-16

$407.64

Attribute: 1703-24-16 (24MJ-16Flange 45 Elb...)

Stock Status: True

TUBE O.D.	1-1/2
1 THREAD	1-7/8-12
2 FLANGE	1
L1 (IN.)	4.165
L2 (IN.)	1.200
A/F (IN.)	2.00
MATERIAL	STEEL

1703-24-20

$199.24

Attribute: 1703-24-20 (24MJ-20Flange 45 Elb...)

Stock Status: True

TUBE O.D.	1 1/2
1 THREAD	1 7/8-12 UN
2 FLANGE	1 1/4
L1 (IN.)	4.70
L2 (IN.)	1.46
A/F (IN.)	2
MATERIAL	STEEL

1703-24-20-SS

$452.03

Attribute: 1703-24-20-SS (24MJ-20Flange 45 ...)

Stock Status: True

TUBE O.D.	1 1/2
1 THREAD	1 7/8-12 UN
2 FLANGE	1 1/4
L1 (IN.)	4.70
L2 (IN.)	1.46
A/F (IN.)	2
MATERIAL	STAINLESS STEEL

1703-24-24

$292.04

Attribute: 1703-24-24 (24MJ-24Flange 45 Elb...)

Stock Status: True

TUBE O.D.	1 1/2
1 THREAD	1 7/8-12 UN
2 FLANGE	1 1/2
L1 (IN.)	4.96
L2 (IN.)	1.69
A/F (IN.)	2
MATERIAL	STEEL

1703-24-24-SS

$459.51

Attribute: 1703-24-24-SS (24MJ-24Flange 45 ...)

Stock Status: True

TUBE O.D.	1 1/2
1 THREAD	1 7/8-12 UN
2 FLANGE	1 1/2
L1 (IN.)	4.96
L2 (IN.)	1.69
A/F (IN.)	2
MATERIAL	STAINLESS STEEL

1703-24-32

$449.72

Attribute: 1703-24-32 (24MJ-32Flange 45 Elb...)

Stock Status: True

TUBE O.D.	1 1/2
1 THREAD	1 7/8-12 UN
2 FLANGE	2
L1 (IN.)	5.12
L2 (IN.)	1.81
A/F (IN.)	2
MATERIAL	STEEL

1703-24-32-SS

$619.09

Attribute: 1703-24-32-SS (24MJ-32Flange 45 ...)

Stock Status: True

TUBE O.D.	1 1/2
1 THREAD	1 7/8-12 UN
2 FLANGE	2
L1 (IN.)	5.12
L2 (IN.)	1.81
A/F (IN.)	2
MATERIAL	STAINLESS STEEL

1703-32-24-SS

$1,514.79

Attribute: 1703-32-24-SS (32MJ-24Flange 45 ...)

Stock Status: True

TUBE O.D.	2
1 THREAD	2-1/2-12
2 FLANGE	1-1/2
L1 (IN.)	6.22
L2 (IN.)	2.17
A/F (IN.)	2.7500
MATERIAL	STAINLESS STEEL

1703-32-32

$485.68

Attribute: 1703-32-32 (32MJ-32Flange 45 Elb...)

Stock Status: True

TUBE O.D.	2
1 THREAD	2 1/2-12 UN
2 FLANGE	2
L1 (IN.)	6.22
L2 (IN.)	2.17
A/F (IN.)	2 3/4
MATERIAL	STEEL

1703-32-32-SS

$1,635.33

Attribute: 1703-32-32-SS (32MJ-32Flange 45 ...)

Stock Status: True

TUBE O.D.	2
1 THREAD	2 1/2-12 UN
2 FLANGE	2
L1 (IN.)	6.22
L2 (IN.)	2.17
A/F (IN.)	2 3/4
MATERIAL	STAINLESS STEEL

Connections	JIC, Flange
Shape	Elbow

ID	10151624
Category	Flange Fittings
