Description

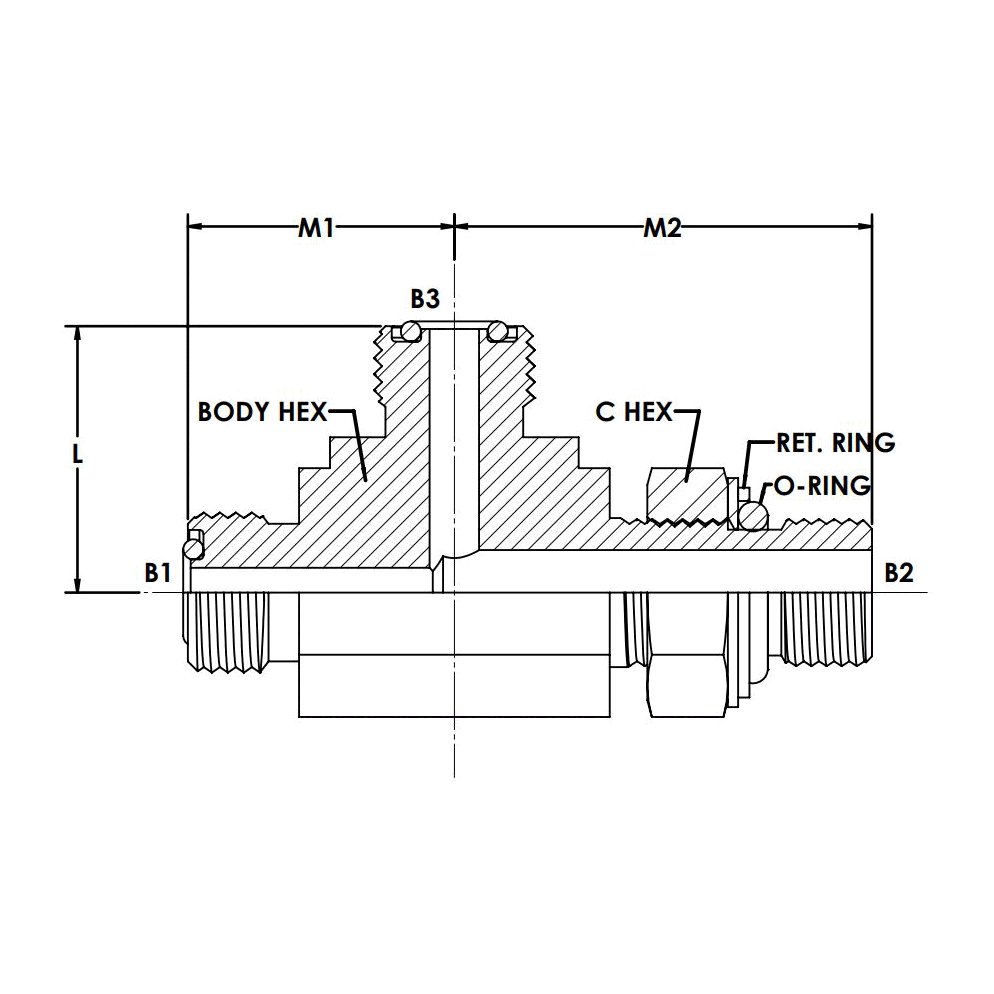

MFS-MBSPPAORB RR-MJ TEE. MALE BSPP ADJUSTABLE WITH O-RING AND RETAINING RING
Description
Variations (9)
FS7402-04-04-04-NWO-FG
$51.99Attribute: FS7402-04-04-04-NWO-FG (04MFS-04...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 9/16-18 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B2 | 1/4-19 |
| THREAD SPECIFICATION B2 | BS 5200 |
| THREAD TYPE B3 | MALE FACE SEAL O-RING |
| THREAD SIZE B3 | 9/16-18 |
| THREAD SPECIFICATION B3 | SAE J1453 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7402-06-04-06-NWO-FG
$35.54Attribute: FS7402-06-04-06-NWO-FG (06MFS-04...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 11/16-16 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B2 | 1/4-19 |
| THREAD SPECIFICATION B2 | BS 5200 |
| THREAD TYPE B3 | MALE FACE SEAL O-RING |
| THREAD SIZE B3 | 11/16-16 |
| THREAD SPECIFICATION B3 | SAE J1453 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7402-06-06-06-NWO-FG
$71.52Attribute: FS7402-06-06-06-NWO-FG (06MFS-06...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 11/16-16 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B2 | 3/8-19 |
| THREAD SPECIFICATION B2 | BS 5200 |
| THREAD TYPE B3 | MALE FACE SEAL O-RING |
| THREAD SIZE B3 | 11/16-16 |
| THREAD SPECIFICATION B3 | SAE J1453 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7402-08-06-08-NWO-FG
$76.89Attribute: FS7402-08-06-08-NWO-FG (08MFS-06...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 13/16-16 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B2 | 3/8-19 |
| THREAD SPECIFICATION B2 | BS 5200 |
| THREAD TYPE B3 | MALE FACE SEAL O-RING |
| THREAD SIZE B3 | 13/16-16 |
| THREAD SPECIFICATION B3 | SAE J1453 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7402-08-08-08-NWO-FG
$63.94Attribute: FS7402-08-08-08-NWO-FG (08MFS-08...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 13/16-16 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B2 | 1/2-14 |
| THREAD SPECIFICATION B2 | BS 5200 |
| THREAD TYPE B3 | MALE FACE SEAL O-RING |
| THREAD SIZE B3 | 13/16-16 |
| THREAD SPECIFICATION B3 | SAE J1453 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7402-10-08-10-NWO-FG
$111.77Attribute: FS7402-10-08-10-NWO-FG (10MFS-08...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 1-14 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B2 | 1/2-14 |
| THREAD SPECIFICATION B2 | BS 5200 |
| THREAD TYPE B3 | MALE FACE SEAL O-RING |
| THREAD SIZE B3 | 1-14 |
| THREAD SPECIFICATION B3 | SAE J1453 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7402-12-12-12-NWO-FG
$82.94Attribute: FS7402-12-12-12-NWO-FG (12MFS-12...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 1-3/16-12 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B2 | 3/4-14 |
| THREAD SPECIFICATION B2 | BS 5200 |
| THREAD TYPE B3 | MALE FACE SEAL O-RING |
| THREAD SIZE B3 | 1-3/16-12 |
| THREAD SPECIFICATION B3 | SAE J1453 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7402-12-16-12-NWO-FG
$208.67Attribute: FS7402-12-16-12-NWO-FG (12MFS-16...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 1-3/16-12 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B2 | 1-11 |
| THREAD SPECIFICATION B2 | BS 5200 |
| THREAD TYPE B3 | MALE FACE SEAL O-RING |
| THREAD SIZE B3 | 1-3/16-12 |
| THREAD SPECIFICATION B3 | SAE J1453 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
FS7402-16-16-16-NWO-FG
$227.61Attribute: FS7402-16-16-16-NWO-FG (16MFS-16...)
Stock Status: True
| THREAD TYPE B1 | MALE FACE SEAL O-RING |
|---|---|
| THREAD SIZE B1 | 1-7/16-12 |
| THREAD SPECIFICATION B1 | SAE J1453 |
| THREAD TYPE B2 | MALE BSPP ADJUSTABLE ORR |
| THREAD SIZE B2 | 1-11 |
| THREAD SPECIFICATION B2 | BS 5200 |
| THREAD TYPE B3 | MALE FACE SEAL O-RING |
| THREAD SIZE B3 | 1-7/16-12 |
| THREAD SPECIFICATION B3 | SAE J1453 |
| SHAPE | TEE |
| BODY MATERIAL | STEEL |
| RAW MATERIAL TYPE | STEEL FORGING |
| PLATING | CR3 |
| O-RING / SEAL MATERIAL | NBR |
| CALIFORNIA RESIDENTS | PROP-65 WARNING |
General Attributes
| Connections | Face Seal, BSP |
|---|---|
| Shape | Tee |
